Descripción

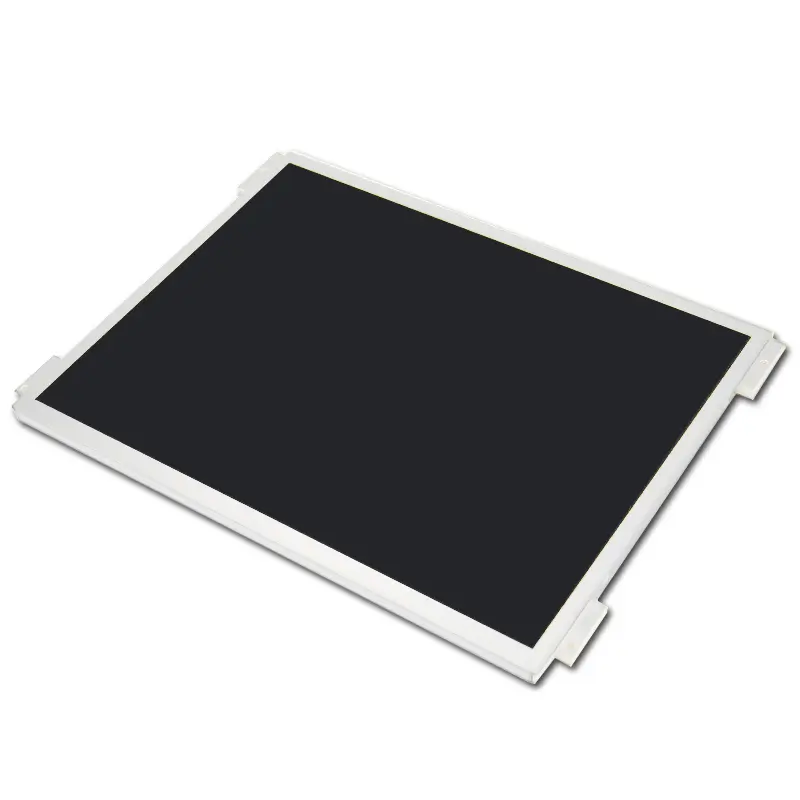

G121EAN01.6 AU Optronics LCD Display General Desription
The AUO G121EAN01.6 is a 12.1-inch a-Si TFT-LCD LCM with 1280×800 WXGA resolution (124 PPI) and RGB vertical stripe pixel format. It features a 261.12×163.2mm active area, 278×184×9.52mm outline size, and antiglare 3H hard-coated surface. With 400 cd/m² brightness, 1000:1 contrast ratio, 89/89/89/89 viewing angles (CR≥10), and AHVA normally black transmissive mode (best viewed symmetrically), it offers 25ms (Tr+Td) response time and 16.2M colors (72% NTSC). Equipped with a 50K-hour WLED backlight (with driver), it supports 60Hz and up to 240Hz via MEMC, weighs max 480g, and is designed for industrial/healthcare use. It uses a 30-pin eDP (1 Lane) interface, operates on 3.3V input, and withstands -30~85°C operating/storage temperatures.
Highlight G121EAN01.6 Display’s Features
1- Operating reliably from -30°C to 85°C, stable operation in harsh industrial settings—whether deployed in freezing warehouses, high-heat manufacturing zones.
2- Idea for industrial and healthcare applications, it integrates seamlessly into factory automation control panels, machinery monitoring systems, and industrial HMI
G121EAN01.6 Product Specifications
| Tamaño diagonal | 12.1"(Diagonal) |
|---|---|
| Número de píxeles | 1280×800 Pixels |
| Luminancia | 400 |
| Tamaño del módulo | 278(W)×184(H) ×9.52(D) |
| Área activa | 261.2(W)×163.2(H) |
| Dirección de visualización | ALL O'CLOCK |
| Ángulo de visión (U/D/R/L) | 89/89/89/89 |
| Interfaz | eDP |
| Relación de contraste | 1000 |
| Temperatura de funcionamiento | -30~85℃ |
| Temperatura de almacenamiento | -30~85℃ |
| Vida útil del LED | 50K |
| Soporte de pantalla táctil | Sin |
| Fuente de alimentación | 3.3v |
| Tipo de pantalla | TFT en color |
AUO LCD Display Custom Solutions

Optimice sus soluciones de cableado
Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

Modificaciones de PCB
Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

Mejore la experiencia del usuario con la tecnología de pantalla táctil
Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

Tapa de cristal a medida
Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.
AUO G121EAN01.6 12.1-Inch LCD Replacement FAQ
How do I confirm that I need the AUO G121EAN01.6?
Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.
Can I reuse the existing eDP cable and controller with the AUO G121EAN01.6?
For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.
How do I qualify a different panel as a replacement for the AUO G121EAN01.6?
Use 1280 × 800 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.
Is the AUO G121EAN01.6 still available, and how do I check for end of life?
Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.
Can I keep the original LCD and add touch, a cover, or a revised cable?
The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
Información complementaria
| Tamaño: | |
|---|---|
| Número de modelo | G121EAN01.6 |
| Resolución: | |
| Interfaz: | |
| Temperatura de funcionamiento: | -30℃~ 85℃ |
| Brillo (cd/m²): | 400 |
| Compatible con pantallas táctiles: | |
| Tipo de pantalla: |
