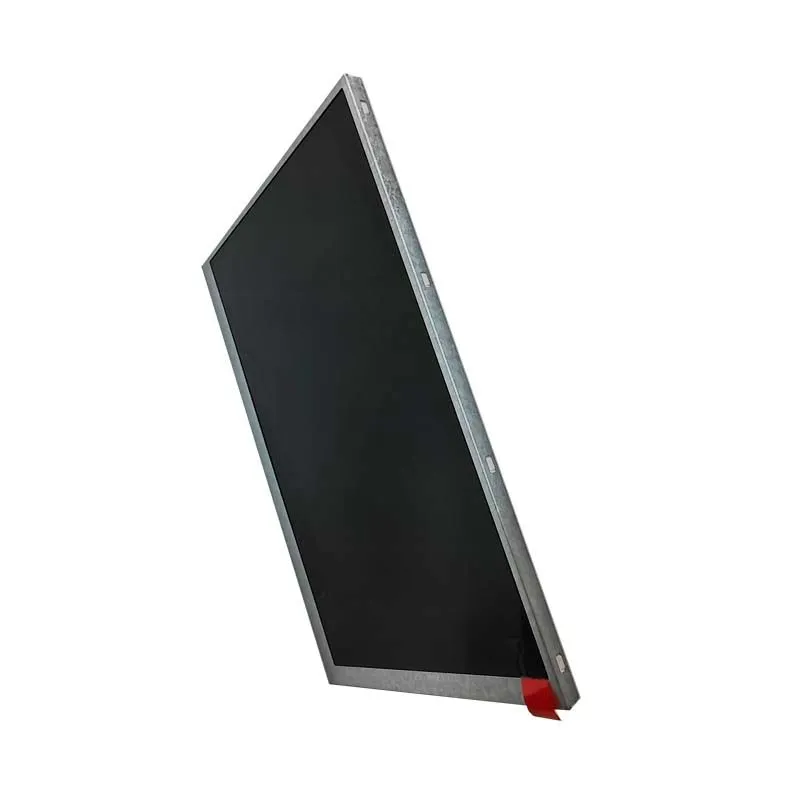

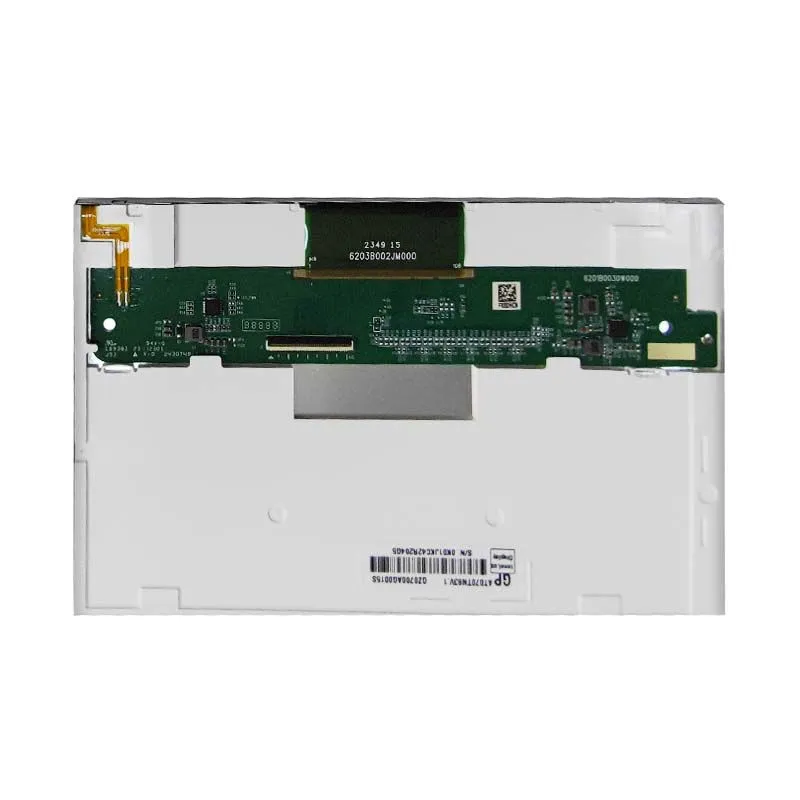

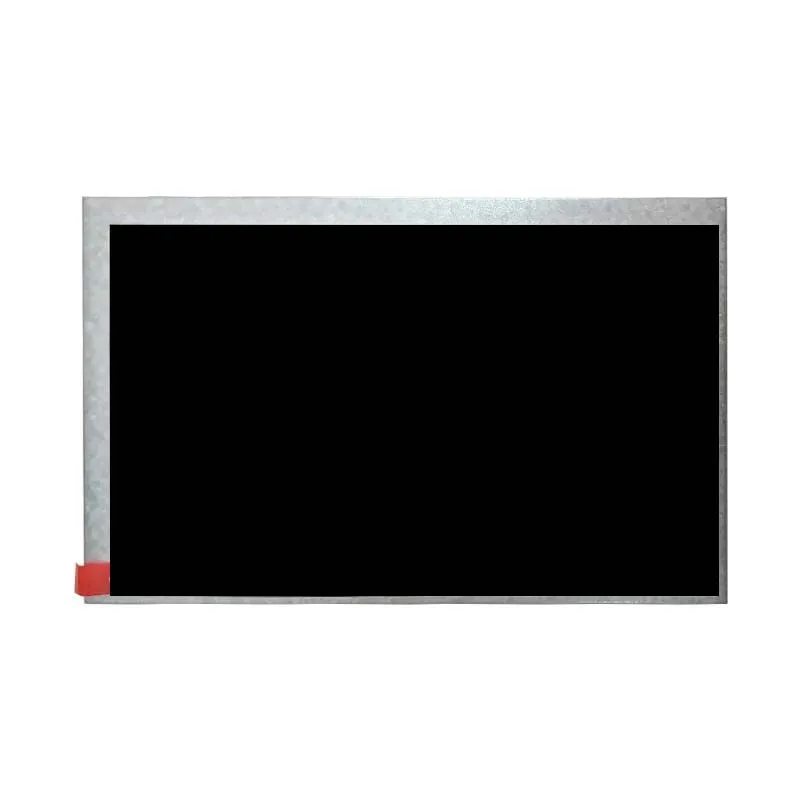

Innolux AT070TN83 V.1 7" 800×480 TN LCD 400cd/m², TTL Interface, -20°C~70°C

SKU: DS50211
Tamaño:

Número de modelo

T070TN83 V.1

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

400

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

Innolux AT070TN83 V.1 Wide-Temperature 7" Screen: 400cd/m² Brightness, 20K-Hour Lifespan, Ideal for Harsh Environments.

Solicitar precios por volumen







    Descripción

    AT070TN83 V.1 General Desription

    The Innolux AT070TN83 V.1 is a 7-inch TN color LCD engineered for precision-critical environments. With an industry-leading 1000:1 contrast ratio and 400 cd/m² brightness, it delivers razor-sharp text and graphics even in low-light conditions. Its robust TTL interface ensures stable signal transmission for industrial-grade applications, while the 3.3V low-power design minimizes energy consumption. Built to endure extreme temperatures (-20°C to 70°C) and compact dimensions (165×104×5.8mm), this non-touch display boasts a 20,000-hour LED lifespan. The 70/70/50/70 viewing angle and 800×480 resolution make it ideal for multi-orientation installations requiring reliability and clarity.



    Aplicación y rendimiento

    Perfect for medical imaging systems, laboratory analyzers, and industrial HMIs, the AT070TN83 V.1 excels in environments demanding visual precision. The 1000:1 contrast ratio enhances grayscale differentiation for X-ray monitors or semiconductor inspection tools. Its TTL compatibility suits legacy factory robots, while the wide temperature range supports cold-chain logistics displays and desert solar inverters. The slim 5.8mm profile integrates seamlessly into portable diagnostic devices, smart home control panels, and aviation maintenance terminals. With 400 cd/m² brightness, it remains readable in dimly lit operating rooms or dusty warehouse dashboards, offering a future-proof solution for automation and IoT edge devices.

    7.0" Product Specifications

    Tamaño diagonal 7.0"
    Número de píxeles 800×480
    Luminancia 400
    Tamaño del módulo 165×104×5.8
    Área activa 152.4×91.44
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 70/70/50/70
    Interfaz TTL
    Relación de contraste 1000:1
    Temperatura de funcionamiento -20~70℃
    Temperatura de almacenamiento -30~80℃
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3v
    Tipo de pantalla TFT en color

    Innolux LCD Display Soluciones a Medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux AT070TN83 V.1 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux AT070TN83 V.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing TTL cable and controller with the Innolux AT070TN83 V.1?

    For the listed TTL interface, match signal levels, timing and every connector pin before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux AT070TN83 V.1?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux AT070TN83 V.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
