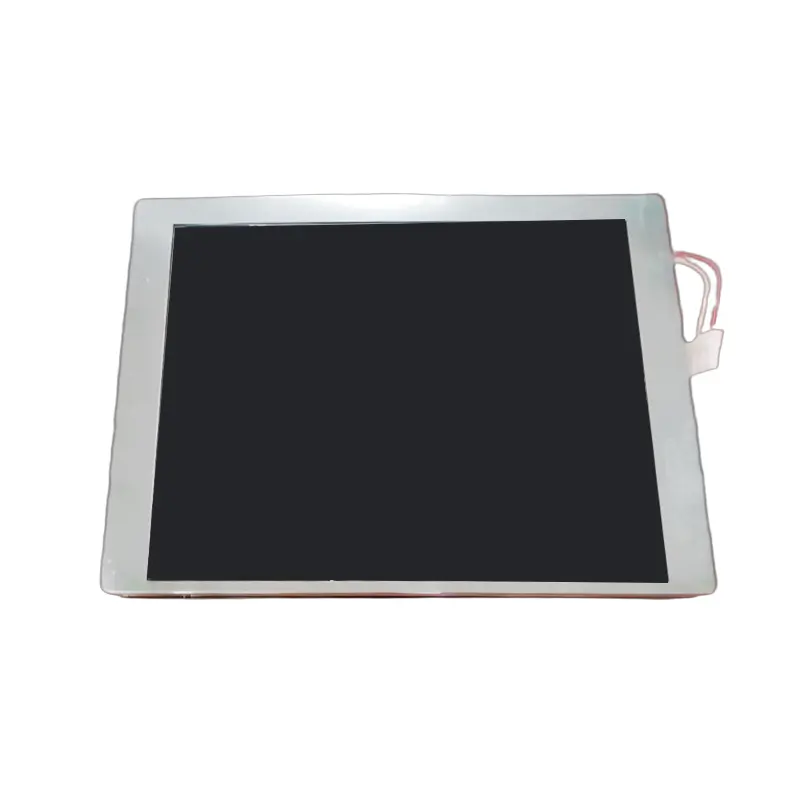

Innolux G070ACE-LH2 TFT Screen 7 inch with High Operation Temperature

SKU: DS50290
Tamaño:

Número de modelo

G070ACE-LH2

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

Innolux G070ACE-LH2 TFT Screen, 7 inch, 800x480, LVDS 30 pin, -30 ~ 85 °C Op temp for Industrial. In mass production, available in stock

Solicitar precios por volumen







    Descripción

    Innolux G070ACE-LH2 TFT Screen General Desription

    Innolux G070ACE-LH2 7-inch TFT-LCD Panel: Features 800×480 WVGA resolution (133 PPI, RGB vertical stripe), 152.4×91.44mm active area, and 170×110×9.35mm outline with antiglare/hard coating (3H); offers 500 cd/m² brightness, 800:1 contrast ratio, AAS normally black transmissive mode, and 89°/89°/89°/89° wide viewing angles (CR≥10). Supports 60Hz refresh rate with MEMC for 120Hz/240Hz compatibility, 262K/16.7M color depth, 13/12ms response time, and 50K-hour WLED backlight (with driver). It uses LVDS (1 ch, 6/8-bit, 30-pin) interface, 3.3V input, and suits industrial applications with -30~85°C operation (-40~90°C storage), no touchscreen(Can be customized).



    Why choose us?

    1)Quality Guarantee: Original A-grade Innolux lcd.
    2)Door to Door Shipping: leading time 3-5 days, shipped by DHL or FEDEX.
    3)Reliable after sale-service: we have our own lcd factory, and engineering team to more efficiently and accurately resolve your screen-related issues.

    7" Product Specifications

    Tamaño diagonal 7 inch
    Número de píxeles 800×480
    Luminancia 500
    Tamaño del módulo 170×110×9.35
    Área activa 154.4×91.44
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 89/89/89/89
    Interfaz LVDS 30
    Relación de contraste 800 : 1
    Temperatura de funcionamiento -30 ~ 85 °C
    Temperatura de almacenamiento -40 ~ 90 °C
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3V
    Tipo de pantalla TFT en color

    Innolux G070ACE-LH2 Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux G070ACE-LH2 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G070ACE-LH2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G070ACE-LH2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G070ACE-LH2 compare with the AUO G070VAN01.1?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists −30 °C to +85 °C for the Innolux panel and −20 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G070VAN01.1

    Is the Innolux G070ACE-LH2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G070ACE-LH2

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -30℃~ 85℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
