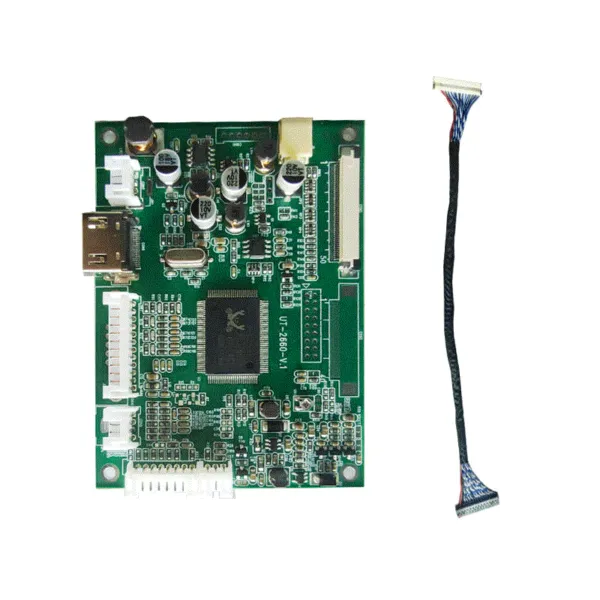

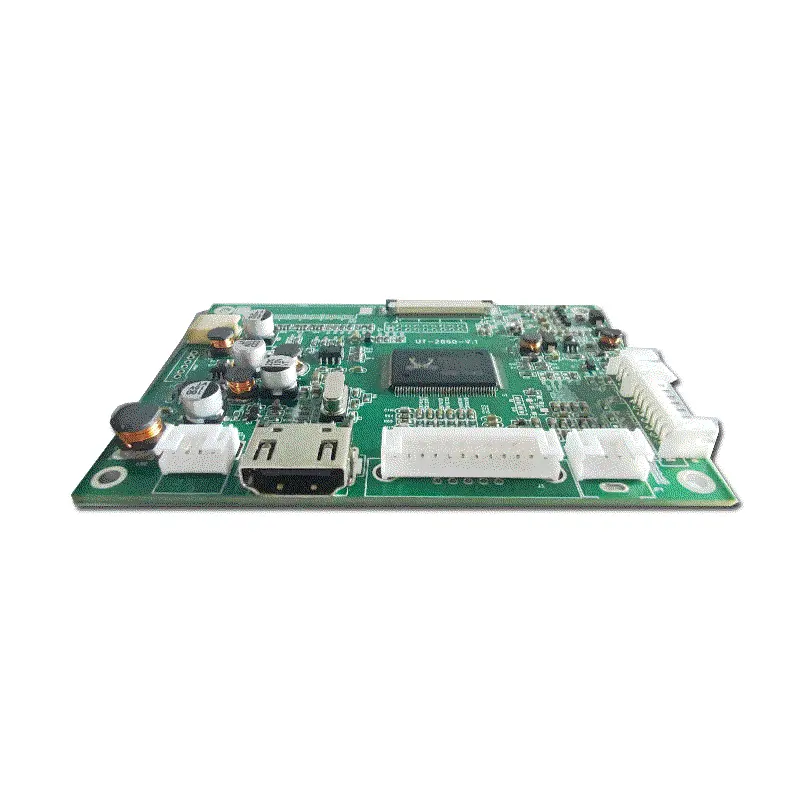

UT-2660V.1 TFT Driver Board 1280*800 with VGA/HDMI/CVBS1/CVBS2

SKU: DS40037
Número de modelo

UT-2660V.1

Maximum supported resolution

1280*800

Model Source

HDMI/VGA/CVBS1/CVBS2

Output Interface

LVDS

The JC-2513A TFT Driver Board is a high-performance driver board that can accurately drive TFT screens. It has high stability and compatibility and can be widely applied to various display devices.

Solicitar precios por volumen







    Descripción

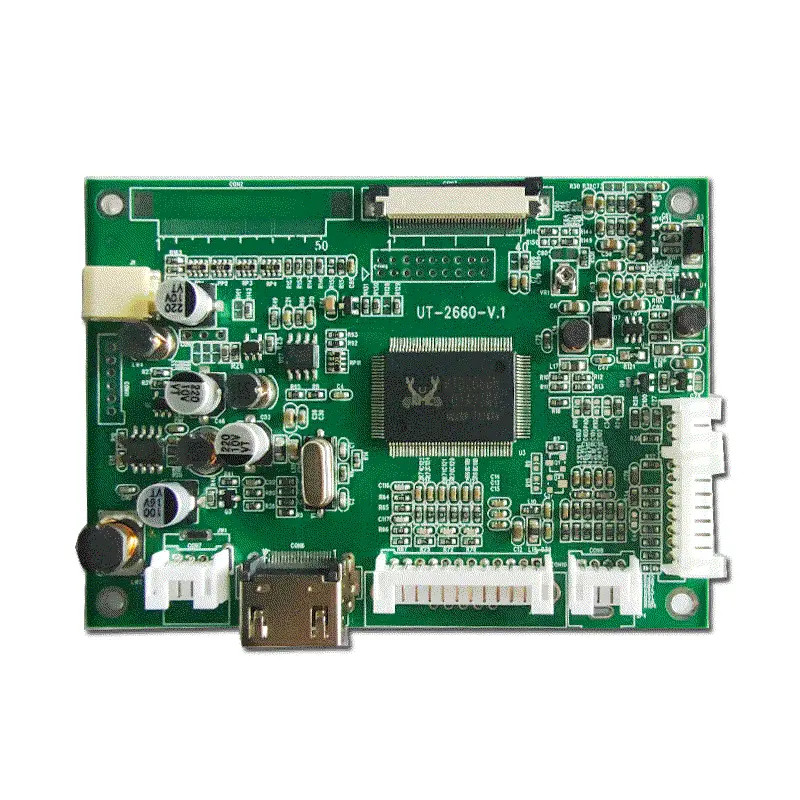

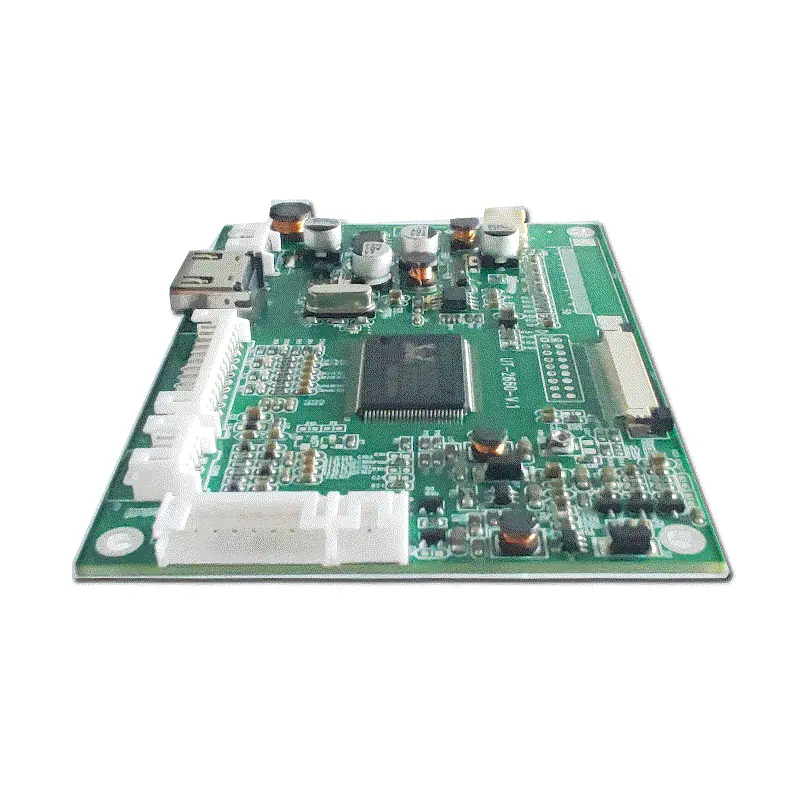

    UT-2660V.1 TFT Driver Board

    The UT-2660V.1 TFT Driver Board stands out as a top-tier, high-performance driver board. It exhibits outstanding prowess in accurately driving TFT displays. Boasting an advanced and sophisticated circuit design, this board ensures data is transmitted with remarkable efficiency and stability. As a result, it demonstrates exceptional compatibility, making it a versatile and reliable choice for a wide range of applications involving TFT displays

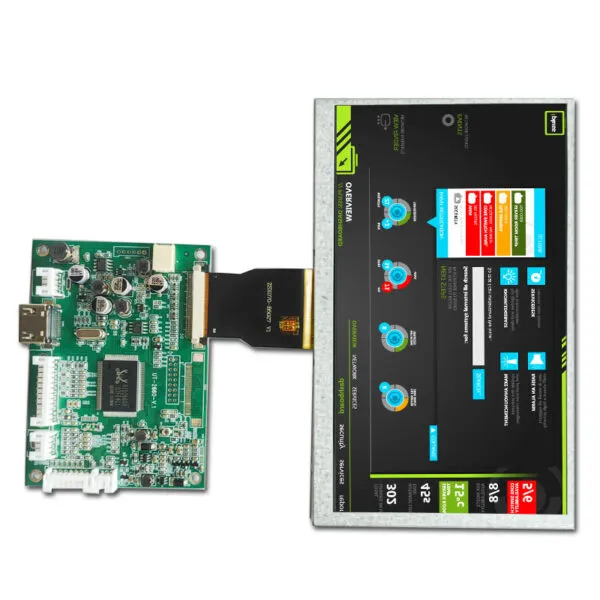

    Scope of Application:

    TTL: Applicable to the inspection of driver boards for liquid crystal display modules such as EJ050NA - 01G, AT070TN92, AT070TN94, AT080TN64, AT080TN52, EJ080NA - 05A, EJ080NA - 05B, TM080RDH01, and AT090TN12.
    LVDS: Applicable to the inspection of high - definition 40PIN liquid crystal display module driver boards such as EJ070NA - 01J, N070LGE - L41, HJ070NA - 13A, HJ070NA - 13B, EJ070NA - 01F, ZJ070NA - 01P, NJ070NA - 23A, P070BAG - CM1, TM070JDHG30, EJ080NA - 04C, HE080IA - 01D, HJ080NA - 04L, HJ080IA - 01F, TM080TDH01, and TM080TDHG01.

    ✅Product Function Description

    1 Supports HDMI, VGA, and CVBS video signal input.
    2 The power input is DC +12V.
    3 Features multi - function OSD operation.
    4 Optional remote control function is available.
    5 Auto - power - off when no signal is detected.

    ✅ Signal Input Standards

    1 HDMI: (Universal version 1.2).
    2 VGA: Supports resolutions of 800×480, 800×600, 1024×600, 1024×768, 1280×800 (refresh rate 60 - 75Hz).

    3 CVBS: 1.0Vp - p 75Ω.



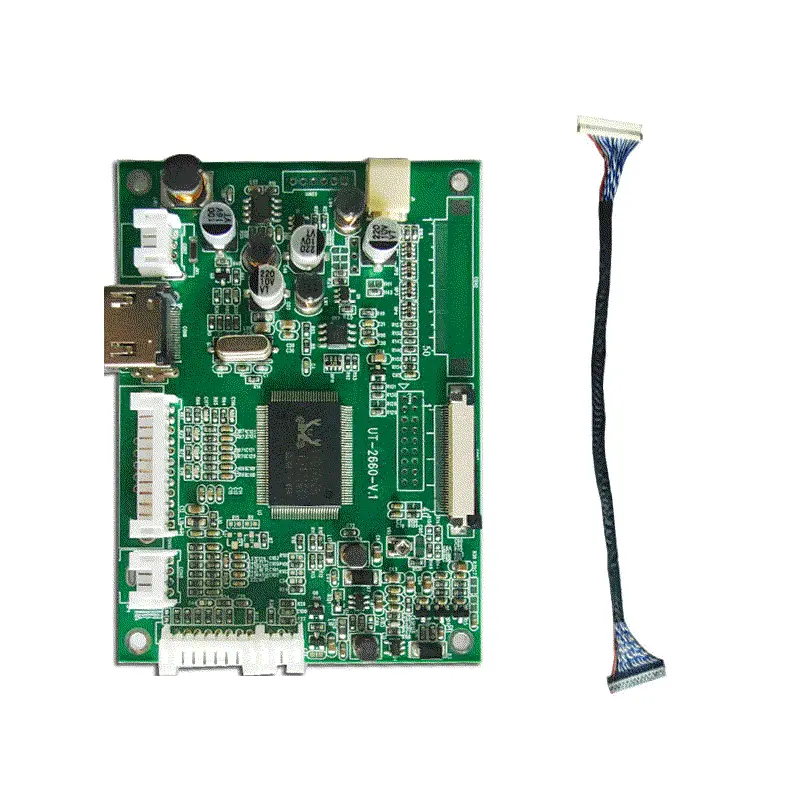

    Interface Definition
    CON3 (FPC Socket Definition) 40PIN/0.5MM
    Pin No. Function Pin No. Function Pin No. Function Pin No. Function
    1 VCOM 11 RXIN1- 21 RXIN3+ 31 LED-
    2 VDD 12 RXIN1+ 22 GND 32 LED-
    3 VDD 13 GND 23 NC 33 L/R
    4 NC 14 RXIN2- 24 NC 34 U/D
    5 RESET 15 RXIN2+ 25 GND 35 VGL
    6 STBYB 16 GND 26 NC 36 NC
    7 GND 17 RXCLKIN- 27 DIMO 37 NC
    8 RXINO- 18 RXCLKIN+ 28 SELB 38 VGH
    9 RXINO+ 19 GND 29 AVDD 39 LED+
    10 GND 20 RXIN3- 30 GND 40 LED+
    CON6 (HDMI Input) Interface
    Pin No. Function Pin No. Function
    1 TMDS Data 2+ 11 TMDS Clock Shield
    2 TMDS Data Shield 12 TMDS Clock -
    3 TMDS Data 2- 13 CEC
    4 TMDS Data 1+ 14 NC
    5 TMDS Data Shield 15 SCL
    6 TMDS Data 1- 16 SDL
    7 TMDS Data 0+ 17 DDC/CEC GND
    8 TMDS Data Shield 18 +5V
    9 TMDS Data 0- 19 Hot Plug Detect
    10 TMDS Clock+



    https://displaysell.com/wp-content/uploads/2025/03/JC-2513A(1).pdf

    LCD Controller Board FAQ

    Can this controller board drive my existing LCD panel?

    Listed source inputs include HDMI and VGA. Check both ends independently against the source and LCD documentation. Send the complete LCD part number and connector photos. Check the panel supply and pinout, backlight power and enable or dimming signals before applying power.

    TFT LCD datasheet integration guide

    Will this board support the resolution and refresh rate my source needs?

    Treat 1280 × 800 as the listed maximum supported resolution. Check that the board firmware actually offers your panel’s exact timing and refresh. Check whether the source mode is accepted and whether the LCD will be driven at its native mode. Include the exact source and target mode in your request.

    Should I use this board or order a controller already configured for my LCD?

    Use UT-2660V.1 as the listed controller reference, then compare the full part number and revision on the label. Compare firmware availability, cable and backlight changes, mounting space and time to validate your panel. A matched board and cable can be easier to reproduce when the same LCD revision will be used in production.

    Can the board be configured with a matched cable or panel firmware?

    Send the complete panel label and datasheet, source input, panel connector and backlight details. We can review an available board and cable combination and confirm what firmware configuration is required.

    What determines pricing and lead time for an LCD controller and cable set?

    Include the full LCD model, input/output timing, cable requirement, sample quantity and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
