10.1 inch Custom LCD Screen MIPI 800*1280

UGS : DS20082
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

10.1 inch Custom LCD Screen, with resolution 800*1280 Pixels, Serial MIPI Interface, supply global display solutions

Demande de tarification au volume







    Description

    10.1" Custom LCD Screen Features

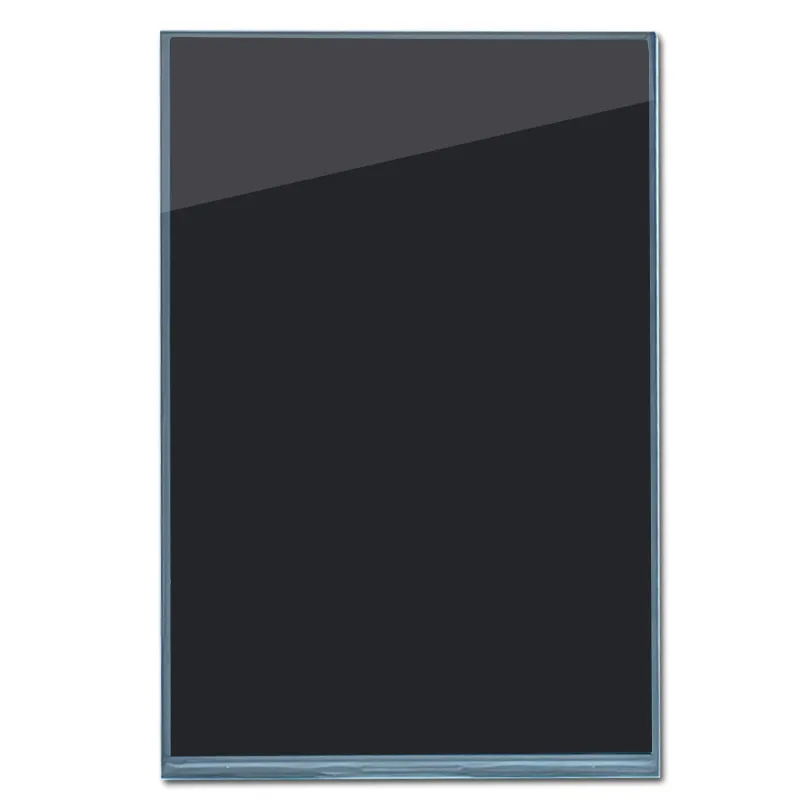

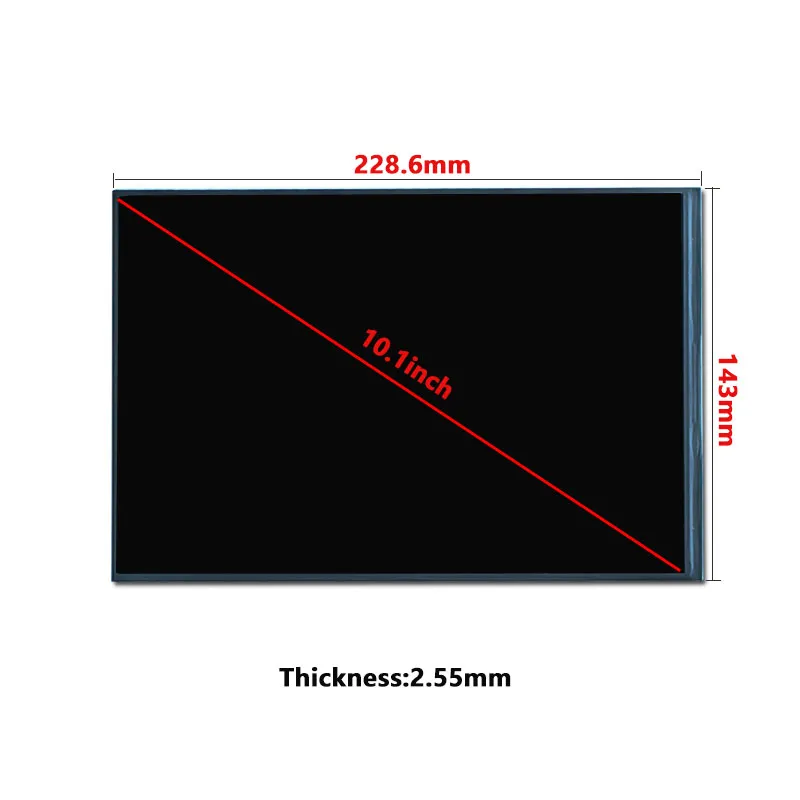

    This 10.1 inch Panel TFT LCD offers resolution with 800x1280 pixels, making it suitable for a range of applications in consumer electronics and industrial settings. It offers an active area of 135.36mm x 216.58mm and compact dimensions of 143mm x 228.6mm x 2.55mm, ensuring easy integration into various devices.



    10.1" TFT Panel with MIPI Interface

    The MIPI is a widely adopted protocol designed for mobile and portable devices, offering high-speed data transfer while maintaining low power consumption. Its ability to support high data rates is essential for delivering smooth, high-resolution images and videos, Additionally, MIPI's design reduces power requirements compared to other interfaces, making it ideal for battery-operated devices and extending overall battery life.

    10.1" TFT-LCD Product Specifications

    Numéro de modèle  90-10125-BS1
    Taille 10.1
    Résolution 800*1280
    Dimension de l'ébauche 143*228.6*2.55
    Zone active 135.36*216.58
    Luminosité (cd/m²) 350
    Interface MIPI
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage Character LCD

    10.1" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    10.1-Inch 800 × 1280 MIPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 10.1-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 1280 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    350

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
