3.2 inch Oled Display 262x928 Bar Type Amoled

UGS : DS10019
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

3.2 Oled display  Resolution 262*928  Bar Type Amoled display  MIPI   Interface  Smart Home Appliance

Demande de tarification au volume







    Description

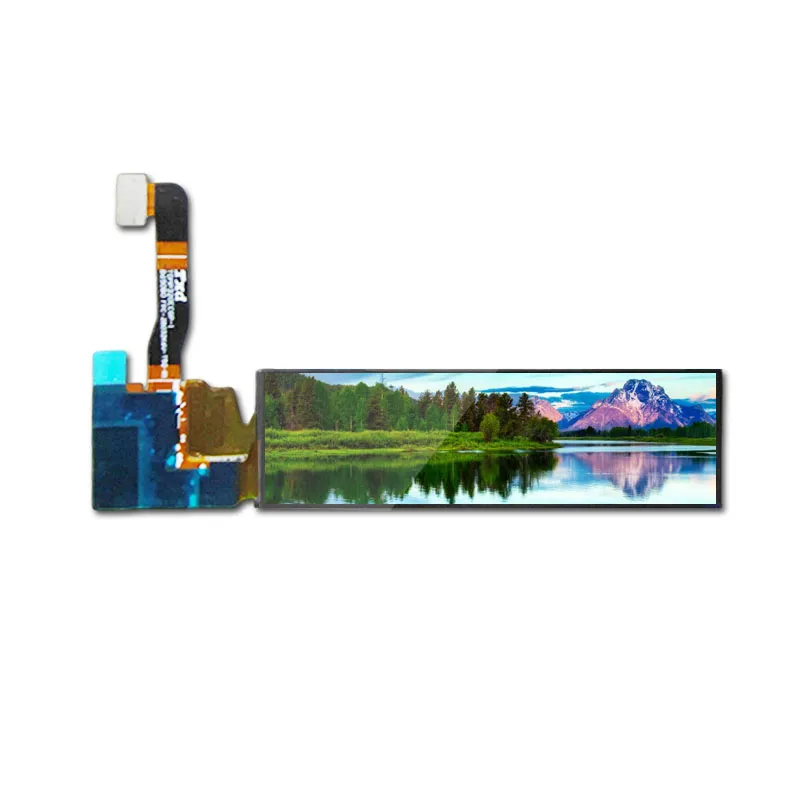

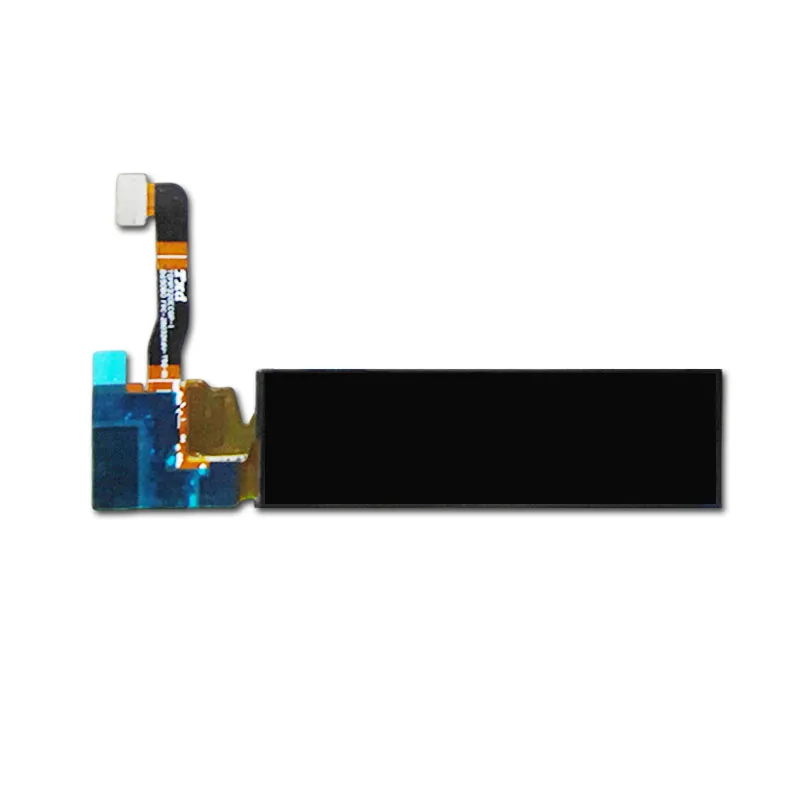

    3.2" Amoled Displays Features

    This 3.2 inch color oled display employs AMOLED (Active Matrix Organic Light Emitting Diode) technology, renowned for its vibrant colors, deep blacks, and high contrast ratios. It features MIPI (Mobile Industry Processor Interface) for high-speed communication with various controllers. The display supports ALL O'clock viewing directions, ensuring consistent visibility from multiple angles without color distortion. With a typical luminance of 500 cd/m², it ensures good visibility in diverse lighting conditions. Additionally, it boasts an impressive contrast ratio of 100,000, providing exceptional depth and detail to enhance the overall viewing experience.



    3.2" Amoled Display Application

    This color oled display is well-suited for wearable technology, such as smartwatches and fitness trackers, where a small, high-resolution interface is essential for user interaction. It is also ideal for automotive displays, particularly in dashboard interfaces, where high display quality is crucial for navigation and information systems, even in limited spaces. Additionally, the display serves as an excellent option for embedded systems and custom electronics projects, making it perfect for DIY endeavors that require a compact, high-quality display for effective user engagement.

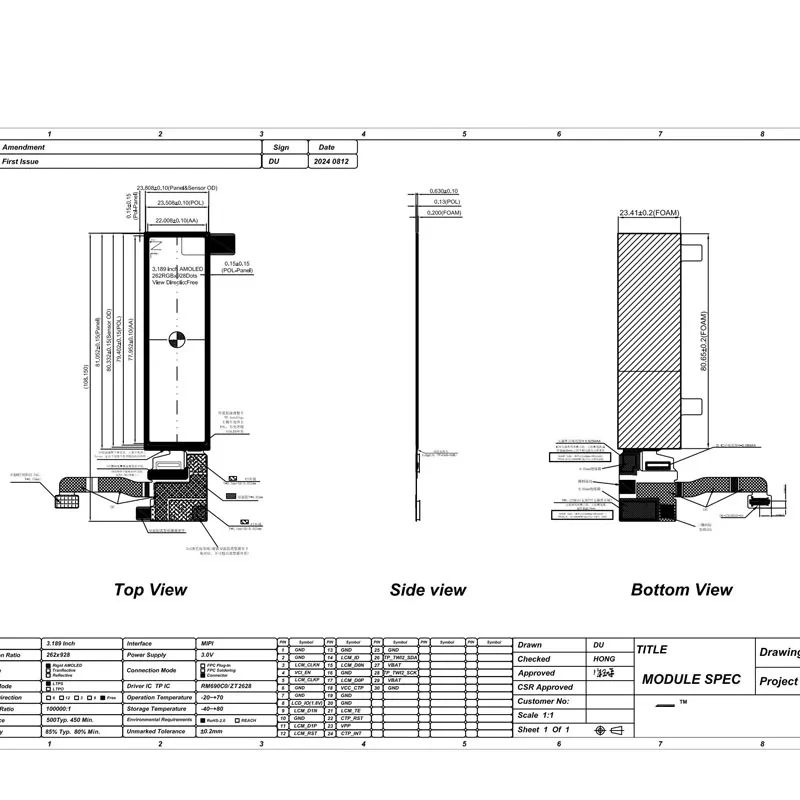

    3.2" Amoled Display Product Specifications

    LCD Size(inch) 3.2(Diagonal)
    Number of Pixels 262(h)*928(v)
    Pixel Pitch(um) 84(H)X84(V)
    Dimension de l'ébauche 23.808(W) ×81.052(H) ×0.83(D)
    Zone active 22.008(H) ×77.952(V)
    Display type AMOLED
    Interface MI PI
    View direction ALL
    Alimentation électrique 3.3v
    Rapport de contraste 100000
    Operation Temperature -20℃~70℃
    Luminance 500 (TYP.)
    CI du conducteur RM690C0
    - -
    - -

    3.2" Amoled Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    3.2-Inch 262 × 928 Stretched Bar AMOLED Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 3.2-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 262 × 928 pixel layout. If you mount the long edge horizontally, try a 928 × 262 content layout and verify rotation on the intended host. Keep the panel’s native timing separate from the artwork orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    500

    Prise en charge de l'écran tactile :

    Type d'affichage :
