3.5 inch Colour TFT Display 320*480 MCU

UGS : DS20028
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

3.5 tft lcd display 320*480 Pixels  Serial MCU Interface  45 pin FFC ZIF Connection  Customized touch screen

Demande de tarification au volume







    Description

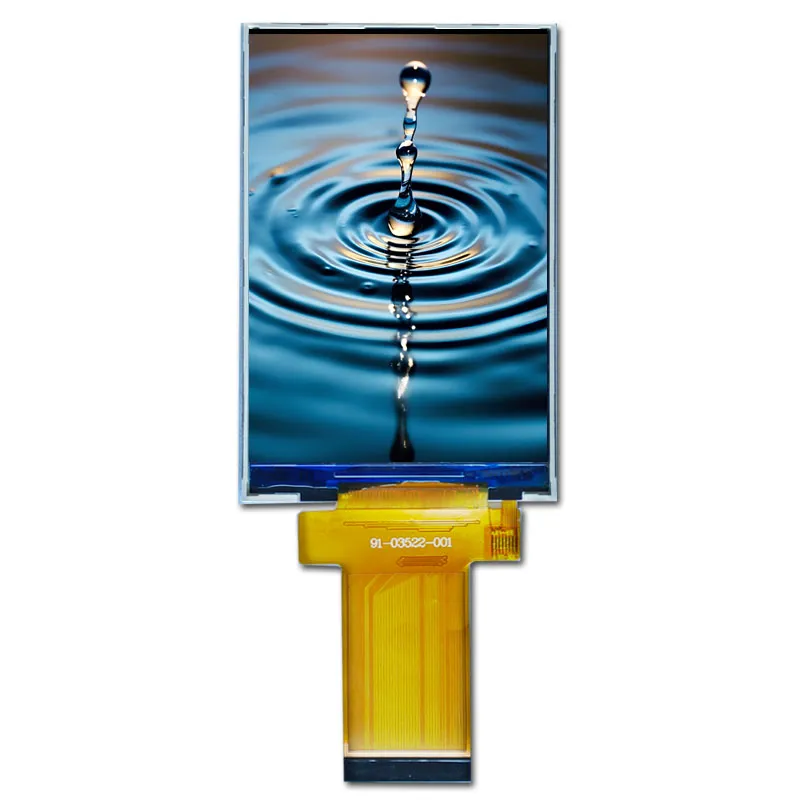

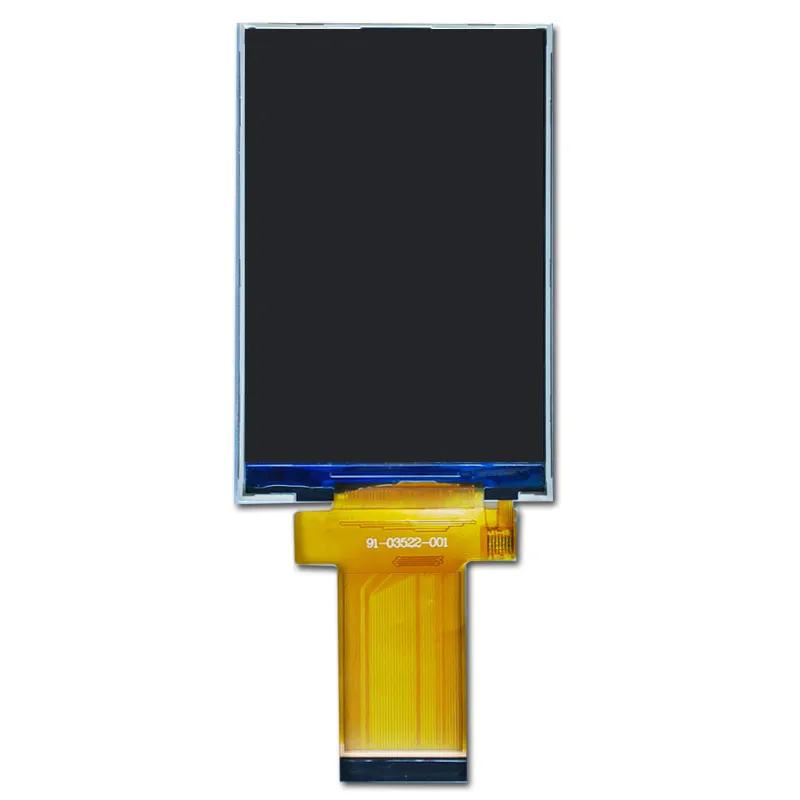

    3.5" TFT Module Overview

    The 3.5 inch Colour TFT Display features a resolution of 320 x 480 pixels, providing sharp images within an active area of 48.96 mm x 73.44 mm. Its compact outline dimensions of 55.5 mm x 84.95 mm x 4.8 mm ensure easy integration, while an 80° viewing angle in all directions allows for excellent visibility. With a brightness of 350 cd/m² and a contrast ratio of 1000:1, it delivers vibrant visuals. The LED has a lifespan of 20,000 hours, and the display operates effectively in temperatures ranging from -20°C to 70°C, with storage capabilities from -30°C to 80°C, making it suitable for diverse environments.



    3.5" TFT LCD with High Contrast Ratio

    The contrast ratio of a display is crucial for determining the difference in brightness between the brightest white and the darkest black it can produce. With a contrast ratio of 1000:1, this 3.5-inch TFT LCD display offers vibrant colors and sharp images, enhancing overall image quality and making subtle shades more distinct. It also improves the viewing experience by performing well in various lighting conditions, reducing glare and ensuring clarity, which is particularly beneficial for applications in bright environments.

    3.5" TFT-LCD Product Specifications

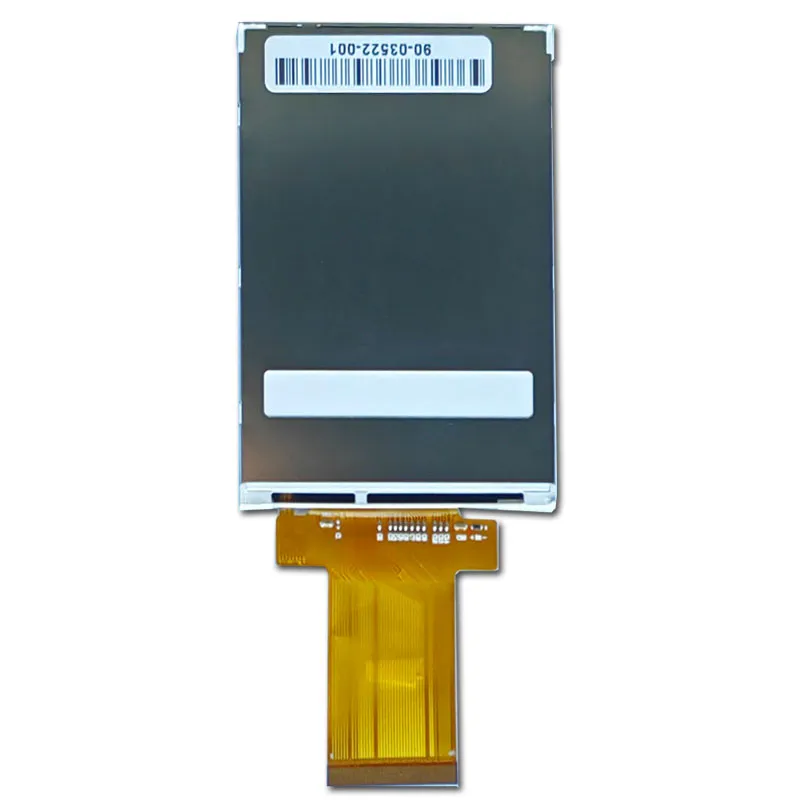

    Numéro de modèle  90-03522-001
    Taille 3.5
    Résolution 320*480

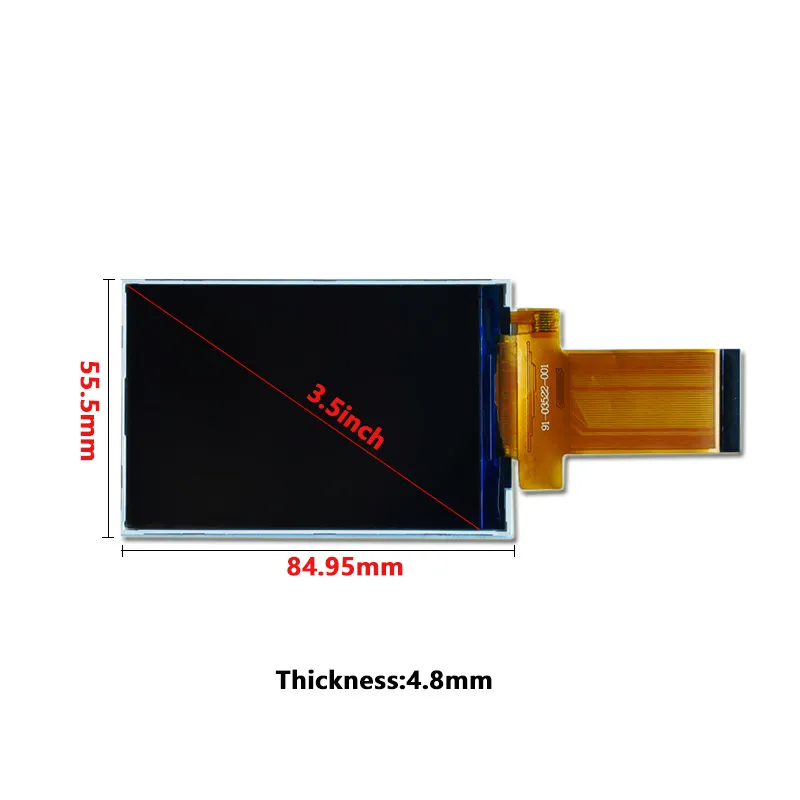

    Dimension de l'ébauche 55.5*84.96*4.8
    Zone active 48.96*73.44
    Luminosité (cd/m²) 350
    Interface MCU
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Witout
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    3.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    3.5-Inch 320 × 480 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
