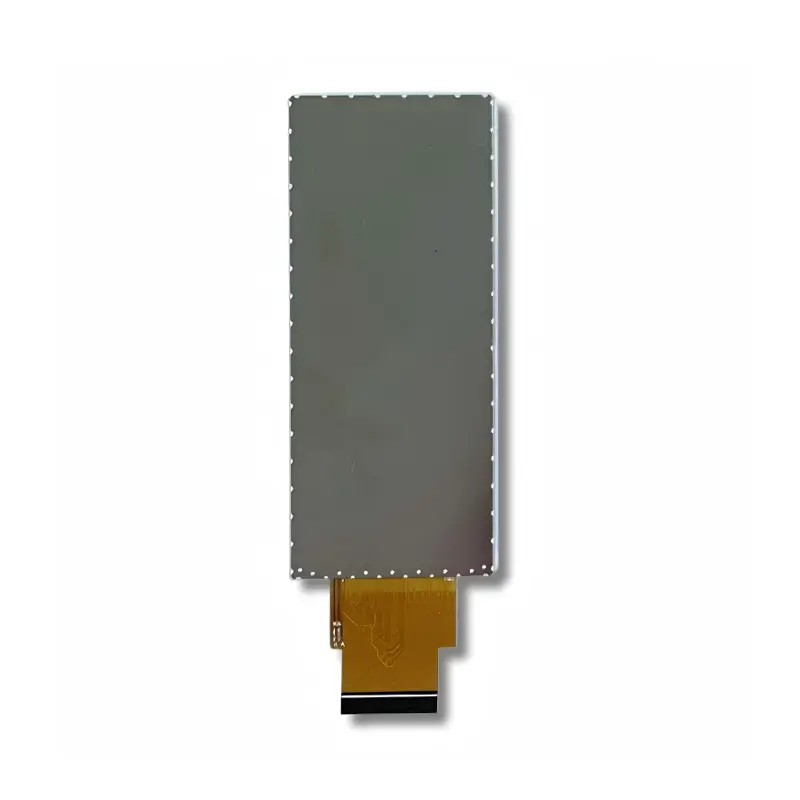

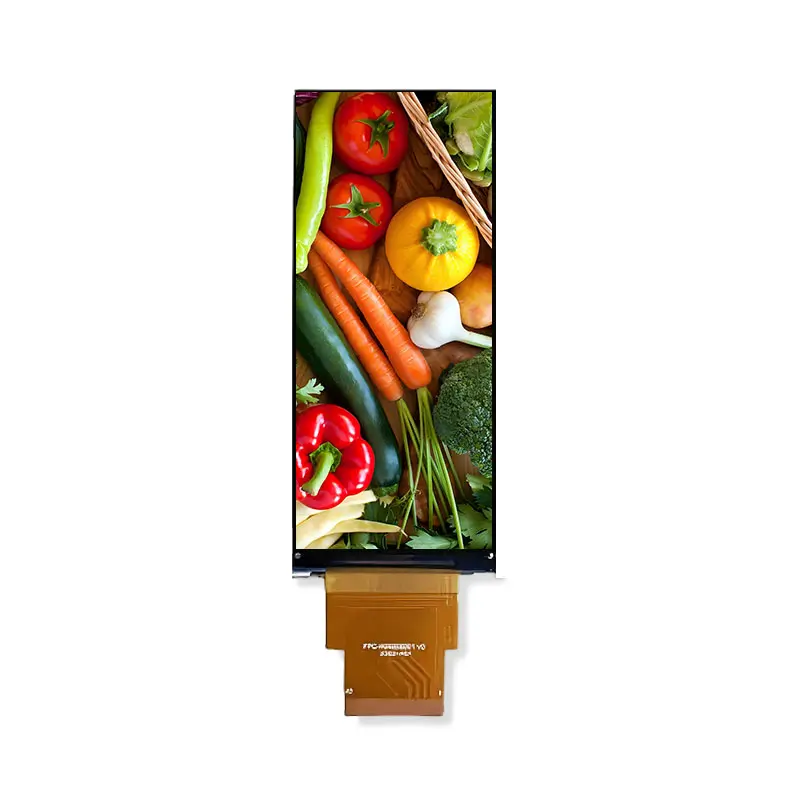

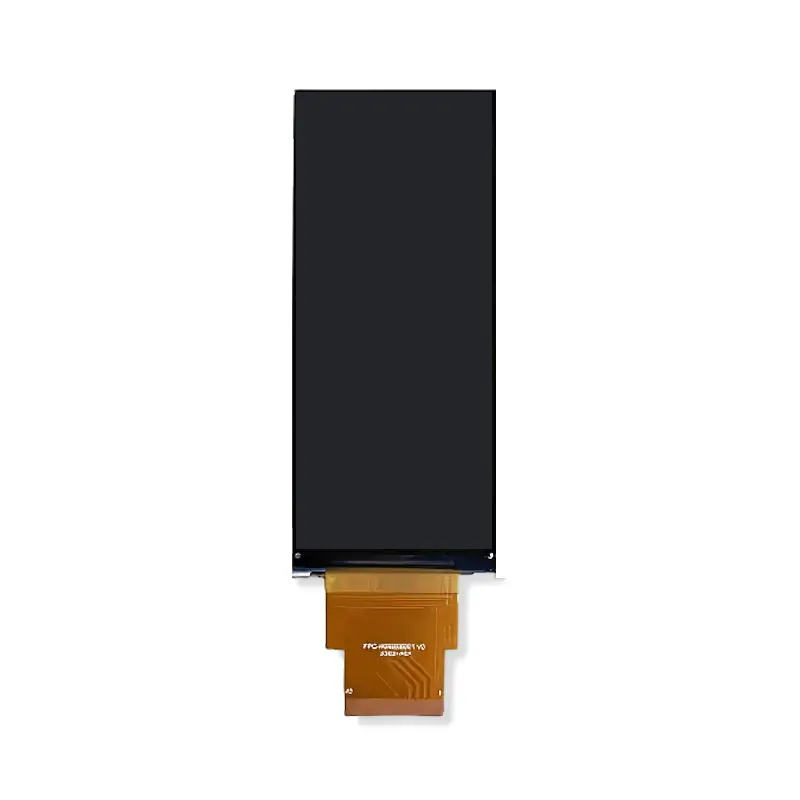

3.99" Bar LCD Display 400*960 Écran de qualité industrielle

UGS : DS20123-1
Taille :

Résolution :

Interface :

,

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

300

Prise en charge de l'écran tactile :

Type d'affichage :

Bar LCD Display 3.99 inch, resolution 400×960, Operation temperature from -20℃ to 70 ℃, Application for Industrial control, commercial, Consumer Electronics

Demande de tarification au volume







    Description

    3.99" Bar LCD Display Features

    This is a Bar LCD Display with a diagonal diameter of 3.99 inches, an AA size of 39.18×94.03mm, a module size of 41.40×102.25×2.2mm and a compact structure, a resolution of 400×960, an 85/85/85/85 IPS liquid crystal display, optional MIPI or RGB interfaces, an operating temperature of -20-70℃, and is suitable for industrial manufacturing such as industrial meters.



    What we can serve

    Customization options: We support flex cable customization, backlight brightness customization, touch screen customization, and cover glass customization. Technical support: We provide detailed technical documentation for R&D use, with engineers who have 15 years of LCD experience offering one-on-one service and 72-hour evaluation with drawing delivery. Factory-direct pricing: Flexible minimum order quantities (MOQ) available – welcome to inquire!

    3.99" TFT-LCD Product Specifications

    Numéro de modèle  90-39901-HS1
    Taille 3.99
    Résolution 400*960
    Dimension de l'ébauche 41.40×102.25×2.2
    Zone active 39.18×94.03
    Luminosité (cd/m²) 300
    Interface MIPI&RGB
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 30000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1500:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    3.99" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    3.99-Inch 400 × 960 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 3.99-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 400 × 960 pixel layout. If you mount the long edge horizontally, try a 960 × 400 content layout and verify rotation on the intended host. Keep the panel’s native timing separate from the artwork orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    The catalog mentions MIPI and RGB. Send us your host model and ask us to confirm the role and wiring of each connection on the configuration you plan to order. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    ,

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    300

    Prise en charge de l'écran tactile :

    Type d'affichage :
