Écran tactile TFT de 4,3 pouces 480*272 avec écran capacitif

UGS : DS20113
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

300

Prise en charge de l'écran tactile :

Type d'affichage :

4.3 inch TFT Touch display  With Capacitive Screen  5 point Touch  OCR Bonding  TP IC: GT911  480*272 Pixels  Serial RGB Interface

Demande de tarification au volume







    Description

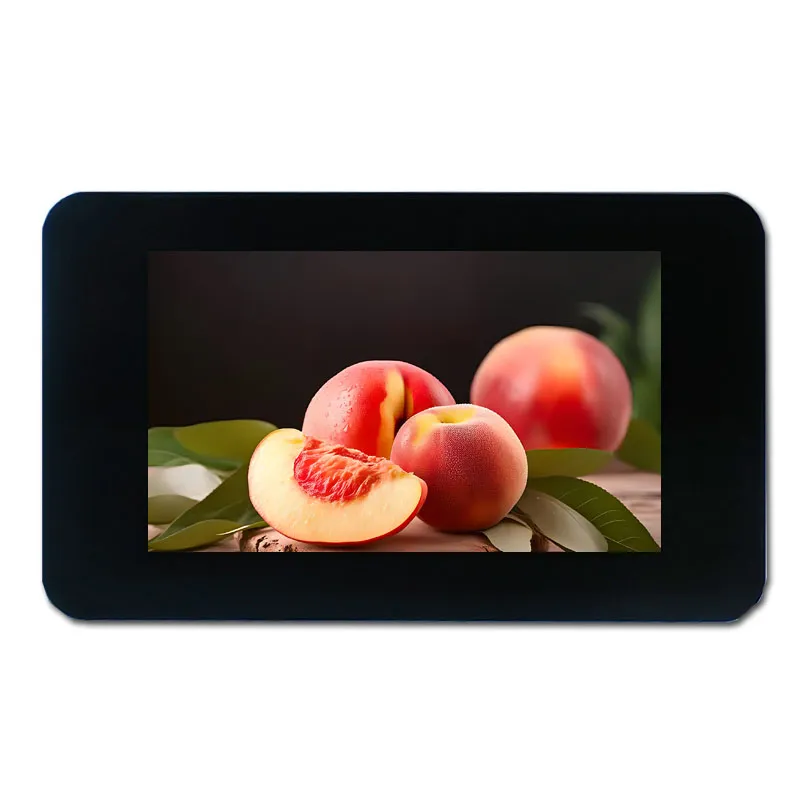

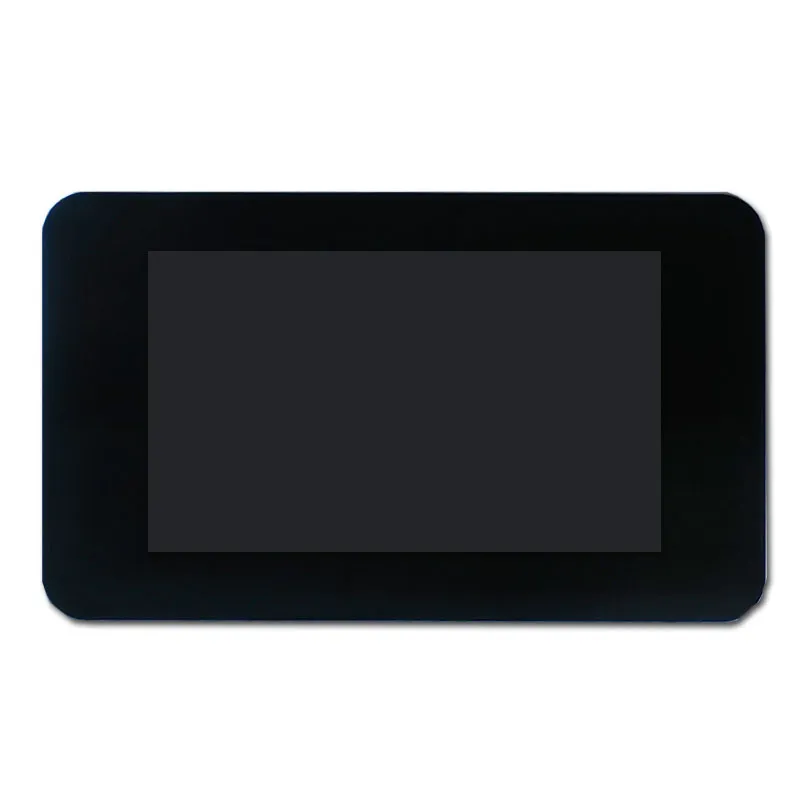

    4.3 inch TFT Touch display Features

    The 4.3 inch TFT Touch display supports an RGB 40 interface for efficient data transmission and has a 20,000-hour LED lifetime. The wide operating temperature range of -20°C to 70°C and storage range of -30°C to 80°C make it ideal for various applications, including industrial equipment, handheld devices, and consumer electronics.

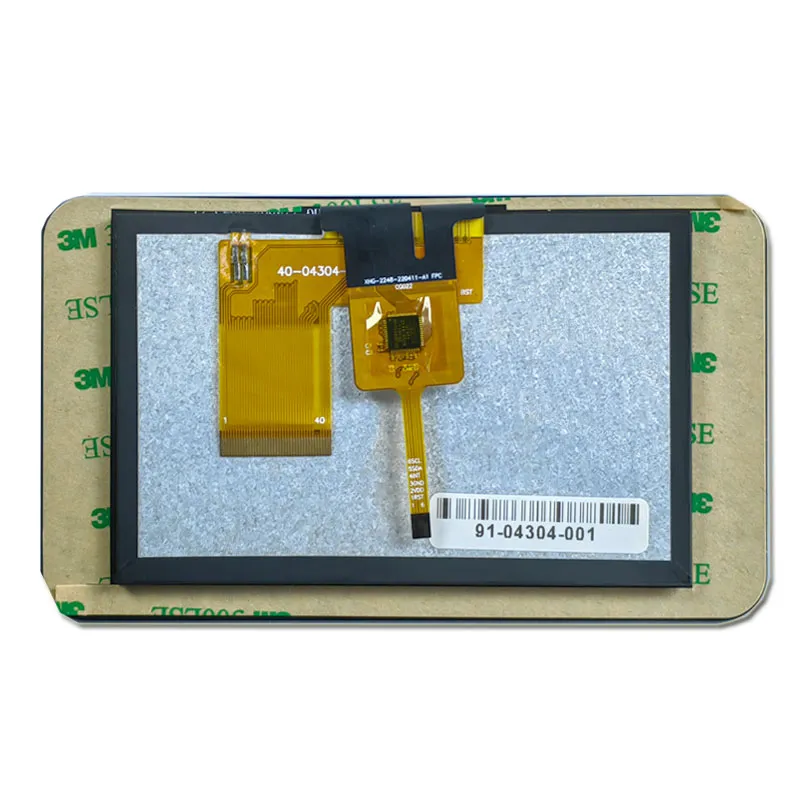

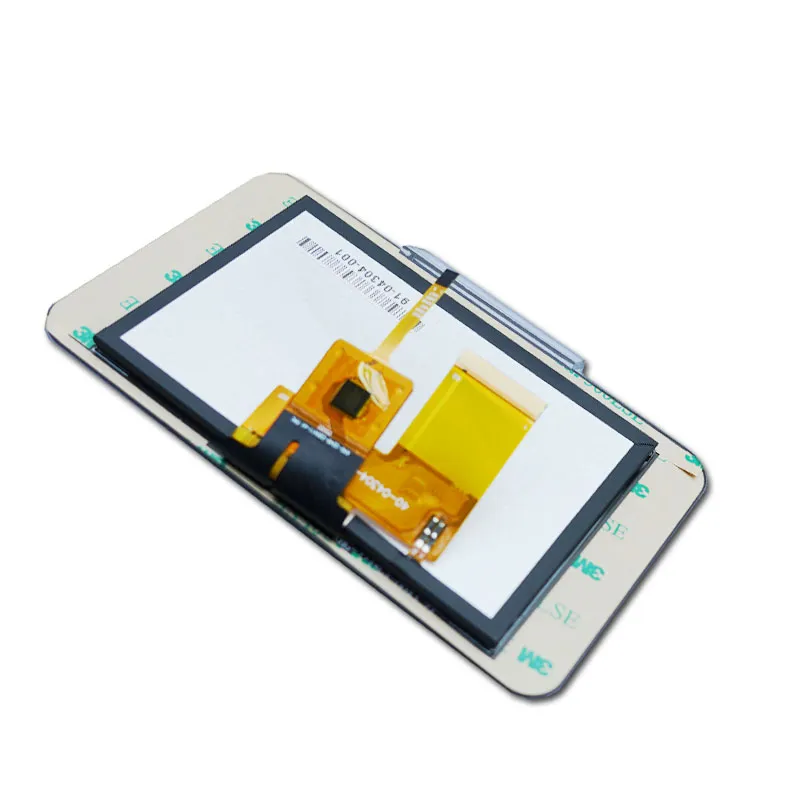

    4.3 inch TFT Touch display with Capacitive Screen

    The 4.3 inch TFT Touch display is available with a capacitive touch screen that supports 5-point multi-touch functionality. The display features OCA bonding technology, enhancing the durability and responsiveness of the touch panel. It is equipped with the TP IC GT911, ensuring accurate touch detection and smooth user interaction.

    4.3" TFT-LCD Product Specifications

    Numéro de modèle  91-04304-001
    Taille 4.3
    Résolution 480*272
    Dimension de l'ébauche 134.8*77.82*5.2
    Zone active 95.04*53.86
    Luminosité (cd/m²) 300
    Interface RVB
    Voir la direction 6 O"clock
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile capacitif
    Rapport de contraste 500:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    4.3" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    4.3-Inch 480 × 272 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4.3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 272 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées
