4 inch Bar Type TFT LCD Display 480*960 RGB Interface

UGS : DS20032
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

4 inch Bar type tft display  480*960 Pixels  Serial RGB Interface  40pin FFC Connection  Customized touch screen

Demande de tarification au volume







    Description

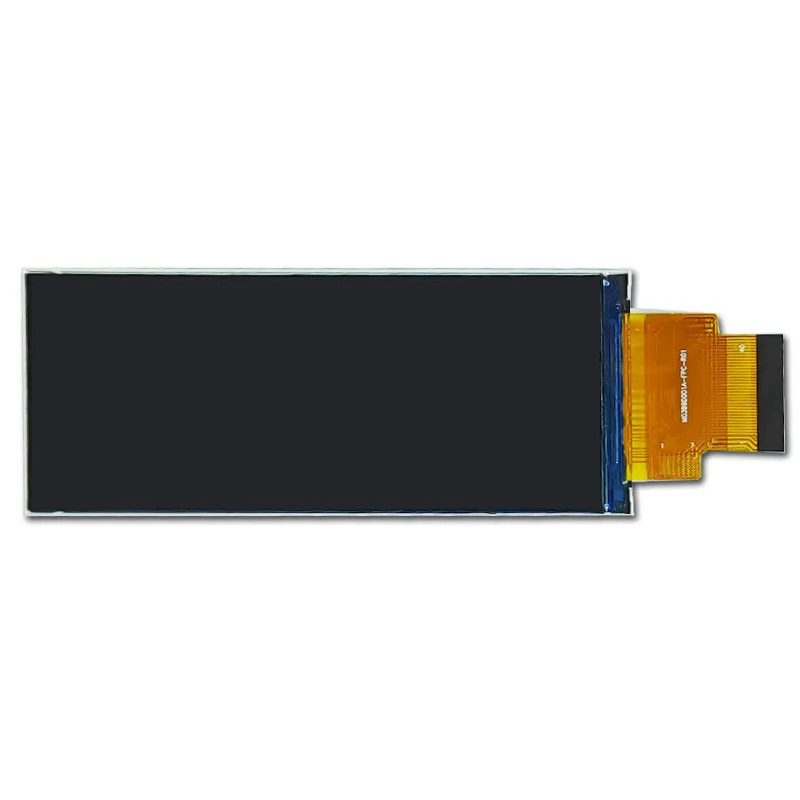

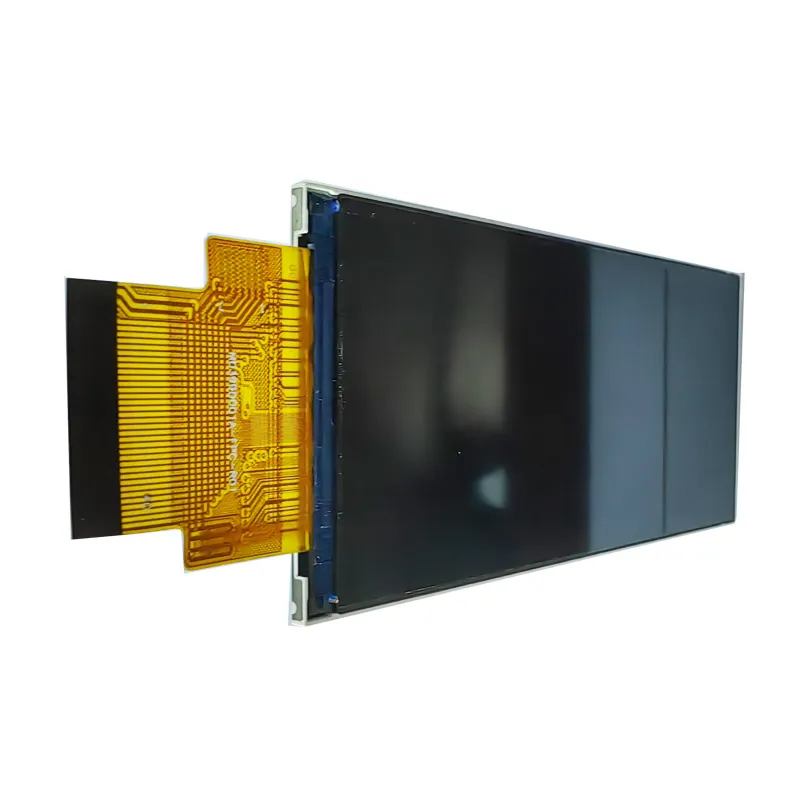

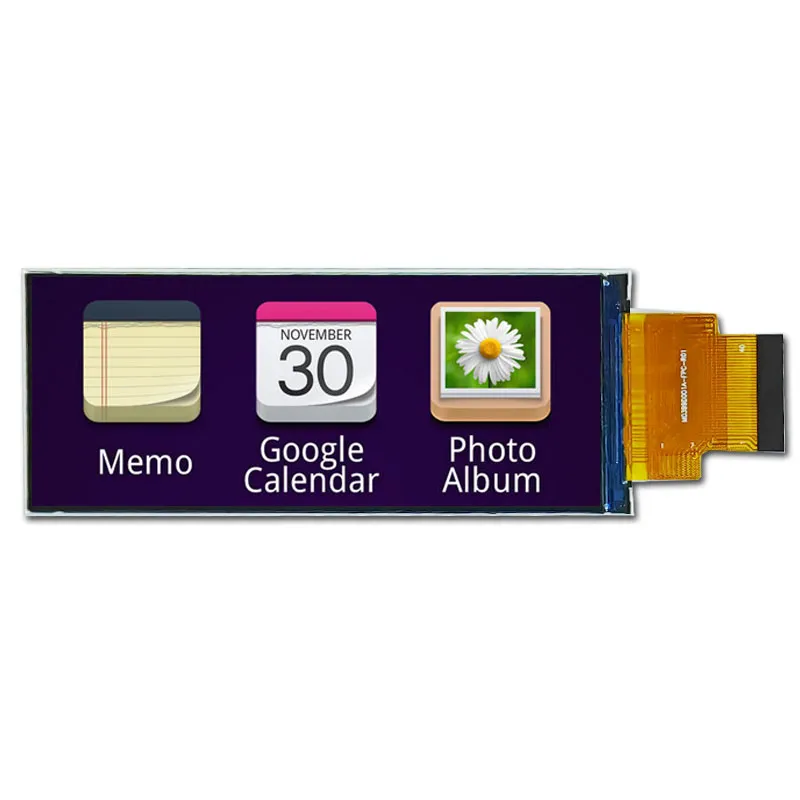

    4" Bar Type TFT LCD Overview

    The 4 inch bar type tft display, is a high-performance bar type display designed for applications requiring elongated visuals. With a resolution of 400 x 960 pixels, it provides sharp and detailed images, featuring an active area of 39.18 mm x 94.03 mm and compact dimensions of 42.9 mm x 102.08 mm x 2.15 mm. It offers an 85° viewing angle for excellent visibility and can be viewed from all directions. With a brightness of 350 cd/m², a contrast ratio of 1500:1, and a long LED lifetime of 30,000 hours, this display ensures vibrant visuals. It operates effectively in temperatures ranging from -20°C to 70°C and can be stored in conditions between -30°C and 80°C, making it reliable for various environments.



    4" TFT LCD with High Contrast Ratio

    The display's high contrast ratio of 1500:1 indicates a significant difference between the brightest whites and the darkest blacks, which is essential for rendering images with depth and detail. This ratio enhances visual clarity and sharpness, allowing for more vivid colors and distinct details, making it particularly crucial in high-precision applications. Additionally, it enables the reproduction of a wider range of colors with greater accuracy, resulting in lifelike images and improved aesthetics, making the display ideal for graphics-intensive use.

    4" TFT-LCD Product Specifications

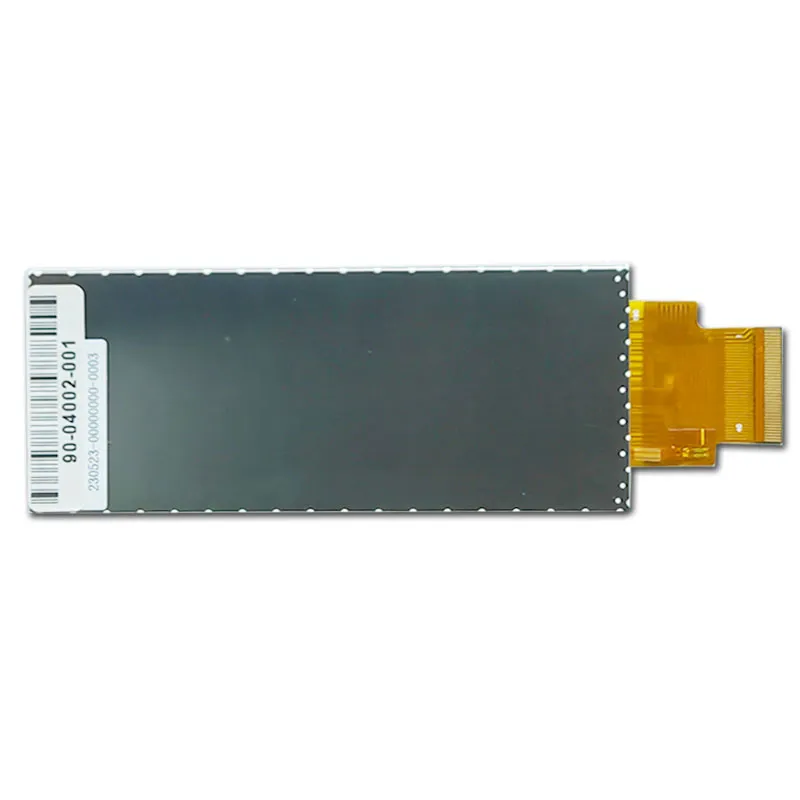

    Numéro de modèle  90-04002-001
    Taille 4.0
    Résolution 480*960
    Dimension de l'ébauche 42.9*102.08*2.15
    Zone active 39.18*94.03
    Luminosité (cd/m²) 350
    Interface RVB
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 30000
    Prise en charge de l'écran tactile Witout
    Rapport de contraste 1500:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    4.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    4-Inch Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 4-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Ask for the native pixel layout, then mock up your labels and graphics at that layout.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    350

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
