5 inch TFT LCD with Touch Screen 800*480 RGB

UGS : DS20055
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

450

Prise en charge de l'écran tactile :

Type d'affichage :

5 inch TFT LCD with Touch Screen, offering resolution 800*480 Pixel, with Serial RGB Interface  40 pin FFC connection, Low power consumption, shockproof and dustproof

Demande de tarification au volume







    Description

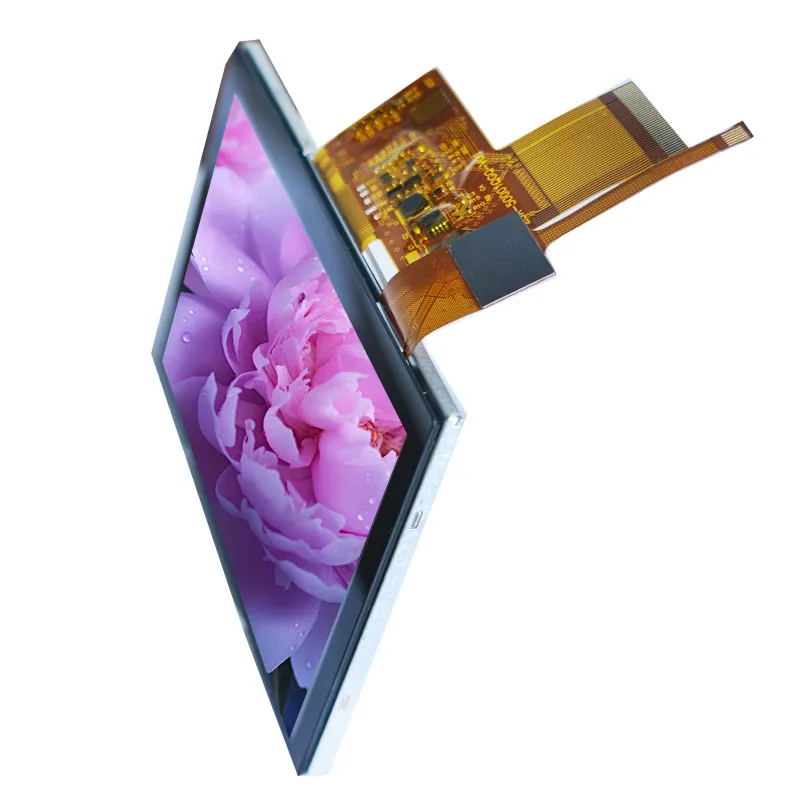

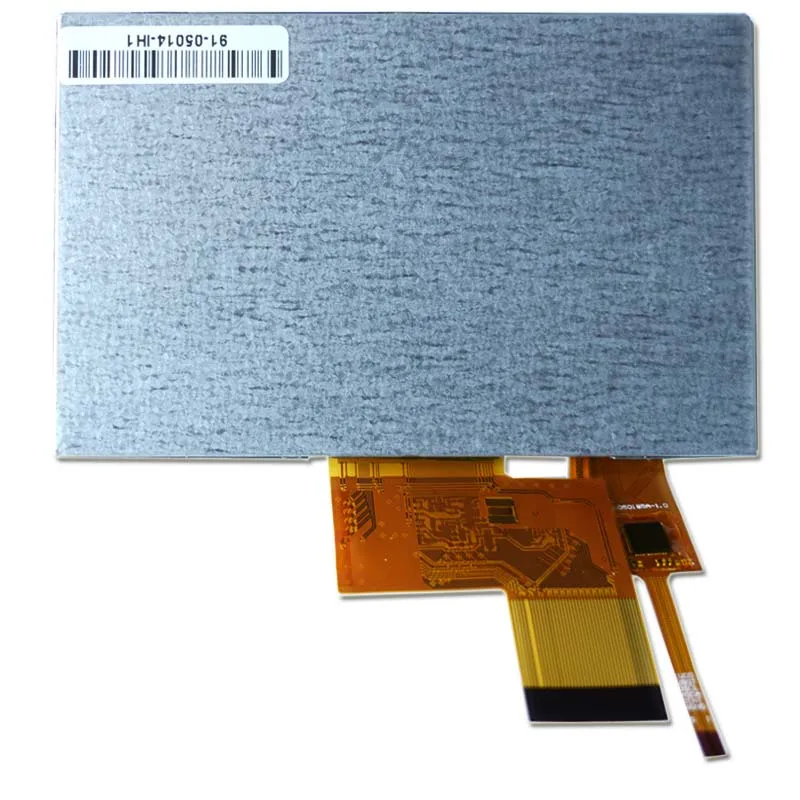

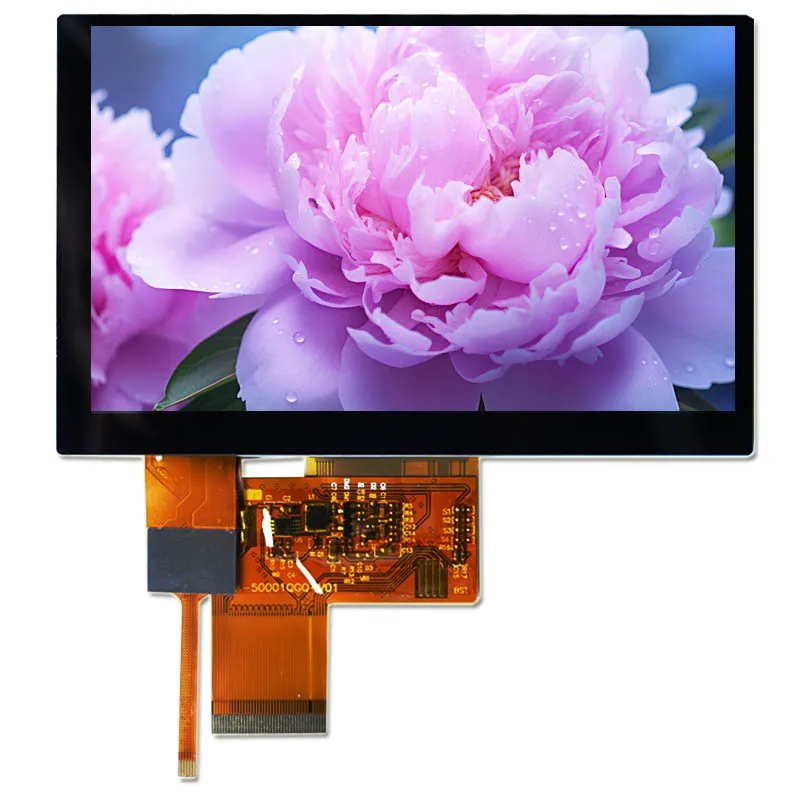

    5" TFT LCD With Touch Screen Features

    The 5 inch TFT Multi Touch Display features a resolution of 800x480 pixels and is enhanced with a capacitive touch screen, providing an intuitive user experience suitable for various applications. It has an active area of 108mm x 64.8mm and compact dimensions of 120.7mm x 75.8mm x 3mm, ensuring easy integration into diverse device designs. Operating within a temperature range of -20°C to 70°C and with a storage temperature of -30°C to 80°C, it is versatile for different environments.



    5" TFT Display with Capacitive Touch Screen

    The 5 inch capacitive touch screen features a resolution of 800*480 pixels, providing high pixel density that ensures sharp and clear images with intricate details, making graphics, images, and text crisp and well-defined. This increased resolution supports high-quality visuals, ideal for applications such as gaming, video playback, and graphic design. Additionally, it enables rich color representation, allowing for a broader range of vibrant and accurate colors, which is crucial for multimedia applications. Coupled with a contrast ratio of 1000, the display enhances color depth and richness, making images more visually appealing and improving overall user engagement.

    5.0" TFT-LCD Product Specifications

    Numéro de modèle  91-05014-IH1
    Taille 5.0
    Résolution 800*480
    Dimension de l'ébauche 120.7*75.8*3
    Zone active 108*64.8
    Luminosité (cd/m²) 450
    Interface RVB
    Voir la direction 6 O"clock
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile capacitif
    Rapport de contraste 500:1
    Alimentation électrique 3.3V
    Type d'affichage Character LCD

    5.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    5-Inch 800 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 450 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    450

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
