6.8 Inch 5-Point Capacitive Touch Screen Panel with mXT640U IC, USB Interface

UGS : DS40049
Taille :

Interface :

Thickness

1,1 mm

Touch IC

puce électronique

Structure

G+G

abc

Capacitive Touch Screen Panel, G+G Structure, 5-Point Precision Touch: mXT640U-Driven Industrial Panel with IP65 Protection

Demande de tarification au volume







    Description

    6.8 inch Capacitive Touch Screen Panel:



    Premium 6.8 inch Projected Capacitive Touch Panel
    Engineered for precision and durability, this industrial-grade 5-point multi-touch screen features cutting-edge mXT640U controller IC, delivering ultra-responsive gesture recognition (pinch, zoom, swipe) and <2ms response time. The robust G+G (Glass+Glass) structure combines chemically strengthened 1.1mm cover lens with sensor glass, achieving 7H hardness and IP65-rated dust/water resistance for 24/7 operation in harsh environments.Advanced Features:
    ✓ 5 simultaneous touch points with palm rejection
    ✓ 10-million-touch lifespan (IEC 60068-2-27 certified)
    ✓ EMI/ESD protection (IEC 61000-4-2 Level 4 compliance)
    ✓ Customizable FPC length (50-300mm optional)



    6.8 inch Capacitive Touch Screen Panel
    Construction Cover Glass Thickness: 1.1mm±0.05mm
    OCR Thickness: 0.175mm ± 0.05mm
    ITO Glass Double side ITO glass: Thickness: 0.4mm ± 0.05mm

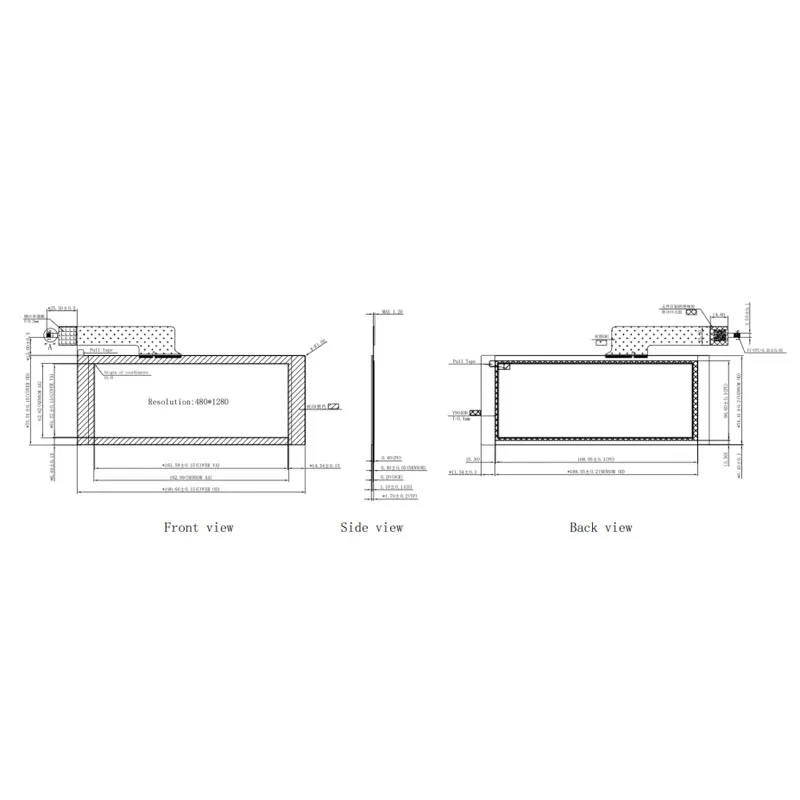

    Machanical Characteristics Touch size 6.8 inch
    Outer Dimension 190.66*75.01
    View Area 161.59*61.22
    Sensor Area 169.55*74.41
    Cover Thickness 1.1
    Number of Touch 5
    Interface I2C
    Controller Microchip

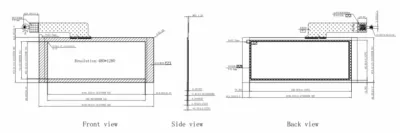

    5 point touch screen

    Télécharger

    6.8-Inch I²C Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 6.8-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed I²C interface, check the controller address, logic levels and bus pull-ups on the intended host. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
