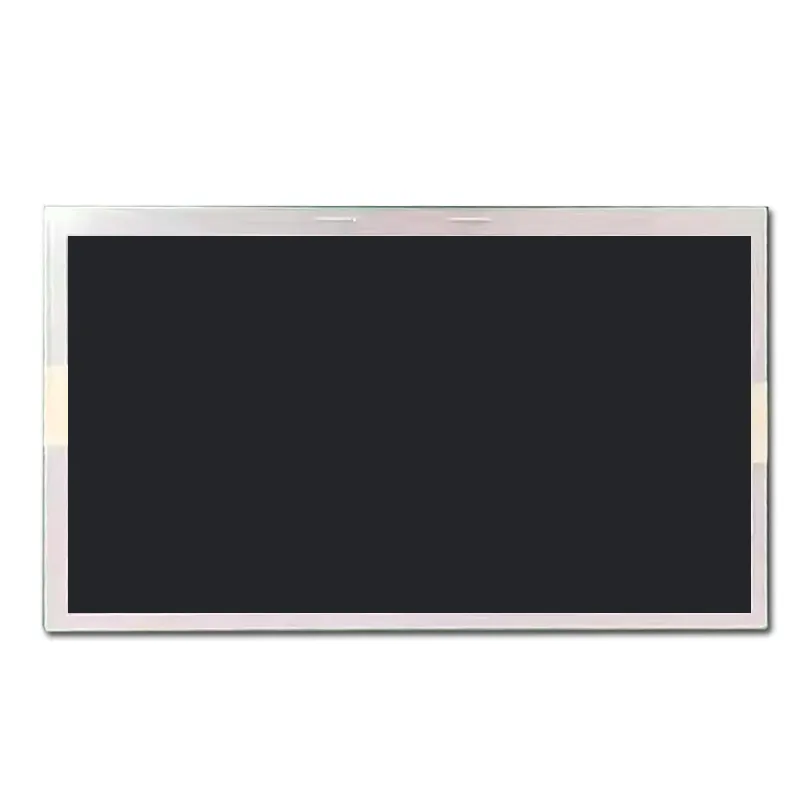

AU Optronics A070VTN06.1 7" High Brightness TFT LCD 1250nits, RGB Interface, -20~70°C

UGS : DS50124
Taille :

Numéro de modèle

A070VTN06.1

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

1280

Prise en charge de l'écran tactile :

Type d'affichage :

AU optronics a070vtn06.1 7" TFT LCD with 1250nits brightness, 800x480 TN panel, RGB interface. Industrial-grade , 10K-hour lifespan. For embedded R&D applications.

Demande de tarification au volume







    Description

    AU Optronics A070VTN06.1 General Desription

    The AUO A070VTN06.1 is a 7-inch TN TFT LCD module designed for high-performance embedded systems requiring extreme luminance. With 1250nits brightness, it excels in outdoor, aviation, and medical equipment where sunlight readability is critical. The 800x480 resolution and RGB 24-bit interface ensure precise color reproduction and compatibility with FPGA/ARM-based controllers.
    Engineered for industrial durability, it operates reliably across -20°C to 70°C temperatures and offers a 10,000-hour lifespan under continuous use. Key features include a 600:1 contrast ratio, anti-reflective surface treatment, and 6 o'clock viewing angles for flexible integration.



    A070VTN06.1 Application

    Target applications include avionics displays, automotive HUDs, ruggedized HMIs, and portable diagnostic devices. Supports custom EMI shielding and optional touch panel integration (resistive/capacitive). RoHS-compliant with low power consumption (3.3V logic).

    A070VTN06.1 Product Specifications

    Taille de la diagonale 7.0"(Diagonal)
    Nombre de pixels 800×480 Pixels
    Luminance 1280
    Module Size 166.43(W)×102.2(H)×6.6(D)
    Zone active 154.08(W)×85.92(H)
    Direction de visualisation TN
    View Angle(U/D/R/L) 60/60/40/60
    Interface RVB
    Rapport de contraste 500
    Température de fonctionnement -20~70℃
    Température de stockage -30~80℃
    Durée de vie des LED 10K
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3v
    Type d'affichage Color TFT

    AUO LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO A070VTN06.1 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO A070VTN06.1?

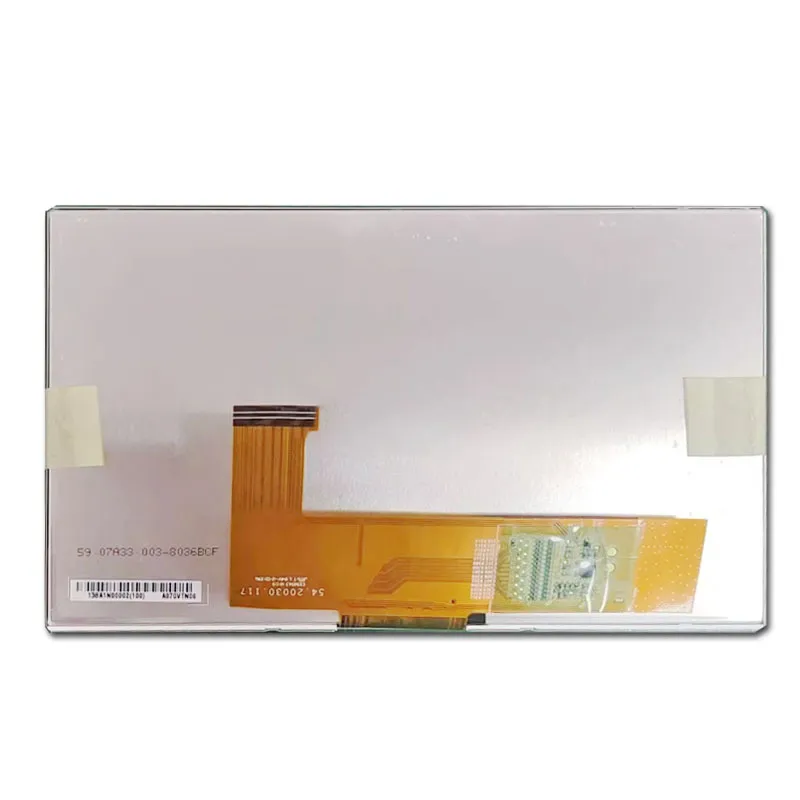

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the AUO A070VTN06.1?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO A070VTN06.1?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO A070VTN06.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    A070VTN06.1

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    1280

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
