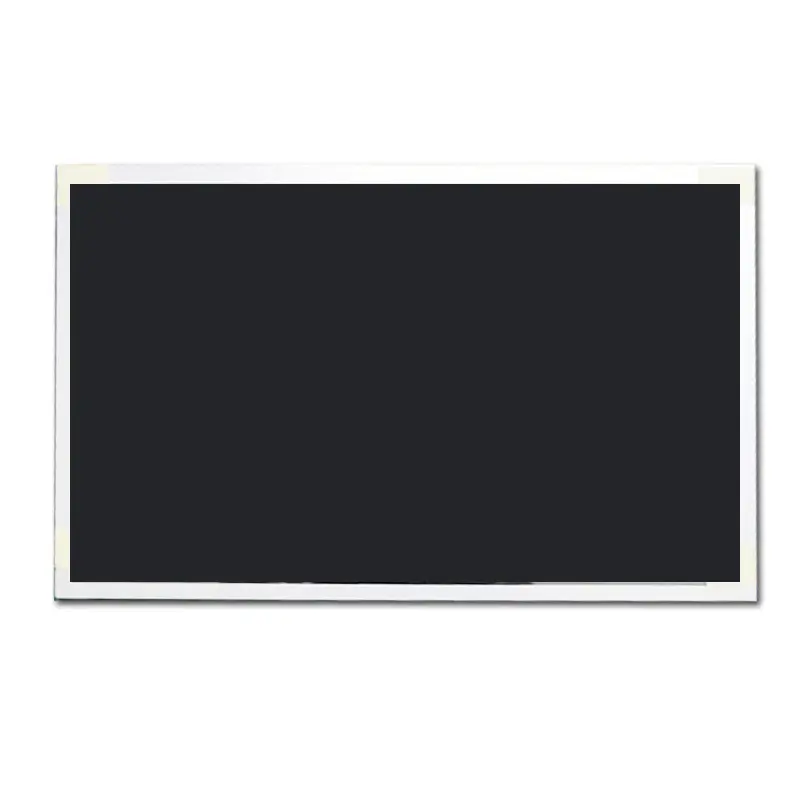

AU Optronics G121EAN01.1 TFT Panel Wide Temperature 1280x800

UGS : DS50176
Taille :

Numéro de modèle

G121EAN01.1

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Luminosité (cd/m²) :

400

Prise en charge de l'écran tactile :

Type d'affichage :

AU Optronics G121EAN01.1 TFT LCD Panel, 12.1 inch, resolution 1280×800, -30~85℃ Wide temperature,Idea for Industrial, Medical

Demande de tarification au volume







    Description

    AU Optronics G121EAN01.1 TFT Panel General Desription

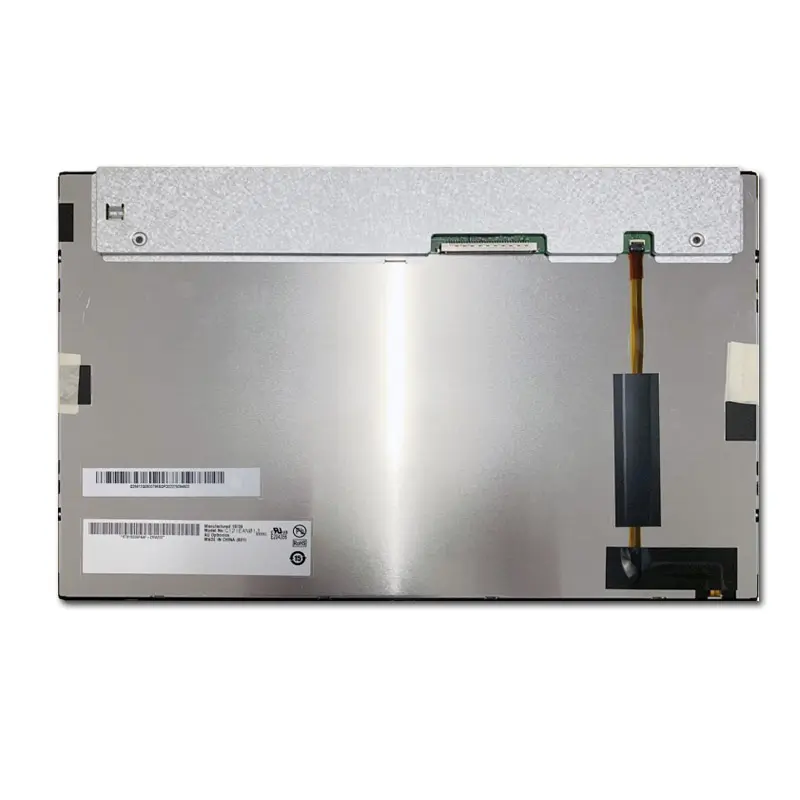

    The AU Optronics G121EAN01.1 is a 12.1-inch a-Si TFT-LCD LCM with 1280×800 WXGA resolution (124 PPI, RGB vertical stripe), featuring a 261.12×163.2mm active area, 278×184×9.64mm outline size, and antiglare 3H hard-coated surface. It offers 400 cd/m² (Typ.) brightness, 1000:1 (Typ.) contrast, 89/89/89/89 wide viewing angles (CR≥10), AHVA normally black transmissive mode, 25ms (Typ.) response time, and 262K/16.2M colors (99% sRGB). Equipped with a 50K-hour WLED backlight (with driver), it supports 60Hz refresh (up to 240Hz via MEMC), weighs max 480g, uses a 30-pin LVDS interface (3.3V input), and operates/stores at -30~85°C, designed for industrial and healthcare applications.

    Buy it now!

    1-With a -30°C to 85°C wide temperature range (operating/storage), it maintains stable performance in extreme heat, cold, or fluctuating climates, making it ideal for rugged industrial equipment, outdoor signage, and mobile applications..
    2-Reliable inventory and on-time delivery to support your production schedules,Expert technical guidance and customized solutions to meet your specific requirements

    G121EAN01.1 Product Specifications

    Taille de la diagonale 12.1"(Diagonal)
    Nombre de pixels 1280×800 Pixels
    Luminance 400
    Module Size 278(W)×184(H) ×9.64(D)
    Zone active 261.12(W)×163.2(H)
    Direction de visualisation ALL
    View Angle(U/D/R/L) 89/89/89/89
    Interface LVDS
    Rapport de contraste 800
    Température de fonctionnement -30~85℃
    Température de stockage -30~85℃
    Durée de vie des LED 50K
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3v
    Type d'affichage Color TFT

    AUO LCD Display Solutions sur mesure

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G121EAN01.1 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G121EAN01.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G121EAN01.1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G121EAN01.1 compare with the BOE EV121WXM-N12?

    Both catalog listings show 12.1 inches, 1280 × 800 and LVDS. The catalog lists −30 °C to +85 °C for the AUO panel and −20 °C to +70 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE EV121WXM-N12

    Is the AUO G121EAN01.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G121EAN01.1

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~ 85℃

    Luminosité (cd/m²) :

    400

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
