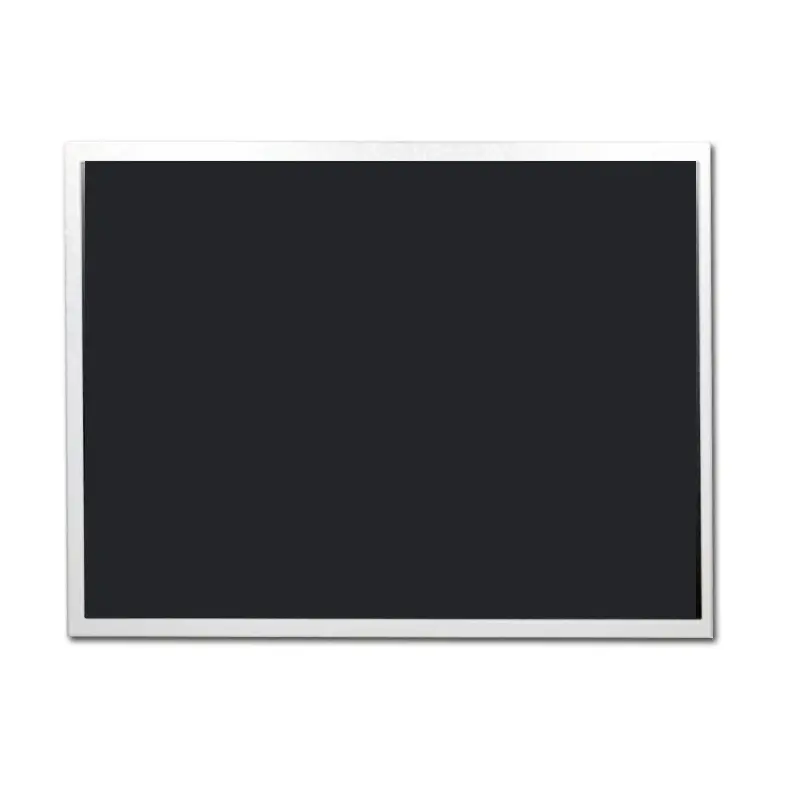

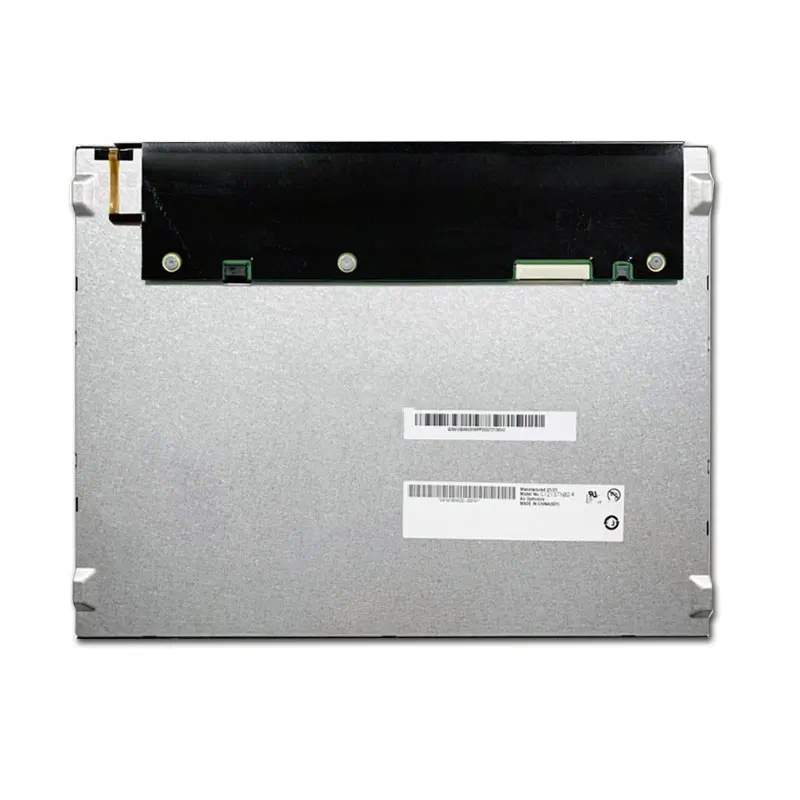

AU Optronics G121STN02.0 Displays Sunlight Readable 800x600

UGS : DS50174
Taille :

Numéro de modèle

G121STN02.0

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

AU Optronics G121STN02.0 Displays rugged industrial, 12.1 inch, resolution 800×600, -30~85℃ Wide temperature,500 nits sunlight readable LCD

Demande de tarification au volume







    Description

    AU Optronics G121STN02.0 Displays General Desription

    The AU Optronics G121STN02.0 is a 12.1-inch a-Si TFT-LCD LCM with 800×600 SVGA resolution (82 PPI) and RGB vertical stripe pixel format. It features a 246×184.5mm active area, 260.5×203×9mm outline size, and antiglare 3H hard-coated surface. With 500 cd/m² (Typ.) brightness, 800:1 (Typ.) contrast ratio, and 80/80/65/75 (Typ.) viewing angles (CR≥10), this TN normally white transmissive panel offers 25/10ms (Tr/Td, Typ.) response time and supports 262K/16.7M colors (53% NTSC). Equipped with a 50K-hour WLED backlight (with driver) and 60Hz refresh rate (up to 240Hz via MEMC), it weighs up to 600g, uses a 20-pin LVDS interface (3.3V input), and operates/stores at -30~85°C for rugged industrial applications without a touch screen.

    Highlight G121STN02.0 Display’s Features

    The AUO G121STN02.0 delivers premium quality and robust stability, built with durable components and rigorous testing for consistent performance in harsh conditions. Its anti-glare hard-coated surface and long-life WLED backlight ensure reliability in 24/7 operations.
    With a -30°C to 85°C temperature range, it thrives in extreme environments. Ideal for industrial automation, vehicle-mounted systems, military equipment, and medical devices, where durability and precision are critical.

    G121STN02.0 Product Specifications

    Taille de la diagonale 12.1"(Diagonal)
    Nombre de pixels 800×600 Pixels
    Luminance 500
    Module Size 260.5(W)×203(H) ×9(D)
    Zone active 246(W)×184.5(H)
    Direction de visualisation 6 O'CLOCK
    View Angle(U/D/R/L) 80/80/65/75
    Interface LVDS
    Rapport de contraste 800
    Température de fonctionnement -30~85℃
    Température de stockage -30~85℃
    Durée de vie des LED 50K
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3v
    Type d'affichage Color TFT

    AUO LCD Display Solutions sur mesure

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G121STN02.0 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G121STN02.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G121STN02.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G121STN02.0 compare with the Innolux G121AGE-L03?

    Both catalog listings show 12.1 inches, 800 × 600 and LVDS. The catalog lists 500 cd/m² for the AUO panel and 450 cd/m² for the Innolux panel. Compare readability through the same cover at the intended viewing angle. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G121AGE-L03

    Is the AUO G121STN02.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
