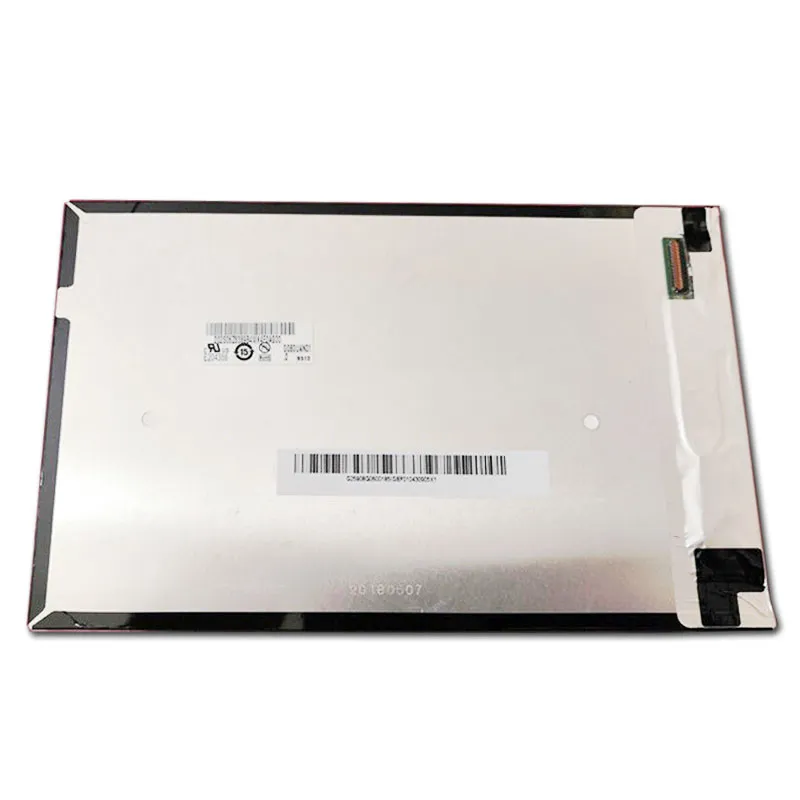

AUO G080UAN01.0 8" MIPI IPS Display 1200x1920, 500nits, 1000:1 Contrast

UGS : DS50133
Taille :

Numéro de modèle

G080UAN01.0

Résolution :

Interface :

Température de fonctionnement :

-10℃~60℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

AUO G080UAN01.0 8-inch MIPI IPS display with 1000:1 contrast, 500nits brightness. Industrial-grade -10~60°C operation, 20K-hour lifespan. Bulk order discounts.

Demande de tarification au volume







    Description

    AU Optronics G080UAN01.0 General Desription

    The AUO G080UAN01.0 8-inch IPS module delivers 1200x1920 vertical resolution for mission-critical industrial applications requiring precision and durability.
    Procurement-Centric Specifications:
    MIPI Interface: 45-pin connector supports 4-lane transmission (6Gbps bandwidth)
    1000:1 High Contrast: 89°(H)/89°(V) wide viewing angles with anti-glare hard coating (3H)
    Extended Thermal Operation: Validated performance from -10°C to 60°C (storage: -20~70°C)
    20,000-hour Lifespan: Accelerated testing at 500nits/60°C with ≤10% brightness decay



    Why Choose US

    Supply Chain Benefits:
    ・MOQ 1 pcs with 3-5 business days lead time
    ・RoHS 2.0/REACH SVHC 223 compliant
    ・Customizable bonding processes (ACF/PSA)
    ・On-demand EMI shielding solutions
    Bulk Purchase Benefits:
    Free thermal shock testing data (-40°C ↔ 85°C, 500 cycles)
    Dedicated signal integrity consultation
    Volume pricing tiers (100+/500+/1000+ units)
    Extended 18-month warranty option
    Industrial Applications:
    Medical imaging monitors
    Semiconductor inspection systems
    Warehouse automation HMI

    G080UAN01.0 Product Specifications

    Taille de la diagonale 8.0"(Diagonal)
    Nombre de pixels 1200×1920 Pixels
    Luminance 500
    Module Size 114.6(W)×184.13(H)×3.95(D)
    Zone active 107.64(W)×172.224(H)
    Direction de visualisation IPS
    View Angle(U/D/R/L) 89/89/89/89
    Interface MIPI
    Rapport de contraste 1000
    Température de fonctionnement -10~60℃
    Température de stockage -20~70℃
    Durée de vie des LED 20K
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3v
    Type d'affichage Color TFT

    AUO LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G080UAN01.0 8-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G080UAN01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing MIPI cable and controller with the AUO G080UAN01.0?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G080UAN01.0?

    Use 1200 × 1920 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G080UAN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G080UAN01.0

    Résolution :

    Interface :

    Température de fonctionnement :

    -10℃~60℃

    Luminosité (cd/m²) :

    500

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
