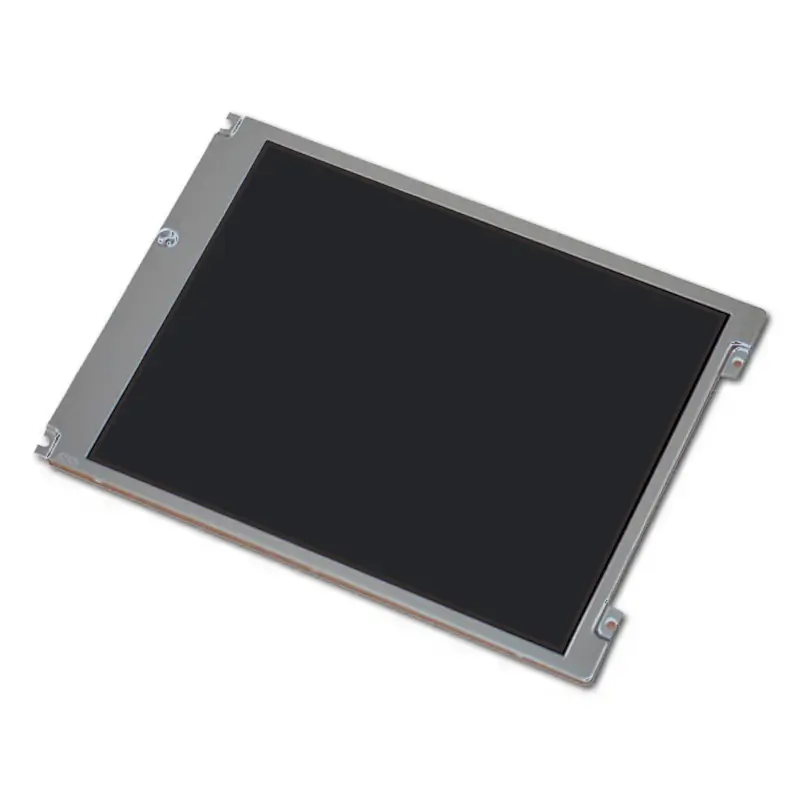

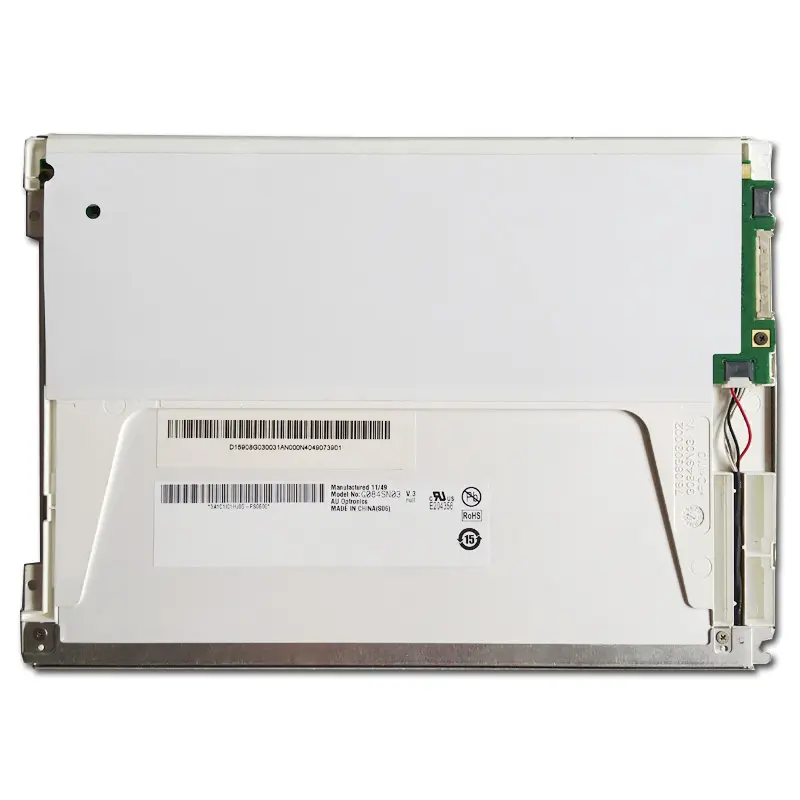

AUO G084SN03 V3 Industrial Display Screen 8.4 inch 800×600

UGS : DS50138
Taille :

Numéro de modèle

G084SN03 V3

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

250

Prise en charge de l'écran tactile :

Type d'affichage :

AUO G084SN03 V3, AUO Original A-grade display, -20~70 ℃, 30K long life span, LVDS Display Panel for industrial application

Demande de tarification au volume







    Description

    AUO G084SN03 V3 General Desription

    This is AUO G084SN03 V3 8.4-inch a-Si TFT-LCD module with an 800×600 SVGA resolution (119 PPI), 250 cd/m² brightness, 600:1 contrast ratio, and TN display mode. It features a 170.4×127.8mm active area, antiglare hard coating (3H), 3-string WLED backlight (30K hours, with driver), 60Hz standard frequency (supports 120Hz/240Hz via MEMC), LVDS 20-pin interface, 3.3V input, and operates/stores at -20~70°C. No touch screen, industrial application, panel weight TBD.



    Key Advantages for Displaysell

    Premium AUO A-Grade Industrial Panels: As a trusted AUO distributor for 13 years, we offer authentic, factory-grade displays at competitive prices. Backed by a 1-year warranty, our products ensure reliable performance and peace of mind for every purchase.
    Tailored Solutions by Expert R&D: Our dedicated team provides end-to-end technical support, delivering comprehensive TFT solutions—including touch integration and driver boards—for both consumer and industrial sectors. No matter your application, we customize solutions to meet your unique needs.

    G084SN03 V3 Product Specifications

    Taille de la diagonale 8.4"(Diagonal)
    Nombre de pixels 800×600 Pixels
    Luminance 450
    Module Size 203(W)×142.5(H) ×6.2(D)
    Zone active 170.4(W)×127.8(H)
    Direction de visualisation 6 O'CLOCK
    View Angle(U/D/R/L) 80/80/80/60
    Interface LVDS
    Rapport de contraste 600
    Température de fonctionnement -20~70℃
    Température de stockage -20~70℃
    Durée de vie des LED 30K
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3v
    Type d'affichage Color TFT

    AUO LCD Display Solutions sur mesure

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G084SN03 V3 8.4-Inch LCD Replacement FAQ

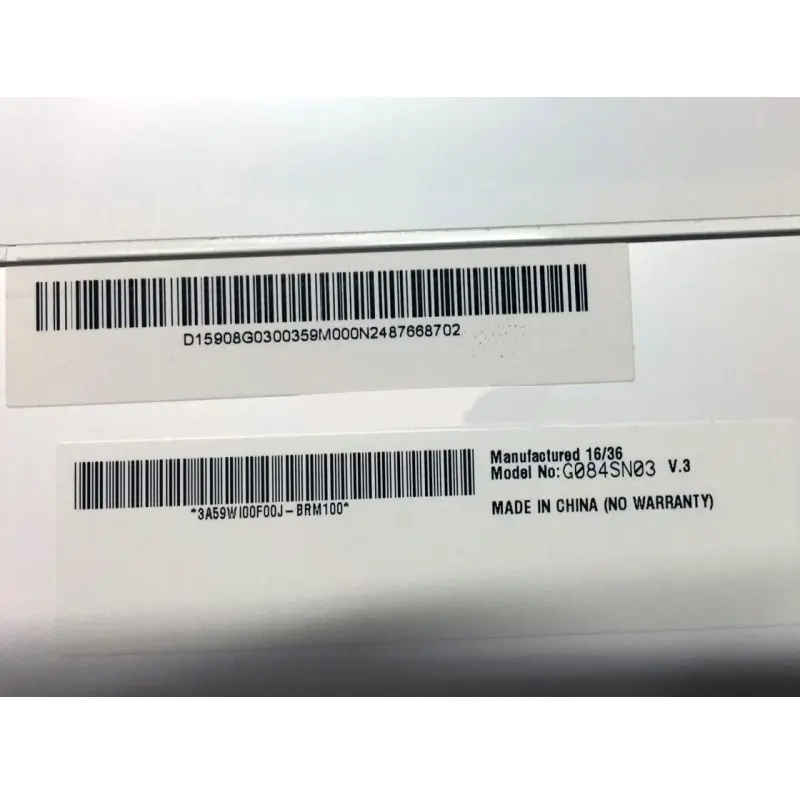

    How do I confirm that I need the AUO G084SN03 V3?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G084SN03 V3?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G084SN03 V3?

    Use 800 × 600 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G084SN03 V3 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G084SN03 V3

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    250

    Prise en charge de l'écran tactile :

    Type d'affichage :
