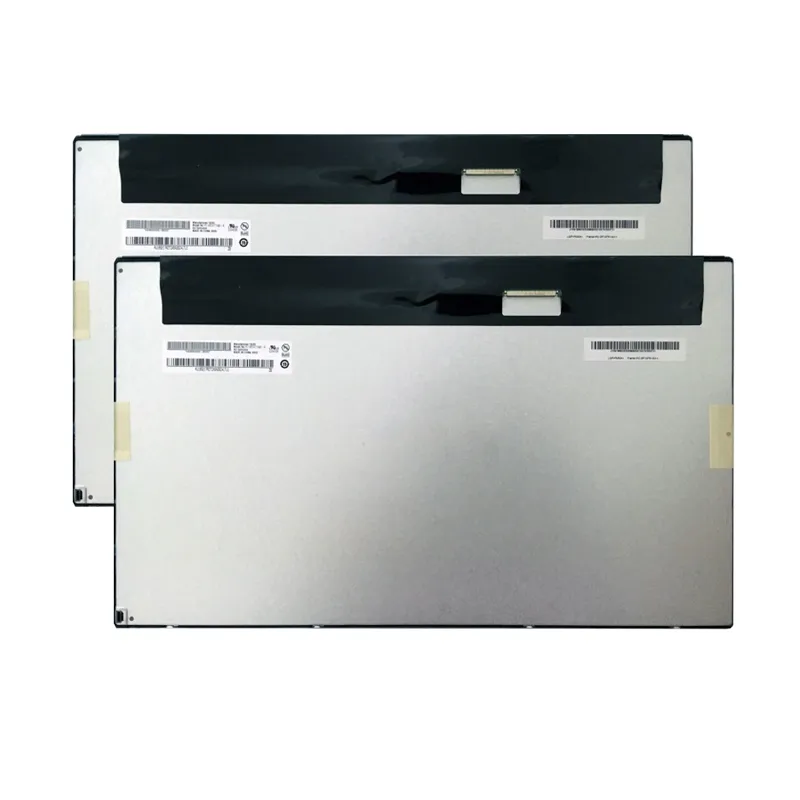

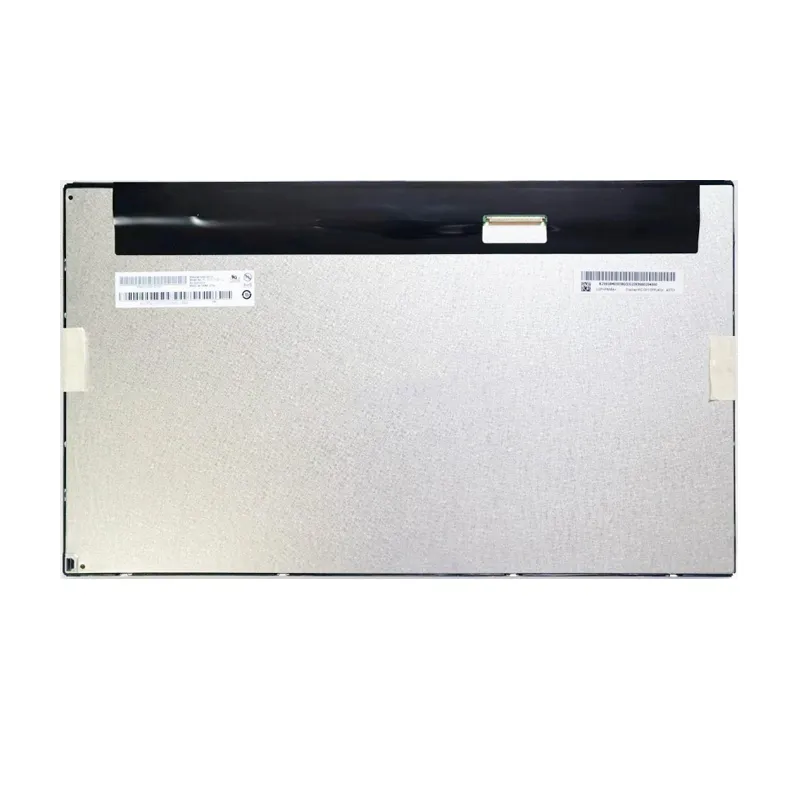

AUO M185XTN01.2 18.5" HD TN Industrial LCD - LVDS Interface, 1000:1 Contrast

UGS : DS50053
Taille :

Numéro de modèle

M185XTN01.2

Résolution :

Interface :

Température de fonctionnement :

-0℃~50℃

Luminosité (cd/m²) :

250

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

AUO M185XTN01.2 18.5" HD TN industrial LCD with LVDS, 250cd/m² brightness, and 5V power. Built for harsh environments.

Demande de tarification au volume







    Description

    M185XTN01.2 Key Features:

    The AUO M185XTN01.2 is an 18.5-inch HD (1366×768) TN panel LCD engineered for rugged industrial applications. Featuring an LVDS interface for stable signal transmission in high-interference environments, it delivers reliable performance with 250cd/m² brightness and a 1000:1 contrast ratio. The ultra-slim 10.4mm profile (430.4×254.6×10.4mm) and 5V low-power design make it ideal for space-constrained and energy-efficient setups. Built to endure harsh conditions, it operates seamlessly in temperatures from -0°C to 50°C and withstands storage down to -20°C. With a 30,000-hour LED lifespan and anti-glare coating, it ensures long-term durability and readability under bright lighting.



    Applications & Performance:

    Designed for industrial control systems, retail kiosks, and medical monitoring devices, this TN display excels in cost-sensitive, single-view applications. Its LVDS interface minimizes EMI in factory automation or transportation dashboards, while the wide temperature range supports outdoor digital signage or cold storage environments. The slim design integrates effortlessly into compact IoT devices, ATMs, or legacy equipment upgrades. Though TN panels have limited vertical viewing angles, the 89° horizontal clarity suits fixed-angle use in laboratory instruments or handheld diagnostic tools. The 5V power compatibility simplifies integration with low-voltage systems, reducing energy costs in 24/7 operations like warehouse management or security panels.

    18.5" TN LCD Product Specifications

    Numéro de modèle M185XTN01.2
    Taille 18.5
    Résolution 1366×768
    Dimension de l'ébauche 430.4×254.6×10.4
    Zone active 409.8×230.4
    Luminosité (cd/m²) 250
    Interface LVDS
    Voir la direction TN
    Température de fonctionnement -0~50
    Température de stockage -20~60
    Durée de vie des LED 30000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 5.0V
    Type d'affichage LCD couleur

    18.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO M185XTN01.2 18.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO M185XTN01.2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 18.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO M185XTN01.2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO M185XTN01.2?

    Use 1366 × 768 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO M185XTN01.2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
