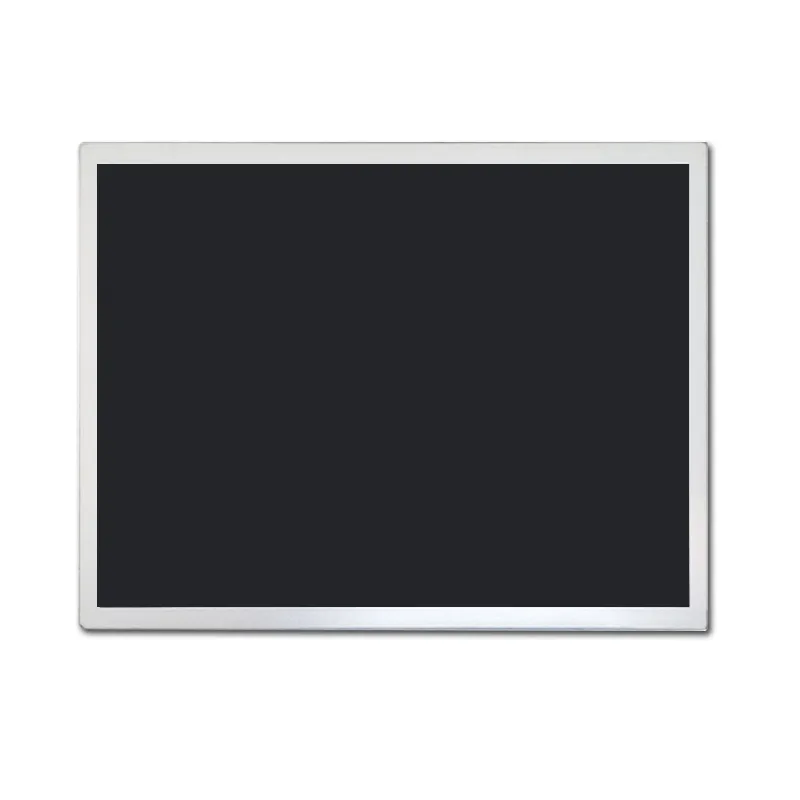

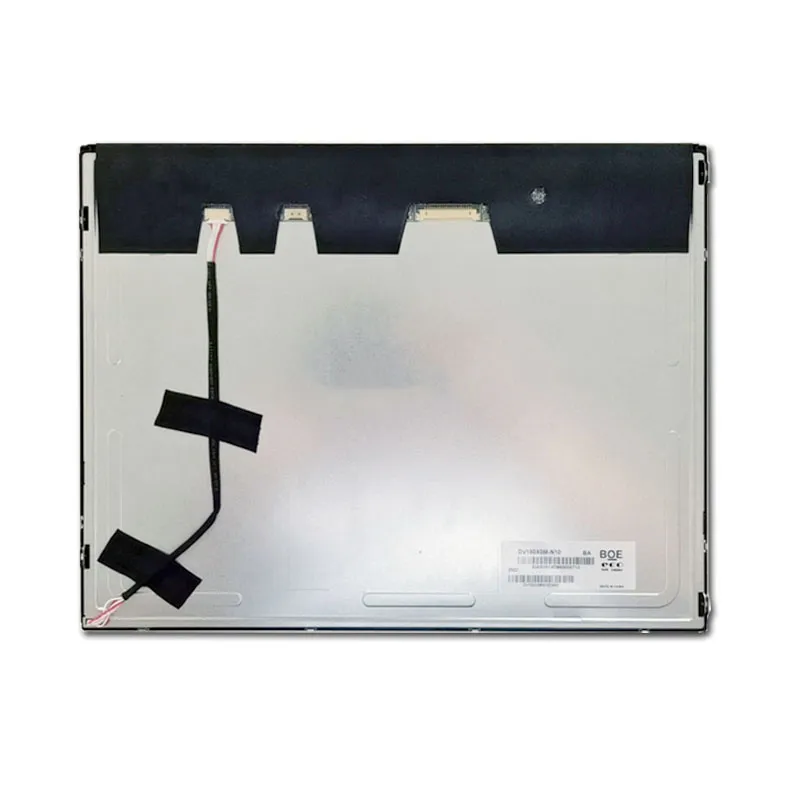

BOE DV150X0M-N10 15" IPS Industrial Panel 1024x768 LVDS -20~70°C 50K Hrs

UGS : DS50205
Taille :

Numéro de modèle

V150X0M-N10

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

BOE DV150X0M-N10: 15" IPS display, 1024x768 resolution, 350nits brightness, LVDS interface, -20~70°C range, 50K-hour lifespan.

Demande de tarification au volume







    Description

    DV150X0M-N10 General Desription

    The BOE DV150X0M-N10 is a rugged 15-inch IPS industrial display designed for extreme environments. With 1024x768 resolution and 350nits high brightness, it ensures visibility in direct sunlight or low-light conditions. The LVDS interface provides reliable signal transmission for industrial PCs, HMIs, and embedded systems.
    Engineered for harsh applications, this panel operates reliably in temperatures from -20°C to 70°C, making it suitable for cold storage, automotive systems, and outdoor digital signage. Its extended 50,000-hour lifespan reduces maintenance frequency in 24/7 operations.



    DV150X0M-N10 Features

    4:3 aspect ratio for legacy equipment compatibility
    Industrial-grade anti-shock/vibration construction
    800:1 contrast ratio for crisp grayscale rendering
    Low power consumption with wide DC input (9-36V)
    EMI/EMC compliance for noise-sensitive environments
    Certified to meet MIL-STD-810G (method 501.5/502.5) for thermal endurance and IP65 front-panel protection (optional). Supports portrait/landscape mounting with VESA 75x75mm patterns. Available for OEM/ODM integration with custom logo, firmware, and cable solutions.

    DV150X0M-N10 Product Specifications

    Taille de la diagonale 15"(Diagonal)
    Nombre de pixels 1024×768 Pixels
    Luminance 350
    Module Size 326.5(H)×253.5(V) ×10(D)
    Zone active 304.128(W)×228.096(H)
    Direction de visualisation ALL
    View Angle(U/D/R/L) 89/89/89/89
    Interface LVDS 20
    Rapport de contraste 1000
    Température de fonctionnement -20~70℃
    Température de stockage -20~70℃
    Durée de vie des LED 50K
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3v
    Type d'affichage Color TFT

     BOE LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    BOE DV150X0M-N10 15-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE DV150X0M-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE DV150X0M-N10?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE DV150X0M-N10 compare with the AUO G150XTN06.4?

    Both catalog listings show 15 inches, 1024 × 768 and LVDS. The catalog lists −20 °C to +70 °C for the BOE panel and −30 °C to +85 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G150XTN06.4

    Is the BOE DV150X0M-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    V150X0M-N10

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    350

    Prise en charge de l'écran tactile :

    Type d'affichage :
