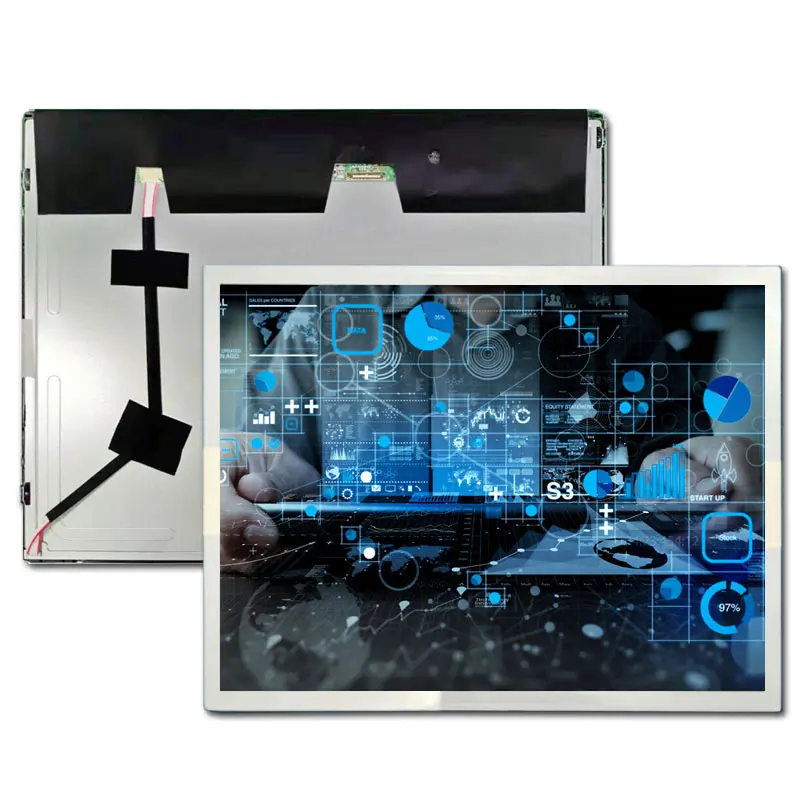

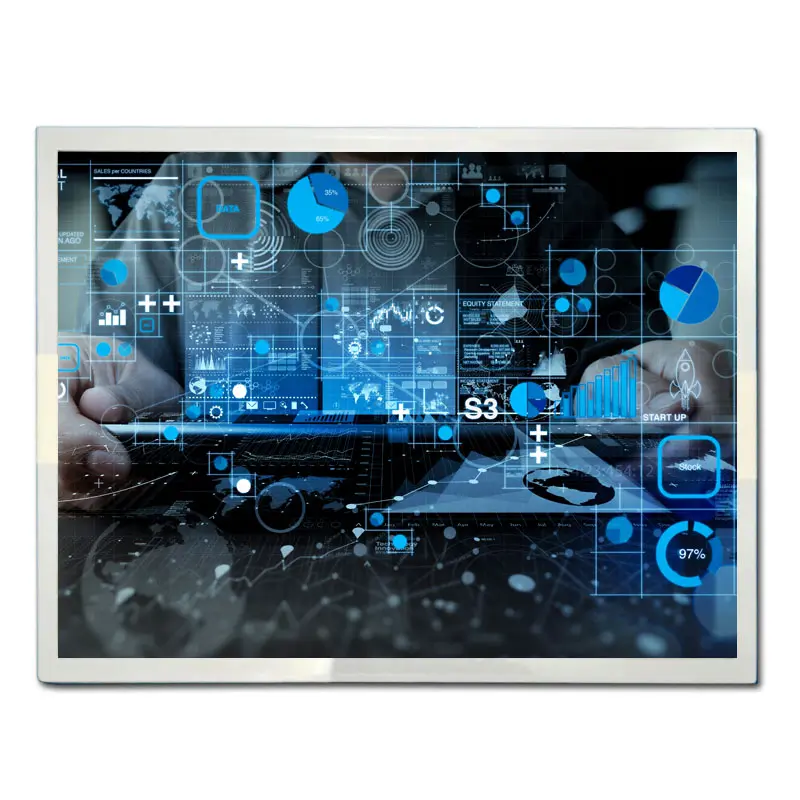

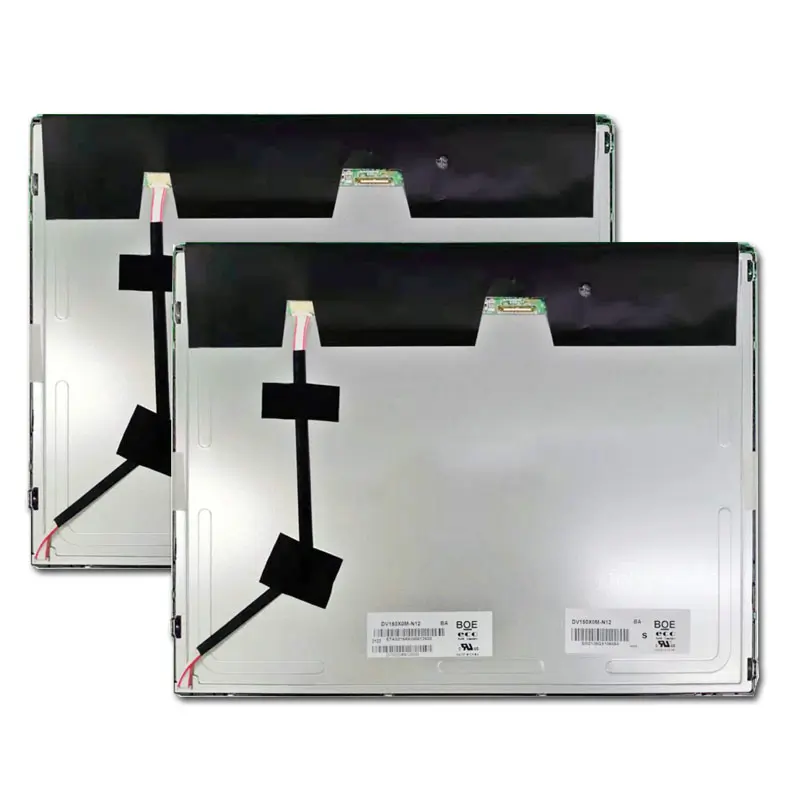

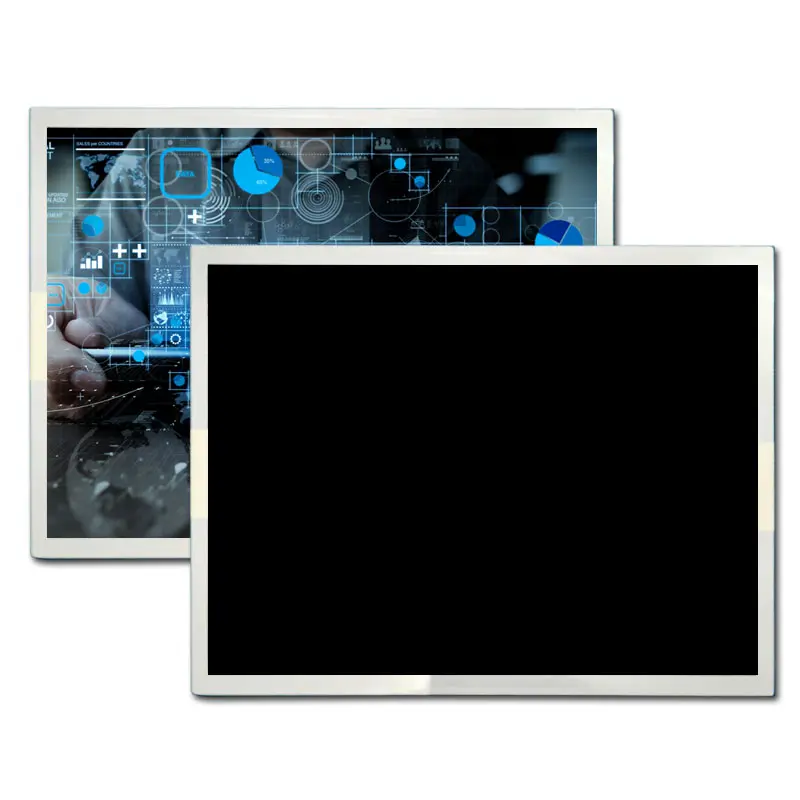

BOE DV150X0M-N12 15 inch eDP Industrial LCD 1024×768 IPS Panel 350cd/m² Brightness

UGS : DS50271
Taille :

Numéro de modèle

V150X0M-N12

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Prise en charge de l'écran tactile :

Type d'affichage :

BOE dv150x0m-n12 eDP Interface 15 inch IPS Display 89°/89°/89°/89° viewing angles for Extreme Industrial Reliability LCD Screen.

Demande de tarification au volume







    Description

    DV150X0M-N12 General Desription

    The BOE DV150X0M-N12 is a high-performance 15.0-inch color LCD display designed for industrial and commercial applications. Featuring an enhanced eDP interface for faster data transmission and lower power consumption, it delivers crisp 1024×768 resolution with 350cd/m² brightness for optimal visibility in bright environments. The IPS panel ensures consistent 89°/89°/89°/89° viewing angles, ideal for multi-user scenarios. Built to endure extreme conditions, it operates reliably in temperatures from -20°C to 70°C and boasts a 50,000-hour LED lifespan. With a slim 10mm profile and 1000:1 contrast ratio, this rugged display is engineered for seamless integration into automation systems, medical equipment, and outdoor digital signage.



    Application & Performanc

    Perfect for industrial control panels, transportation dashboards, and harsh-environment kiosks, the DV150X0M-N12 excels where reliability is critical. Its high brightness and IPS technology ensure readability under direct sunlight or dim factory lighting, while the eDP interface guarantees stable performance in EMI-sensitive settings. The wide operating temperature range makes it suitable for freezing warehouses, high-heat machinery, or outdoor solar-powered systems. With no touchscreen, it reduces complexity and maintenance in dusty or high-vibration environments like CNC machines, EV charging stations, and laboratory instruments. The compact 326.5×253.5mm design allows easy retrofitting into legacy equipment.

    15.0" Product Specifications

    Diagonal Size11.8 15.0 inch
    Nombre de pixels 1024×768
    Luminance 350
    Module Size 326.5×253.5×10
    Zone active 304.128×228.096
    Direction de visualisation IPS
    View Angle(U/D/R/L) 89/89/89/89
    Interface  eDP
    Rapport de contraste 1000:1
    Température de fonctionnement -20 ~ 70 °C
    Température de stockage -20 ~ 70 °C
    Durée de vie des LED 50000
    Alimentation électrique 3.3V
    Prise en charge de l'écran tactile Sans
    Type d'affichage Color TFT



    BOE LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    BOE DV150X0M-N12 15-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE DV150X0M-N12?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing eDP cable and controller with the BOE DV150X0M-N12?

    For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE DV150X0M-N12 compare with the AUO G150XTN06.C?

    Both catalog listings show 15 inches, 1024 × 768 and eDP. The catalog lists −20 °C to +70 °C for the BOE panel and −30 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G150XTN06.C

    Is the BOE DV150X0M-N12 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
