DV366FBM-N10 BOE LCD Screen 36.6 inch 1920x290 Bar Type

UGS : DS50292
Taille :

Numéro de modèle

DV366FBM-N10

Résolution :

Interface :

Température de fonctionnement :

-0℃~50℃

Luminosité (cd/m²) :

700

Prise en charge de l'écran tactile :

Type d'affichage :

DV366FBM-N10 BOE LCD Screen, 36.6 inch, 1920x290, 89/89/89/89 IPS Screen, LVDS interface, 700 nits Sunlight readable for outdoor advertising.

Demande de tarification au volume







    Description

    DV366FBM-N10 BOE LCD Screen Description

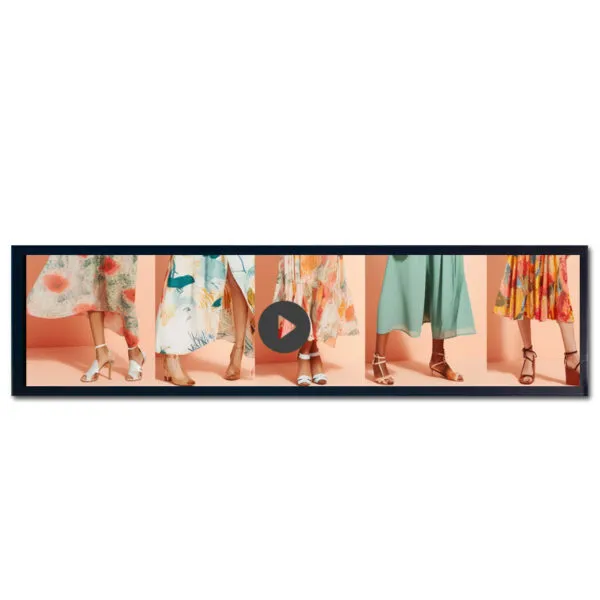

    BOE 36.6-inch Ultra-Wide LCD Strip Panel

    Engineered for reliability, this BOE panel delivers stable performance with 700-nit brightness and IPS full-view technology, ensuring consistent visuals from any angle. Equipped with LVDS for secure signal transmission, it is ideally suited for transportation applications such as:

    Train interior information displays
    Subway station route indicators
    Bus passenger notification systems

    The ultra-wide format and rugged design make it a trusted choice for mission-critical transit environments requiring 24/7 operation.

    36.6" TFT Display Specifications

    Numéro de modèle DV366FBM-N10
    Taille 36.6
    Résolution 1920*290
    Dimension de l'ébauche 960*174.35*16.9
    Zone active 919.3*138.85
    Luminosité (cd/m²) 700
    Interface LVDS
    Voir la direction ALL
    Température de fonctionnement -0~50
    Température de stockage -20~60
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile No
    Rapport de contraste 1200:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    36.6" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    BOE DV366FBM-N10 36.6-Inch Stretched Bar LCD FAQ

    How do I confirm that I need the BOE DV366FBM-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 36.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE DV366FBM-N10?

    Check the connector pinout, video timing, panel supply and backlight enable or dimming against the exact drawing. Send us the controller model or cable diagram before reusing the harness.

    TFT LCD datasheet integration guide

    How does the BOE DV366FBM-N10 compare with the Innolux S366AJ1-LE1?

    Both catalog listings show 36.6 inches, 1920 × 290 and LVDS. The catalog lists 0 °C to +50 °C for the BOE panel and −20 °C to +60 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux S366AJ1-LE1

    Is the BOE DV366FBM-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    DV366FBM-N10

    Résolution :

    Interface :

    Température de fonctionnement :

    -0℃~50℃

    Luminosité (cd/m²) :

    700

    Prise en charge de l'écran tactile :

    Type d'affichage :
