Description
G104VTN01.0 AU Optronics LCD General Desription

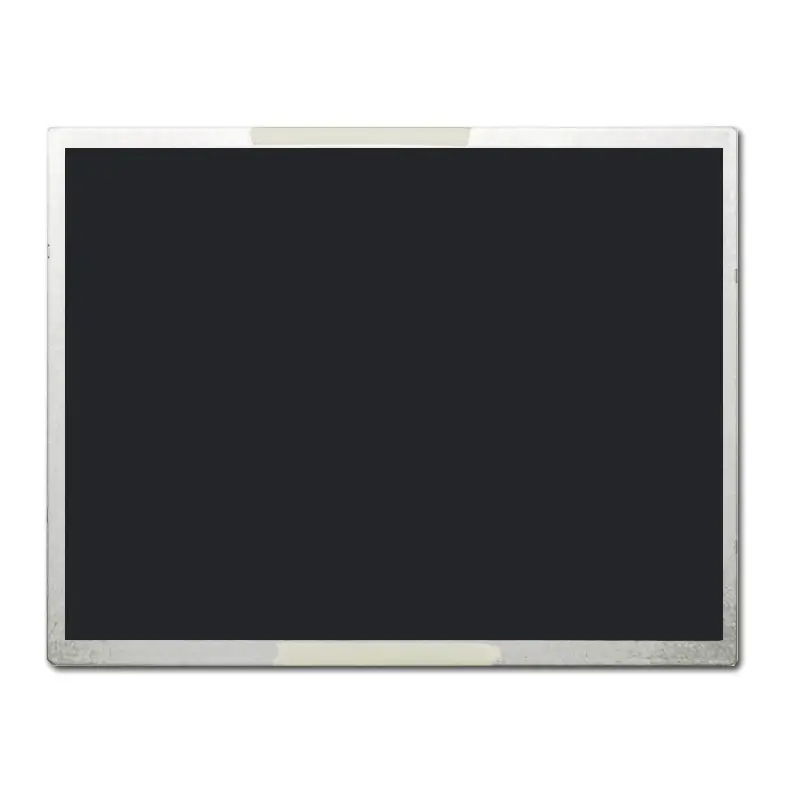

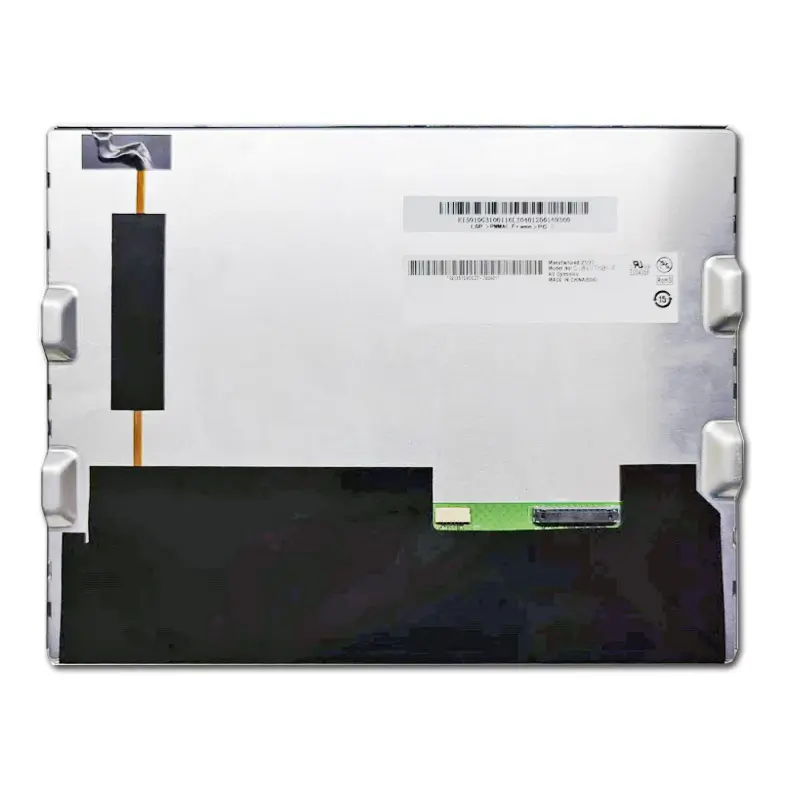

The AUO G104VTN01.0 is a 10.4-inch a-Si TFT-LCD module with 640×480 VGA resolution (76 PPI), featuring a 211.2×158.4mm active area, 227.3×177.5×9.8mm outline size, and 293g weight. It offers 370 cd/m² brightness, 700:1 contrast ratio, 80/80/60/80 viewing angles, TN normally white transmissive mode, and antiglare 3H hard coating. With 262K colors (47% NTSC), WLED backlight (100K hours), and support for 60Hz (up to 240Hz via MEMC), it uses a 40-pin parallel RGB interface (3.3V input), operates/stores at -30~80°C, and is suitable for industrial applications, can match a customized touch screen.
Highlight G104VTN01.0 Display’s Features
1- -30°C to 80°C wide operating temperature range, tailored specifically for demanding industrial environments, whether it's deployed in frigid warehouses, sun-baked outdoor equipment, or industrial ovens.
2- The G104VTN01.0 is equipped with a high-quality WLED backlight rated for an impressive 100,000 hours of continuous use, this extended lifespan significantly reduces maintenance frequency and replacement costs, providing long-term value for industrial applications that require consistent display performance over time.
G104VTN01.0 Product Specifications
| Taille de la diagonale | 10.4"(Diagonal) |
|---|---|
| Nombre de pixels | 640×480 Pixels |
| Luminance | 370 |
| Module Size | 227.3(W)×177.5(H) ×9.5(D) |
| Zone active | 211.2(W)×158.4(H) |
| Direction de visualisation | 6 O'CLOCK |
| View Angle(U/D/R/L) | 80/80/60/80 |
| Interface | RVB |
| Rapport de contraste | 700 |
| Température de fonctionnement | -30~80℃ |
| Température de stockage | -30~80℃ |
| Durée de vie des LED | 100K |
| Prise en charge de l'écran tactile | Sans |
| Alimentation électrique | 3.3v |
| Type d'affichage | Color TFT |
AUO LCD Display Custom Solutions

Optimisez vos solutions de câblage
Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

Modifications de la carte de circuit imprimé
Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile
Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

Verre de couverture sur mesure
Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.
AUO G104VTN01.0 10.4-Inch LCD Replacement FAQ
How do I confirm that I need the AUO G104VTN01.0?

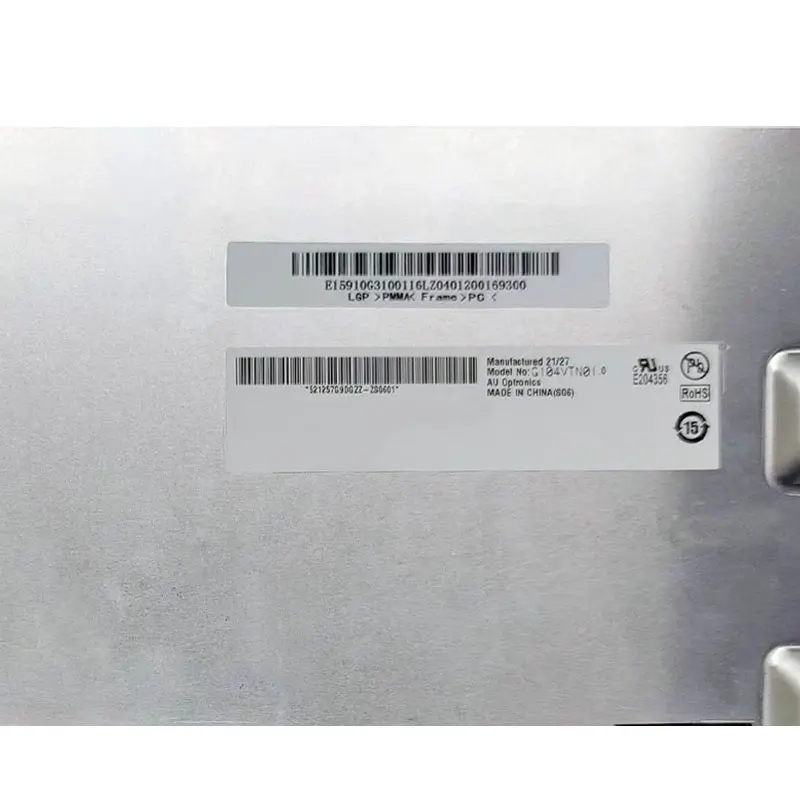

Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.
Can I reuse the existing RGB cable and controller with the AUO G104VTN01.0?
For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.
How do I qualify a different panel as a replacement for the AUO G104VTN01.0?
Use 640 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.
Is the AUO G104VTN01.0 still available, and how do I check for end of life?
Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.
Can I keep the original LCD and add touch, a cover, or a revised cable?
The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
Informations complémentaires
| Taille : | |
|---|---|
| Numéro de modèle | G104VTN01.0 |
| Résolution : | |
| Interface : | |
| Température de fonctionnement : | -30℃~80℃ |
| Luminosité (cd/m²) : | 370 |
| Prise en charge de l'écran tactile : | |
| Type d'affichage : |
