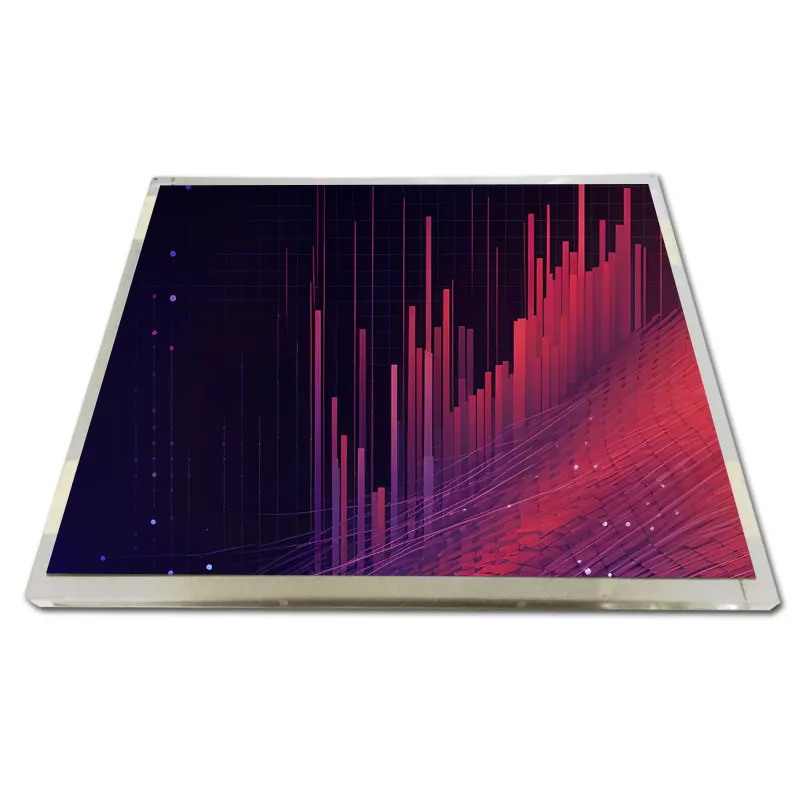

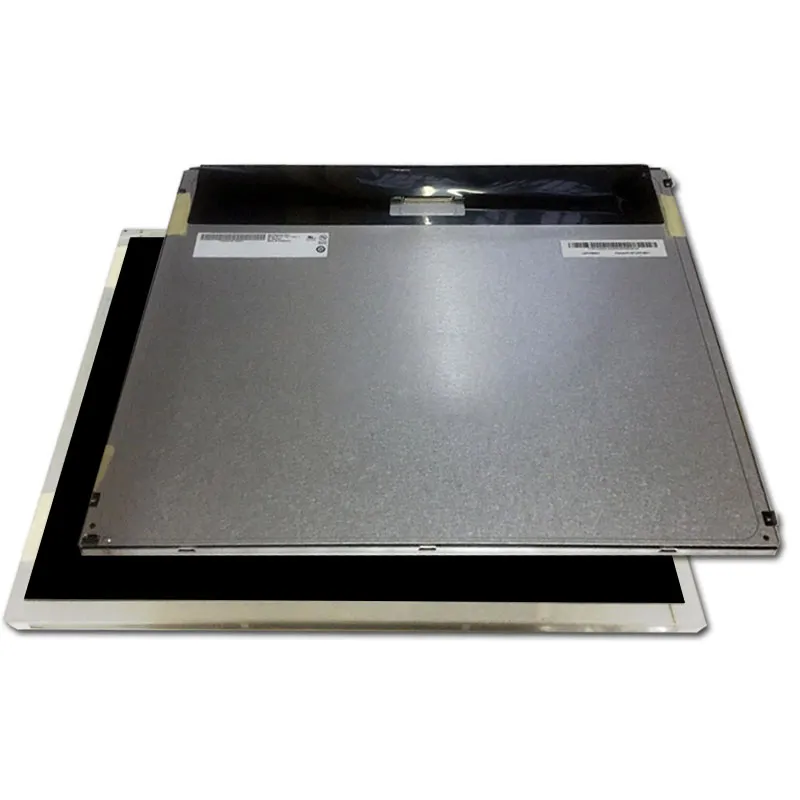

G170ETN03.1 AU Optronics LCD Panel 17 inch 1280*1024 Brightness 400cd/m²

UGS : DS50046
Taille :

Numéro de modèle

G170ETN03.1

Résolution :

Interface :

Température de fonctionnement :

-0℃~50℃

Luminosité (cd/m²) :

400

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

G170ETN03.1 AU Optronics LCD Panel  offering Resolution 1280*1024  Brightness 400cd/m²  Operating Temperature from -0~50℃ Interface LVDS 30 pin  Stable supply  Original A grade quality

Demande de tarification au volume







    Description

    AUO G170ETN03.1 Key Features

    The G170ETN03.1 AU Optronics LCD Panel is engineered for reliable performance in various applications, featuring a resolution of 1280 x 1024 pixels that delivers clear and detailed visuals. With a brightness level of 400 cd/m², this panel ensures good visibility in a range of lighting conditions, making it suitable for indoor environments. It operates efficiently within a temperature range of -0 to 50°C, providing dependable performance in moderate settings. The display utilizes a 30-pin LVDS interface, allowing for seamless integration into a variety of systems and enhancing its versatility across multiple applications. As an original A-grade quality product with a stable supply, the G170ETN03.1 is ideal for industrial automation, medical devices, and other applications requiring durable and high-performance display solutions.



    AUO G170ETN03.1 Application

    The G170ETN03.1 AU Optronics LCD Panel is versatile and well-suited for various applications across multiple industries. Its resolution of 1280 x 1024 pixels and brightness of 400 cd/m² make it ideal for industrial automation, where clear visual feedback is essential for control panels and human-machine interfaces (HMIs). The panel's operating temperature range of -0 to 50°C ensures reliable performance in standard indoor environments, making it suitable for use in medical devices, kiosks, and office displays. Additionally, its 30-pin LVDS interface allows for easy integration into consumer electronics and other electronic systems, providing consistent performance in applications that require high-quality display solutions. Overall, the G170ETN03.1 is an excellent choice for sectors such as manufacturing, healthcare, and retail.

    17.0" TFT-LCD Product Specifications

    Numéro de modèle G170ETN03.1
    Taille 17.0
    Résolution 1280*1024
    Dimension de l'ébauche 358.5*296.5*10.8
    Zone active 337.92*270.336
    Luminosité (cd/m²) 400
    Interface LVDS
    Voir la direction TN
    Température de fonctionnement -0~50
    Température de stockage -20~60
    Durée de vie des LED 30000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    17.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G170ETN03.1 17-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G170ETN03.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 17-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G170ETN03.1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G170ETN03.1 compare with the BOE DV170E0M-N30?

    Both catalog listings show 17 inches, 1280 × 1024 and LVDS. The catalog lists 0 °C to +50 °C for the AUO panel and −20 °C to +70 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE DV170E0M-N30

    Is the AUO G170ETN03.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G170ETN03.1

    Résolution :

    Interface :

    Température de fonctionnement :

    -0℃~50℃

    Luminosité (cd/m²) :

    400

    Prise en charge de l'écran tactile :

    Type d'affichage :
