Innolux AT070TN92 7" 800×480 TN Display Multi-Voltage Support (3.3V/10.4V/16V)

UGS : DS50212
Taille :

Numéro de modèle

T070TN92

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

250

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

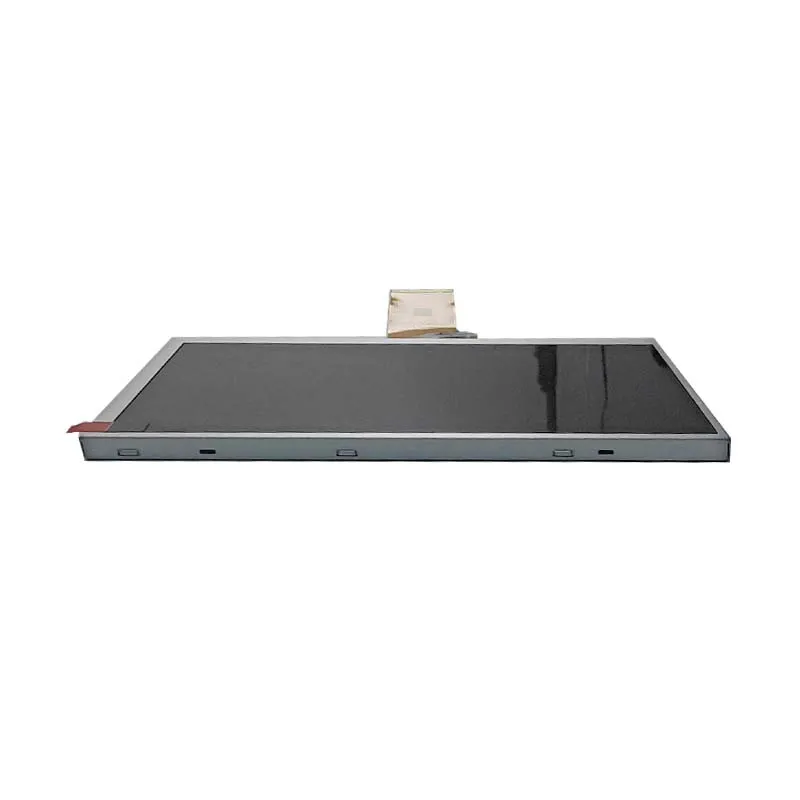

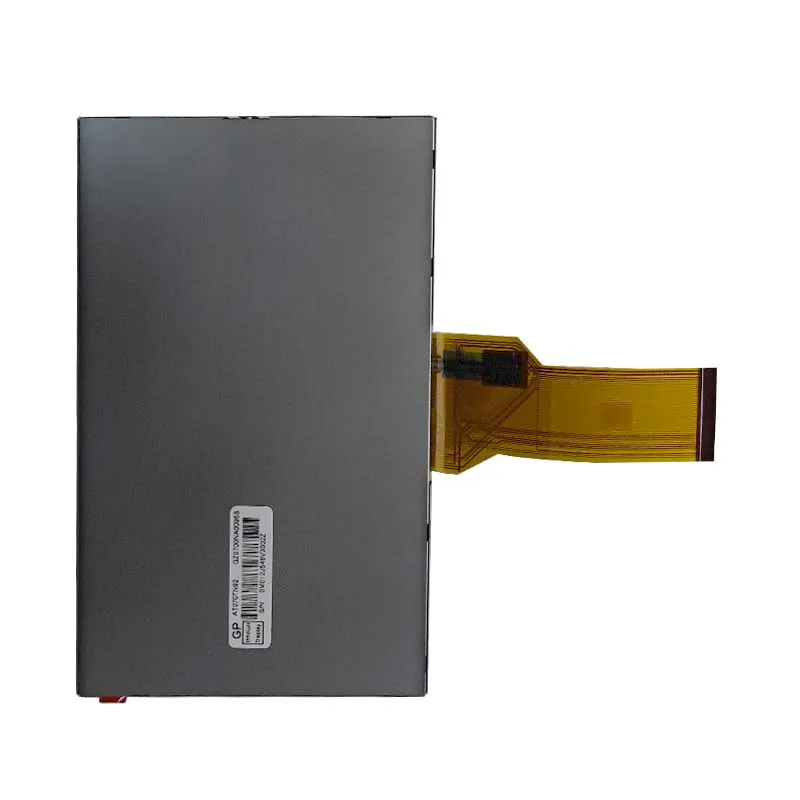

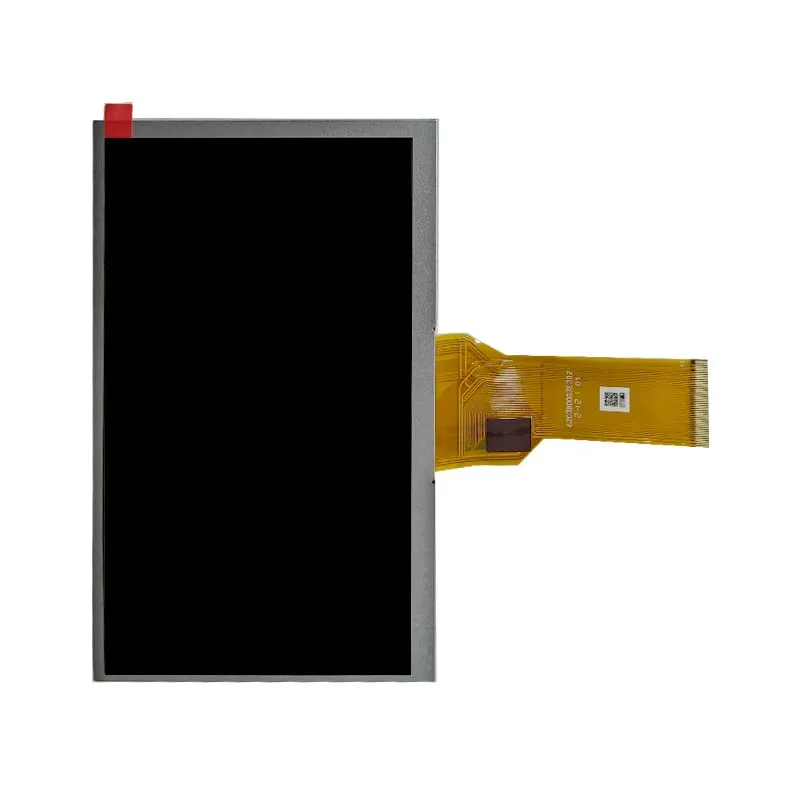

Innolux AT070TN92 Rugged RGB Display: -20°C~70°C Operation, Slim 6mm Profile, Built for EV & Energy Tech.

Demande de tarification au volume







    Description

    AT070TN92 General Desription

    The Innolux AT070TN92 is a 7-inch TN color LCD designed for versatile industrial integration. Featuring an 800:1 contrast ratio and 250 cd/m² brightness, it balances clarity with energy efficiency for low-to-moderate light environments. Its standout feature is multi-voltage compatibility (3.3V/10.4V/16V/-7V), enabling seamless adoption in hybrid power systems. The robust RGB interface ensures stable data transmission for critical operations, while the ultra-wide temperature range (-20°C~70°C) guarantees reliability in fluctuating climates. With a slim 6mm profile (164.9×100×6mm) and 20,000-hour LED lifespan, it’s engineered for long-term deployment in space-constrained, harsh-condition applications.



    Application & Performanc

    Ideal for electric vehicle dashboards, warehouse automation, and renewable energy controls, the AT070TN92 thrives where voltage flexibility matters. The 800:1 contrast enhances readability in dimly lit mining equipment or nighttime logistics displays. Multi-voltage support (3.3V/10.4V/16V) simplifies integration with legacy industrial PLCs, EV charging stations, and solar inverters. The RGB interface ensures compatibility with modern IoT gateways, while the -20°C~70°C range suits freezer monitoring systems and desert solar farms. Its 250 cd/m² brightness reduces glare in indoor factory HMIs, and the non-touch design prevents malfunctions in high-vibration environments like agricultural machinery or railway signaling systems.

    7.0" Product Specifications

    Taille de la diagonale 7.0"
    Nombre de pixels 800×480
    Luminance 250
    Module Size 164.9×100×6
    Zone active 154.08×85.92
    Direction de visualisation TN
    View Angle(U/D/R/L) 70/70/50/70
    Interface RVB
    Rapport de contraste 800:1
    Température de fonctionnement -20~70℃
    Température de stockage -30~80℃
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3/10.4/16.0/-7.0V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux AT070TN92 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux AT070TN92?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux AT070TN92?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux AT070TN92 compare with the AUO G070VTN02.0?

    Both catalog listings show 7 inches, 800 × 480 and RGB. The catalog lists −20 °C to +70 °C for the Innolux panel and −30 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G070VTN02.0

    Is the Innolux AT070TN92 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
