Écran tactile capacitif projeté 17,3 pouces pour l'industrie, G+G, IIC

UGS : DS40052-1
Taille :

Interface :

Thickness

3 mm

Structure

G+G

Touch IC

puce électronique

abc

Projected Capacitive Touch Panel, 17.3 inch multi- touch screen, G+G Structure, IIC interface, Idea for industrial control, commercial electrical, medical devices.

Demande de tarification au volume







    Description

    Projected Capacitive Touch Panel:

    Introducing our high-performance 17.3-inch Projected Capacitive Touch Panel, engineered for precision and durability in demanding environments. Featuring 10-point multi-touch responsiveness, this panel delivers seamless interaction for industrial, commercial, and interactive display applications.
    Advanced Features:
    ✓ In-house manufacturing reduces lead times significantly while proactively addressing potential quality variances through strict process controls, minimizing uncontrollable factors in production.
    ✓ Equipped with state-of-the-art testing facilities, we provide comprehensive environmental testing reports (e.g., high/low temperature resistance, drop tests) to validate product reliability under diverse conditions.
    ✓ Certified with CE/FCC/RoHS standards
    ✓ A dedicated technical team works collaboratively with clients to assess requirements from both engineering and operational perspectives, streamlining communication and reducing evaluation costs.



    17.3" Custom Capacitive Touch Panel
    Construction Cover Glass Thickness: 1.8 mm±0.05mm
    OCR Thickness: 0.2mm ± 0.05mm
    Sensor Thickness: 0.7mm ± 0.05mm
    Machanical Characteristics Touch size 17,3 pouces
    Outer Dimension 372.92*305.34
    View Area 337.92*270.34
    Zone active 339.92*272.34
    Cover Thickness 2.7
    Number of Touch 10
    Interface USB
    Controller Microchip

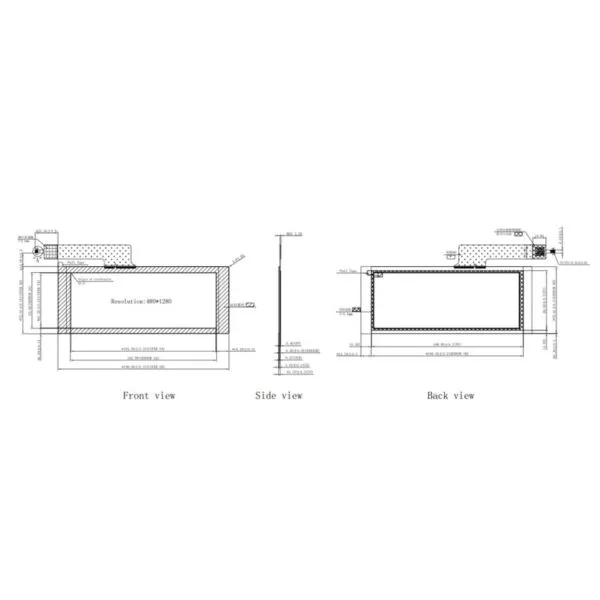

    capacitive touch drawings

    Télécharger

    17.3-Inch Capacitive Touch Panel FAQ

    Will this touch panel align with the visible area and opening of my display?

    Use the 17.3-inch diagonal to shortlist touch overlays, then check the exact drawing for fit. Superimpose the touch active area, glass outline and cable exit on the display and bezel drawings. Check cover thickness, edge overlap and clearance at the flex tail.

    Can my current host read touch input from this panel?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Send us the host and OS version and verify the exact touch controller and driver. Test coordinate mapping, orientation and resume after power loss.

    Should I use a touch overlay or a display with integrated touch?

    Compare the added glass thickness, reflections, attachment process and space for a separate touch cable. If gloves, moisture or precise edge input matter, compare both options in the finished front assembly.

    Can I customize the cover, flex cable, or touch settings for gloves and water?

    Send the active area, cover outline and thickness, flex exit and touch interface. We can review the glass and sensor stack, then agree glove and moisture conditions to try on a sample.

    Custom Touch Screen Solutions

    How much does a custom touch sample cost and how long does it take?

    Include drawings for the existing LCD, cover and flex, controller interface, quantities and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Interface :

    Thickness

    3 mm

    Structure

    G+G

    Touch IC

    puce électronique

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
