17.3 inch CTP Capacitive Touch Panel, G+G, USB, 3mm thickness

COD: DS40052-2

Dimensioni:	17.3 inch
Interfaccia:	USB
Thickness	3 mm
Structure	G+G
Touch IC	microchip

17.3 inch Custom CTP Capacitive Touch Panel, 10 point multi touch, G+G Structure, USB interface, Idea for industrial control, commercial electrical, medical devices.

$99.00

Descrizione

17.3 inch CTP Capacitive Touch Panel:

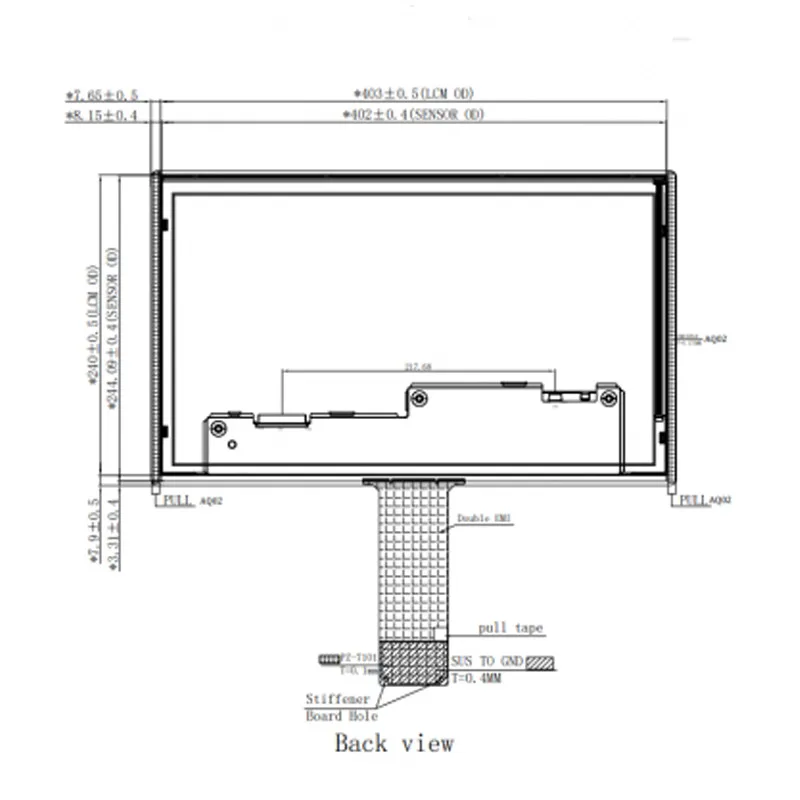

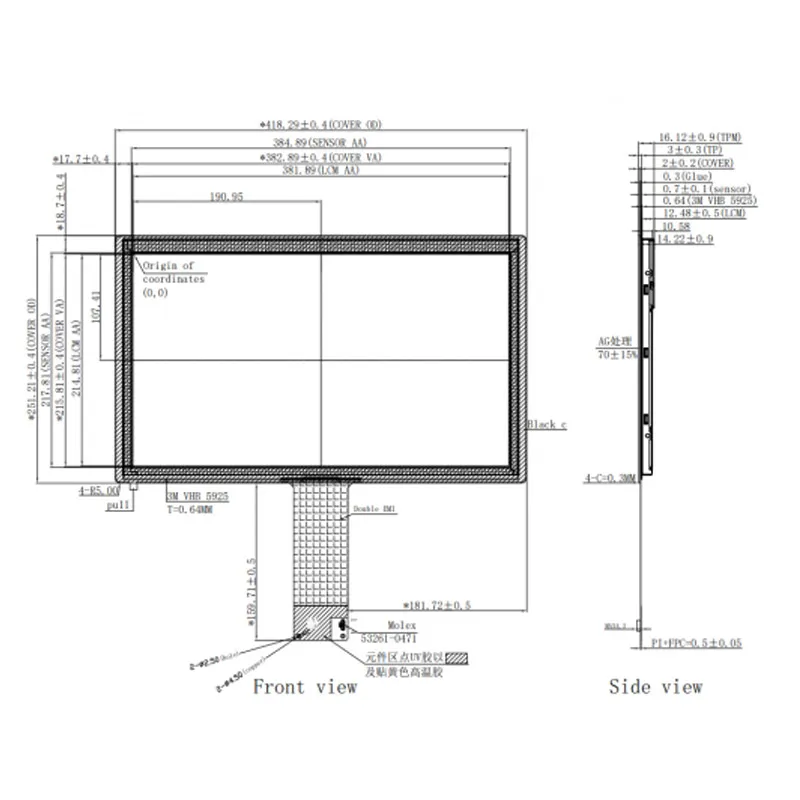

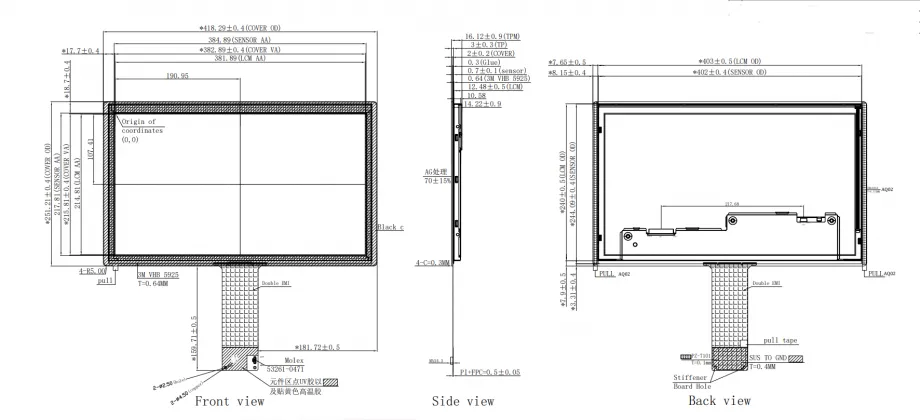

This touchscreen with Glass/Glass structure and a 16:9 (W:H) widescreen aspect ratio. The active area measures 381.89 × 214.81 mm, while the view area is slightly larger at 382.89 × 215.81 mm. With an outline dimension of 418.29 × 251.21 mm and a thickness of 16.12 mm, it offers robust physical dimensions for integration. The tail exit is positioned at 6 o’clock (bottom center) for cable management. It supports 10-point multi-touch with touch + gesture operation, enabling intuitive user interaction. We separate the controller to allow flexible integration, and use USB as the interface type for easy connectivity. Designed for versatile environments, it operates within a 0 ~ 70 °C temperature range, suitable for moderate industrial or commercial use.
Why Choose us? 3 reasons tell you:

In-house manufacturing reduces lead times significantly while proactively addressing potential quality variances through strict process controls, minimizing uncontrollable factors in production.
Equipped with state-of-the-art testing facilities, we provide comprehensive environmental testing reports (e.g., high/low temperature resistance, drop tests) to validate product reliability under diverse conditions.
A dedicated technical team works collaboratively with clients to assess requirements from both engineering and operational perspectives, streamlining communication and reducing evaluation costs

17.3 inch CTP Capacitive Touch Panel
Construction	Cover Glass	Thickness: 2 mm±0.2mm
	OCR	Thickness: 0.3mm
	Sensor	Thickness: 0.7mm ± 0.1mm
Machanical Characteristics	Touch size	17.3 inch
	Outer Dimension	418.29*251.81
	View Area	381.89*214.81
	Area attiva	391.89*214.81
	TP Thickness	3
	Number of Touch	10
	Interfaccia	USB
	Controller	Microchip
