2.8 Inch SPI TFT LCD Display 240x320 with Resistive Touch | ILI9341 LCD Module

COD: DS40069
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

100

Supporto per touchscreen:

Tipo di display:

2.8 inch TFT LCD display with 240×320 resolution, SPI interface and resistive touch panel. ILI9341 driver IC, operating temperature -20°C to 70°C. Ideal for industrial control and embedded systems.

Richiesta di prezzi a volume







    Descrizione

    2.8 inch SPI TFT LCD Features

    This 2.8 inch SPI TFT LCD display module features a resolution of 240×320 pixels and integrates the widely used ILI9341 driver IC, making it easy to interface with various embedded systems and microcontrollers.
    The display uses an SPI interface, which simplifies wiring and reduces pin usage, making it ideal for compact devices and development projects.
    This module also comes with a resistive touch panel, allowing reliable touch operation even when used with gloves or in industrial environments.
    The 2.8 inch TFT LCD with resistive touch is already in mass production, ensuring stable quality and reliable delivery. It is especially suitable for small and medium volume buyers who need flexible supply.

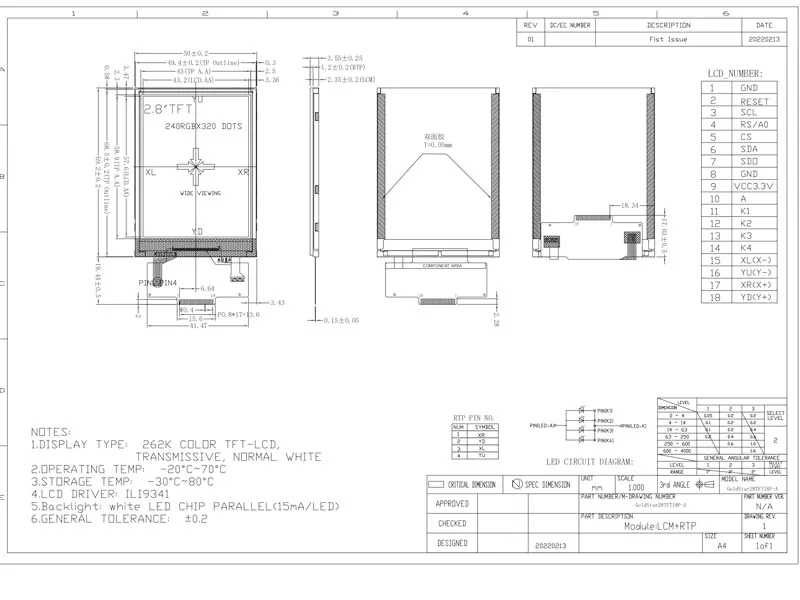

    240x320 SPI display

    Numero di modello  28TFT18P-A
    Dimensione  2.8
    Risoluzione 240*320
    Dimensione del contorno 50*69.2*2.35
    Area attiva 45*58.9
    Luminosità (cd/m²) 100
    Interfaccia SPI
    Visualizza la direzione TN
    Temperatura di esercizio -20℃ to 70℃
    Temperatura di stoccaggio -30℃ to 80℃
    Durata del LED 20000
    Supporto per touchscreen Resistive touch
    Rapporto di contrasto 250:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    2.8" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    2.8-Inch 240 × 320 SPI TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 2.8-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 240 × 320 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 100 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
