28.6 inch Outdoor Stretch Display AA 698.4mm (H) x196.43mm (V)

COD: DS30042
Dimensioni:

Risoluzione:

Interfaccia:

, ,

Temperatura di esercizio:

-0℃~50℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

28.6 inch Outdoor Stretch Display offering resolution 1920*540 pixels CPU RK3566 Memory 2GB Operating System android 11.0

Richiesta di prezzi a volume







    Descrizione

    28.6" Stretched LCD Monitors Features

    This 28.6 inch Outdoor Stretch Display features an LED backlight with a brightness range of 300 to 500 cd/m² and a resolution of 1920 x 540 pixels, providing vibrant visuals with a typical contrast ratio of 1200:1. It offers wide viewing angles of 89° in all directions and a fast response time of 6 ms (GtoG). Supporting 16.7 million colors (with options for 1.07 billion), the display is housed in a durable sheet metal frame. The active area measures 698.4 mm in height and 196.43 mm in vertical width, with overall dimensions of 733.5 mm x 235 mm x 49 mm. The shell color is black, with customization options available to suit different design preferences.



    28.6" Stretched LCD Monitors Application

    The device is powered by an RK3566 CPU and features 2GB of memory along with 16GB of built-in storage, running on Android 11.0. It supports network connectivity via Ethernet and Wi-Fi. The device is versatile in media playback, accommodating various video formats such as WMV, AVI, FLV, RM, RMVB, MPEG, TS, and MP4, with multiple playback modes including looping, timing, and inserting. It also supports image formats like BMP, JPEG, PNG, and GIF. Connectivity options include 2 USB 2.0 ports, 3 built-in TTL interfaces (with optional RS232 or RS485 interfaces), and 1 RJ45 port for 100M adaptive Ethernet. Additionally, the device features 1 HDMI port, supporting 1080P output, making it a comprehensive solution for multimedia applications.

    28.6" Stretched LCD Monitors Product Specifications

    Diagonal Size 28.6"(Diagonal)
    Pixel Number 1920*540 Pixels
    Area attiva 698.4mm (H) x196.43mm (V)

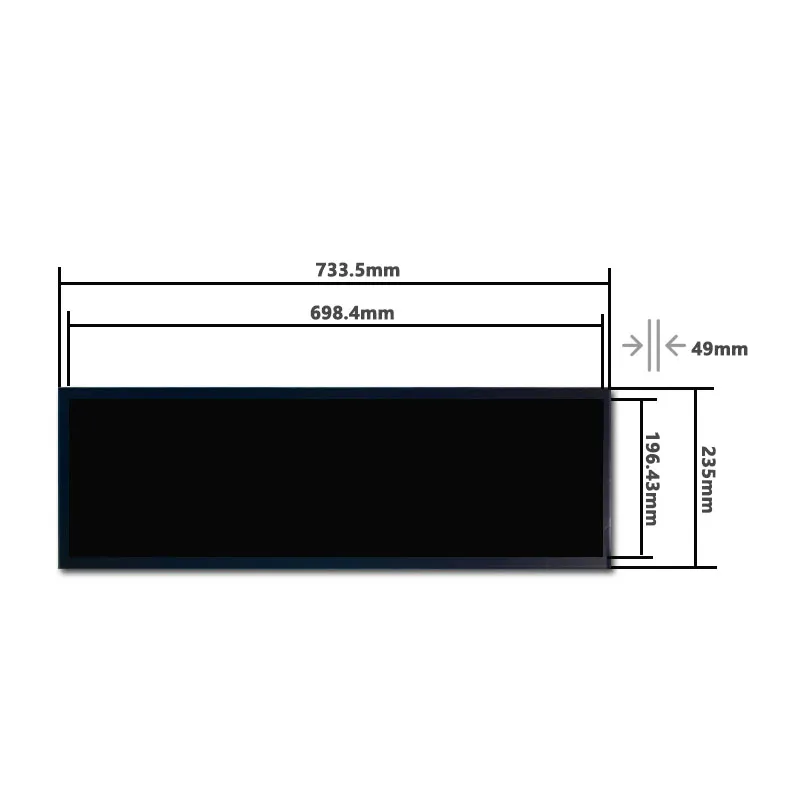

    Outline Dimensions 733.5mm*235mm*49mm
    CPU RK3566
    Memory 2GB
    Operating System Android 11.0
    Network support Ethernet, WIFI
    Video Format Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, loop, timer, insert
    Image Format Support BMP、JPEG、PNG、GIF
    USB 2 USB 2.0
    Ethernet 1 RJ45, 100M adaptive Ethernet
    HDMI 1, support 1080P output
    Touch Senza
    - -

    28.6" Stretched LCD Monitors Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    28.6-Inch 1920 × 540 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 28.6-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    Send us your source model and OS or firmware version so we can check the required interface, pinout and electrical limits against the exact product documentation. Check which port carries video and how power is supplied.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 540 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , ,

    Temperatura di esercizio:

    -0℃~50℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
