3.5 inch LCD Display 320x480 with MCU/SPI Interface ILI9488 IC

COD: DS30067
Dimensioni:

Risoluzione:

Interfaccia:

,

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

300

Supporto per touchscreen:

Tipo di display:

3.5 inch LCD Display, 320x480 resolution with MCU/SPI interface, Drive IC ILI9488, Ideal for E-bike, handheld device, and other electronic products.

Richiesta di prezzi a volume







    Descrizione

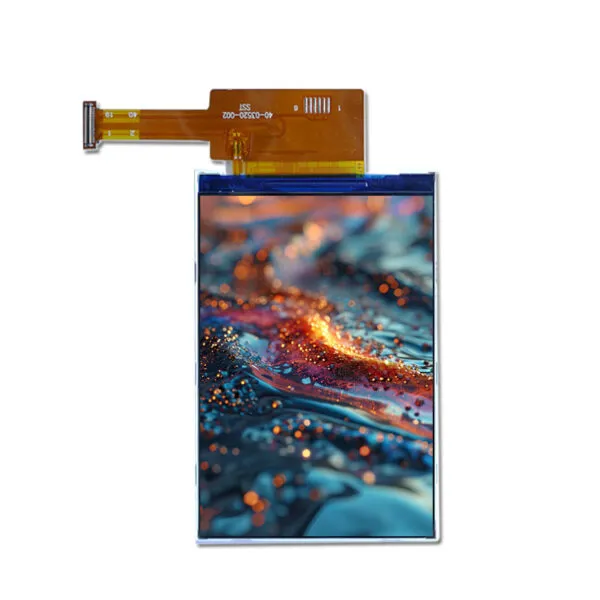

    3.5-Inch LCD Display Module (320x480 Resolution)

    Our 3.5 inch LCD display module features a resolution of 320x480, supporting both MCU and SPI interfaces for flexible integration.
    Customizable Options: Capacitive or resistive touch panels, interface modifications, and pin sequence adjustments available.
    Trusted Manufacturing: Over 15 years of factory production experience, with a professional R&D team providing technical support, design verification, and drawing review.
    Quality Assurance: Rigorous production quality control, 1-year warranty, and reliable after-sales support.
    Flexible MOQ: Small batch trial orders accepted to better support small and medium-sized enterprises.
    This module is an ideal solution for applications in industrial control, medical equipment, consumer electronics, and smart home devices.

    3.5" LCD Display Specifications

    Numero di modello LH035CIN01-A
    Dimensione 3.5
    Risoluzione 320*480
    Dimensione del contorno 54.5*83*2.34
    Area attiva 48.96*73.44
    Luminosità (cd/m²) 300
    Interfaccia MCU/SPI
    Visualizza la direzione TN
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen No
    Rapporto di contrasto 500:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    3.5" TFT Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    3.5-Inch 320 × 480 SPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    ,

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    300

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
