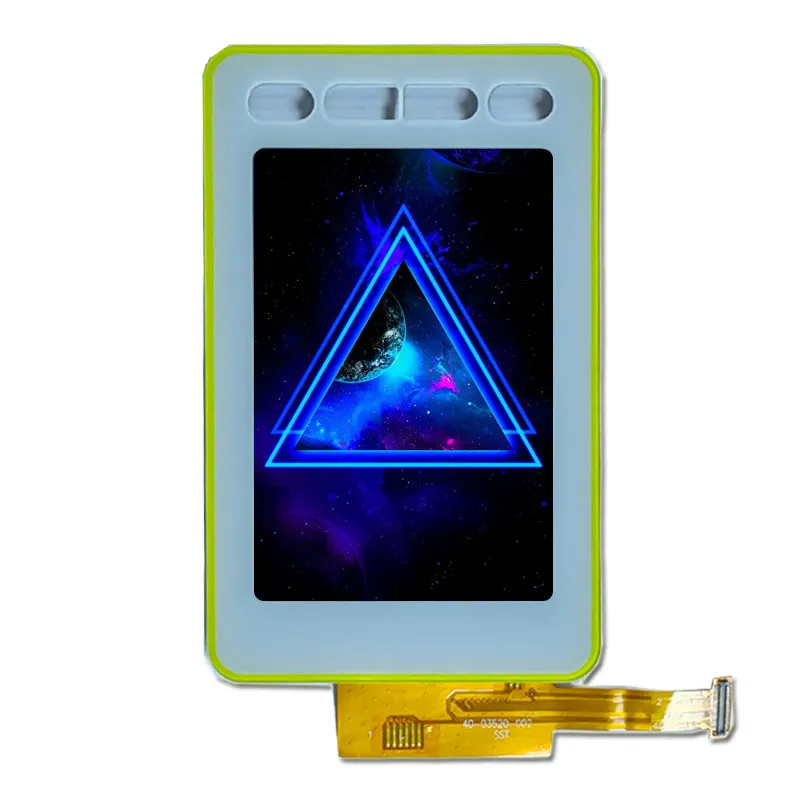

3.5 inch LCD Display Panel 320*480

COD: DS20111
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

3.5 inch LCD Display Panel  320*480 Pixels  Drive IC ST7796U  LCD TN Panel  Serial MCU Interface  With Cover Glass  Customized Touch Screen

Richiesta di prezzi a volume







    Descrizione

    3.5 inch LCD Display Panel Features

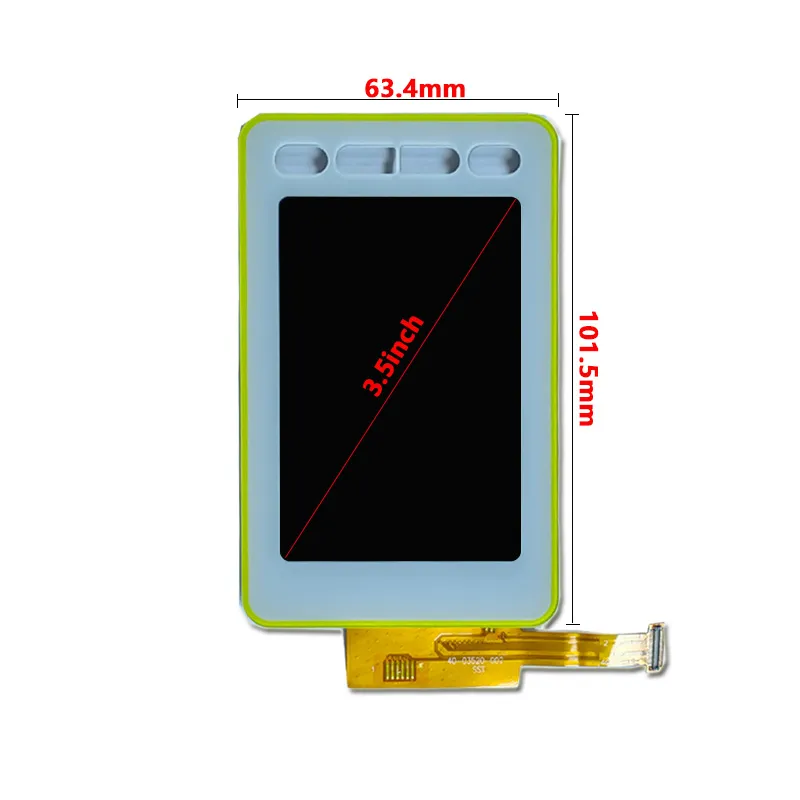

    The 3.5 inch LCD Display Panel with an active area of 48.96 mm x 73.44 mm and compact dimensions of 63.4 mm x 101.5 mm x 3.46 mm. It provides a viewing angle of 70°/70°/60°/60° and is optimized for a 12 o'clock viewing direction, with an operating temperature range of -20°C to 70°C and storage from -30°C to 80°C, it is suited for indoor and outdoor use in portable devices, industrial equipment, and consumer electronics.

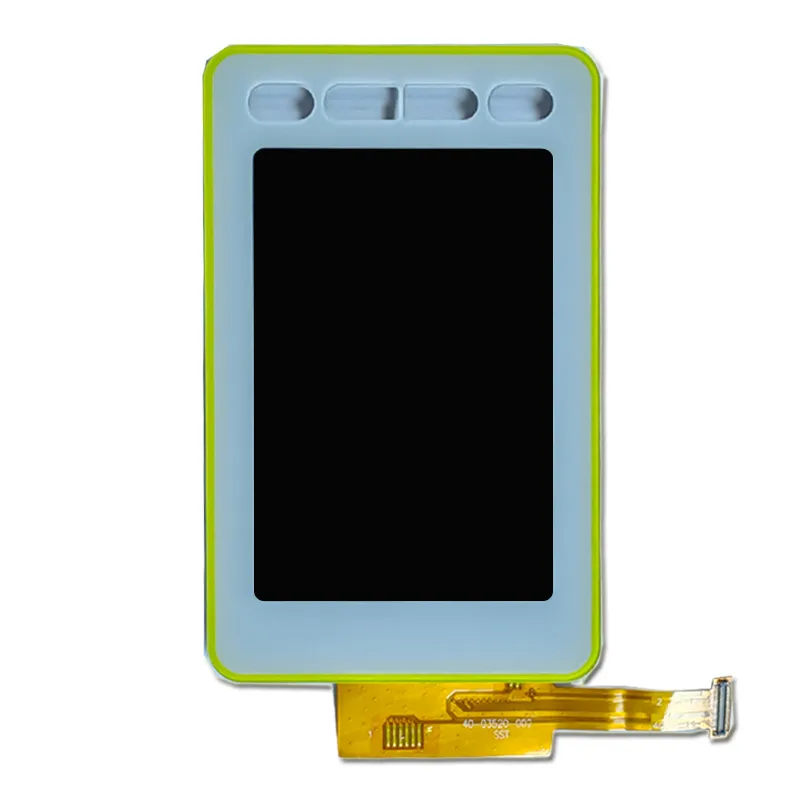

    3.5 inch LCD Display Panel with Cover Glass

    The 3.5 inch LCD Display Panel features a durable cover glass, that enhances protection against impacts, scratches, and environmental factors, making it ideal for industrial applications, portable devices, and rugged electronics. This protective layer shields the display, ensuring resilience in harsh conditions, such as rough handling, dust, or moisture exposure. Additionally, the cover glass improves optical clarity by reducing reflections and enhancing touch sensitivity, offering a more responsive and clear viewing experience. Overall, it ensures the display is suited for demanding environments while maintaining high visual performance.

    3.5" TFT-LCD Product Specifications

    Numero di modello  91-03520-002
    Dimensione 3.5
    Risoluzione 320*480
    Dimensione del contorno 63.4*101.5*3.46
    Area attiva 48.96*73.44
    Luminosità (cd/m²) 350
    Interfaccia MCU
    Visualizza la direzione 12 O"clock
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Senza
    Rapporto di contrasto 500:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    3.5" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    3.5-Inch 320 × 480 LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
