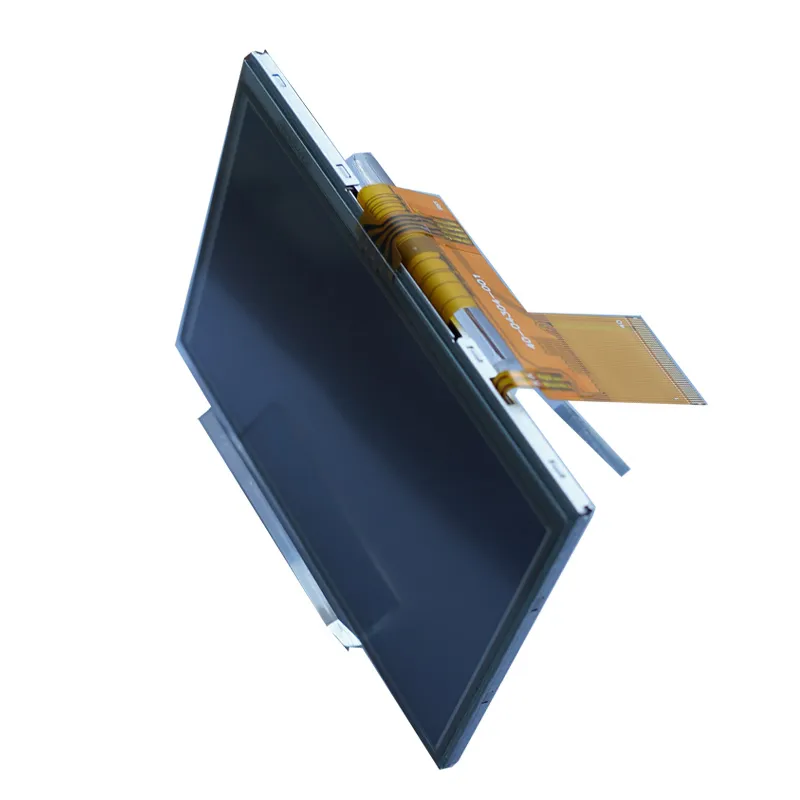

4.3 inch Resistive Touch Display 480*272

COD: DS20112
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

300

Supporto per touchscreen:

Tipo di display:

4.3 inch Resistive Touch Display  480*272 Pixels  Resistive touchscreen  LCD TN Panel  Serial RGB Interface

Richiesta di prezzi a volume







    Descrizione

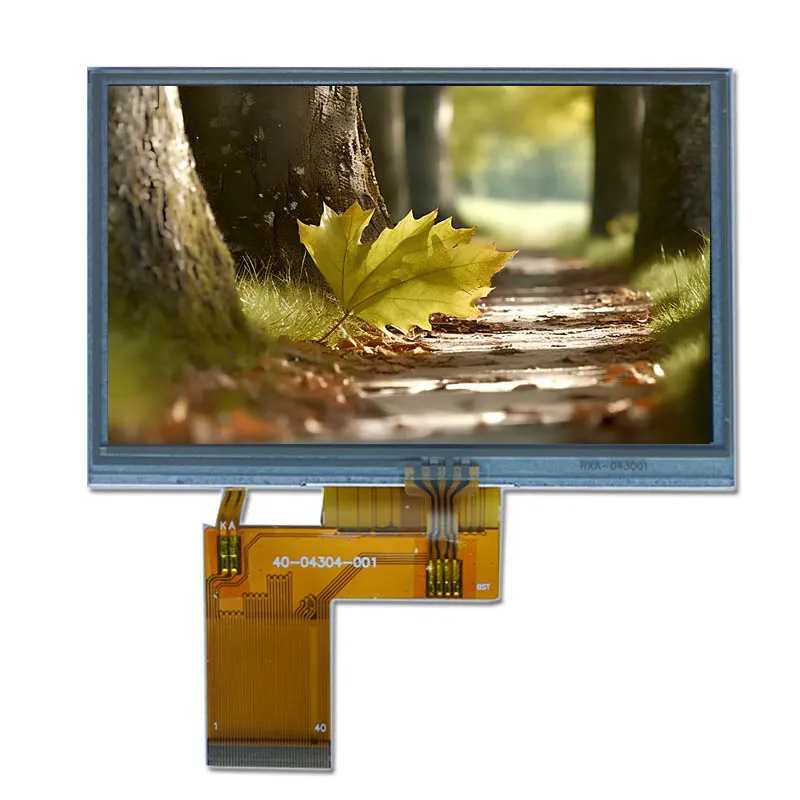

    4.3 inch Resistive Touch Display Features

    The 4.3 inch Resistive Touch Display active area measures 95.04 mm (W) x 53.86 mm (H), the module offers a viewing angle of 60° (Left/Right) and 50° (Up/Down) for good visibility from multiple perspectives and utilizes an RGB 40 interface for reliable data transfer. It operates effectively in a temperature range of -20°C to 70°C and can be safely stored from -30°C to 80°C, ensuring reliability in diverse environments.

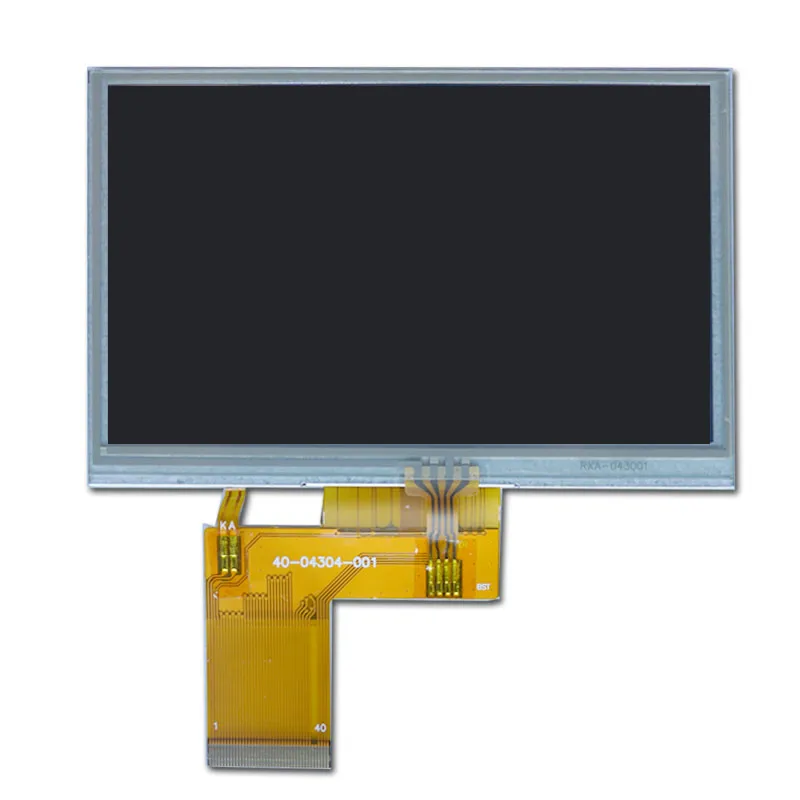

    4.3 inch Resistive Touch Display with 4 line

    The 4.3 inch LCD Display Module features a 4-line resistive touchscreen that enhances user interaction by reliably detecting pressure applied to the screen surface. Comprising two flexible transparent layers separated by a small gap, the touchscreen registers touch when pressure causes the layers to make contact. The 4-line configuration utilizes four wires to improve accuracy and responsiveness, making it particularly effective for applications that require precise input and feedback.

    4.3" TFT-LCD Product Specifications

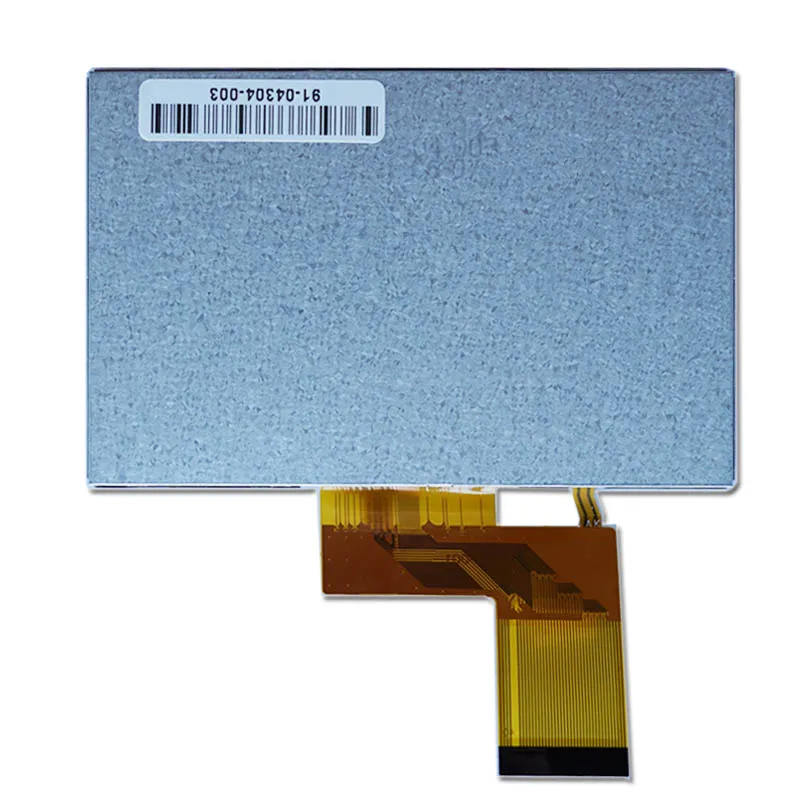

    Numero di modello  91-04304-003
    Dimensione 4.3
    Risoluzione 480*272
    Dimensione del contorno 134.8*77.82*5.2
    Area attiva 95.04*53.86
    Luminosità (cd/m²) 300
    Interfaccia RGB
    Visualizza la direzione 6 O"clock
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen capacitivo
    Rapporto di contrasto 500:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    4.3" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    4.3-Inch 480 × 272 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4.3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 272 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    300

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
