4.3 inch TFT Display 800*480 RGB Roughed

COD: DS20037
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

Tipo di display:

4.3 Wide temperature display  800*480 Pixels  Serial RGB Interface  40pin FFC Connection  Customized touch screen

Richiesta di prezzi a volume







    Descrizione

    4.3" TFT Display Overview

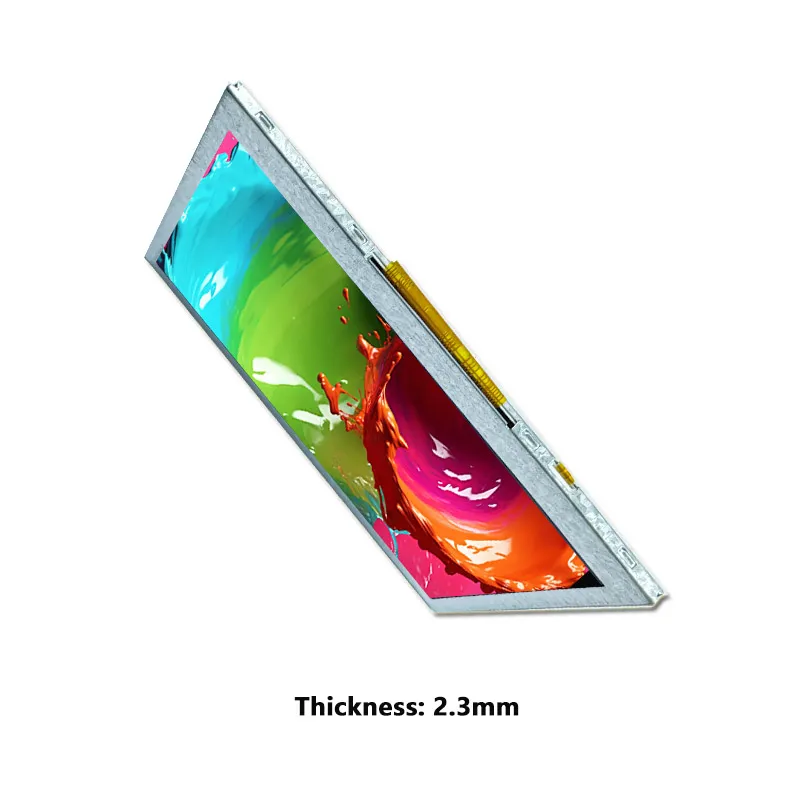

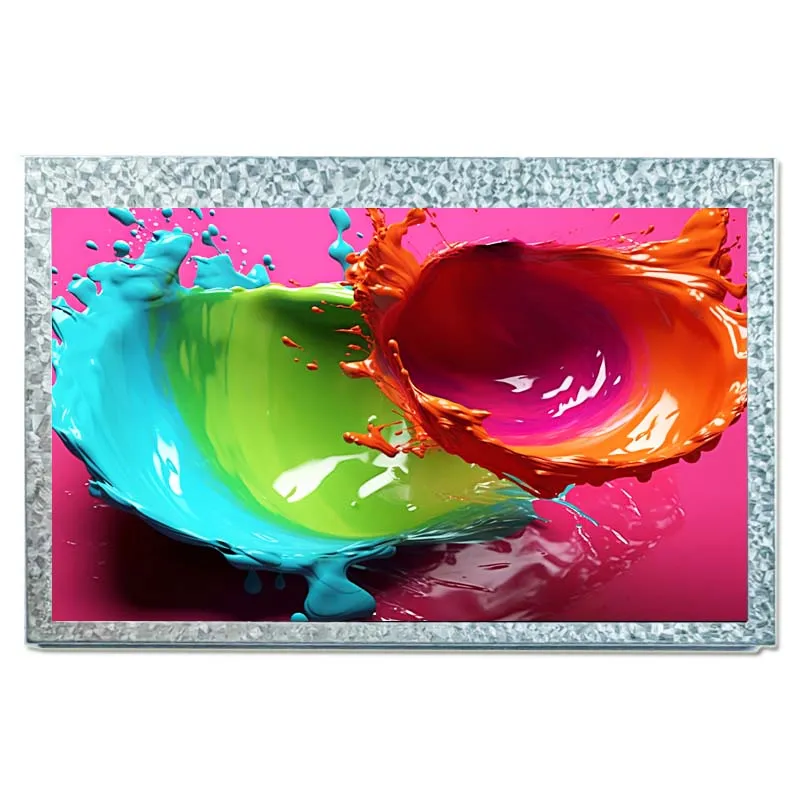

    The 4.3 inch Wide temperature display is a high-resolution screen designed for versatility and performance, featuring 800 x 480 pixels for clear visuals and an active area of 95.04 mm x 53.856 mm that maximizes user interaction. With sleek outline dimensions of 105.42 mm x 67.2 mm x 3 mm, it integrates seamlessly into various devices. The display offers an 80° viewing angle in all directions, ensuring good visibility from multiple angles, and a brightness of 350 cd/m² for clarity in various lighting conditions. It boasts a contrast ratio of 1200:1, delivering vibrant colors and sharp images, alongside an LED lifetime of 20,000 hours for reliable operation. Designed to operate in temperatures ranging from -20°C to 70°C, it is suitable for diverse environments and ensures reliability even in extreme conditions.



    4.3" TFT LCD with Wide Operation Temperature

    The 4.3-inch TFT LCD display operates effectively across a wide temperature range of -20°C to 80°C, making it ideal for various applications. Its ability to function in extremely cold environments, as low as -30°C, suits outdoor, automotive, and industrial uses, while its high-temperature tolerance of 80°C ensures reliable performance in hot settings, such as machinery control panels and devices exposed to direct sunlight. This broad operating range enhances the display's reliability and durability, minimizing the risk of malfunction in extreme conditions.

    4.3" TFT-LCD Product Specifications

    Numero di modello  90-04306-001
    Dimensione 4.3
    Risoluzione 800*480

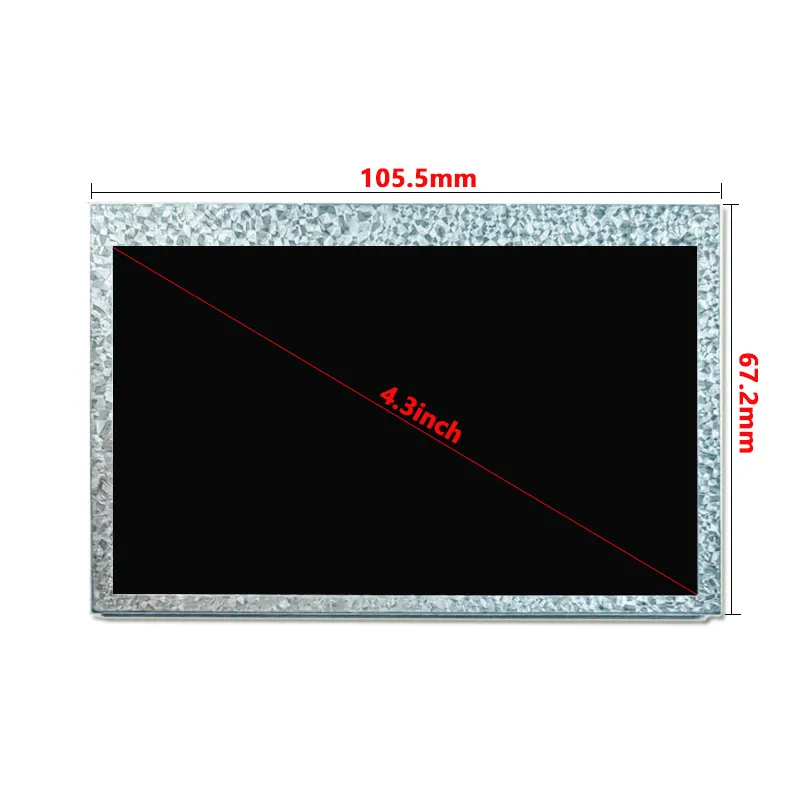

    Dimensione del contorno 105.42*67.2*3
    Area attiva 95.04*53.86
    Luminosità (cd/m²) 500
    Interfaccia RGB
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Witout
    Rapporto di contrasto 1200:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    4.3" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    4.3-Inch 800 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4.3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
