6.67" AMOLED Display Module | 1080×2400 MIPI | High Brightness Industrial Touch Screen

COD: DS10054
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

800

Supporto per touchscreen:

Tipo di display:

High-performance 6.67-inch AMOLED display module with Full HD+ resolution, 120Hz refresh rate, MIPI interface, and glove touch support. Ideal for industrial, medical, and outdoor applications.

Richiesta di prezzi a volume







    Descrizione

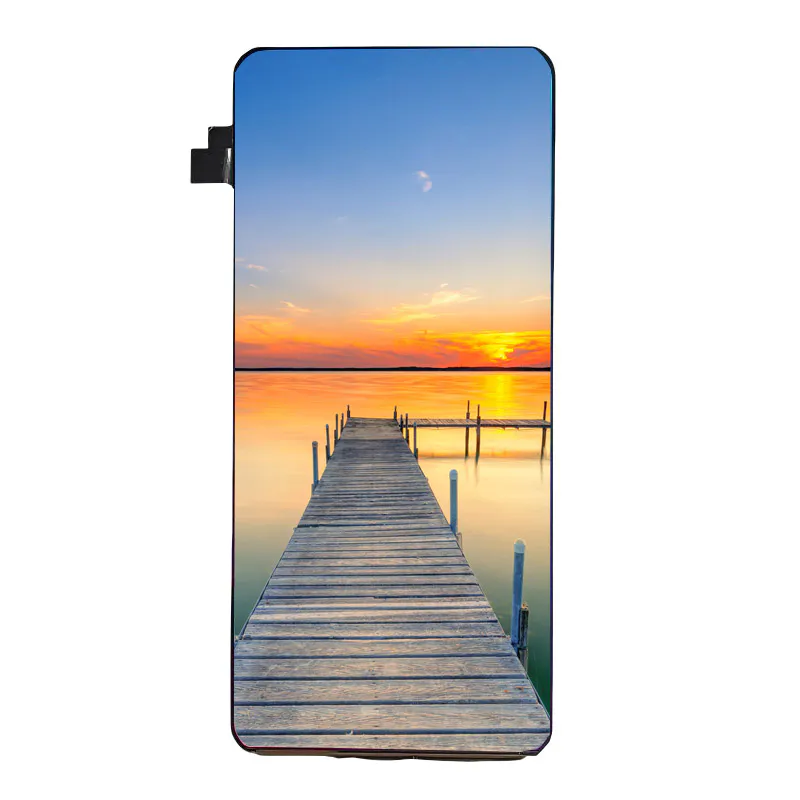

    6.67" AMOLED Display Module with MIPI Interface for Industrial Applications

    This 6.67 inch AMOLED display module is designed for high-end industrial and professional applications. Featuring a Full HD+ resolution and advanced AMOLED technology, it delivers exceptional contrast, vivid colors, and fast response time.
    With support for up to 120Hz refresh rate, glove touch, and operation under extreme temperatures, this module is ideal for outdoor devices, medical systems, smart terminals, and industrial control equipment.

    Industrial-Grade AMOLED Display for High-End Devices

    We are a 15-year-old factory specializing in LCD screens, touch screens, and supporting HDMI boards. With an independent R&D team, we provide Full HD+ Resolution (1080×2400)
    Up to 120Hz Ultra-Smooth Refresh Rate
    High Brightness up to 800 nits
    Wide Temperature Range (-30°C to 70°C)
    10-Point Multi-Touch (Glove & Wet Support)
    MIPI Interface for Easy Integration

    6.67" AMOLED Display Module Specifications

    Numero di modello G2667FP117FF-006
    Dimensione 6.67
    Risoluzione 1080*2400
    Dimensione del contorno 165.04*71.452
    Area attiva 154.56*69.552
    Luminosità (cd/m²) 800
    Interfaccia MIPI
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -40~80
    Durata del LED 20000
    Supporto per touchscreen No
    Rapporto di contrasto 100000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    6.67" OLED Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    6.67-Inch 1080 × 2400 MIPI Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 6.67-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1080 × 2400 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Use the listed 800 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    800

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
