7 inch Custom LCD Panels 800*480 pixels RGB Interface

COD: DS20066
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

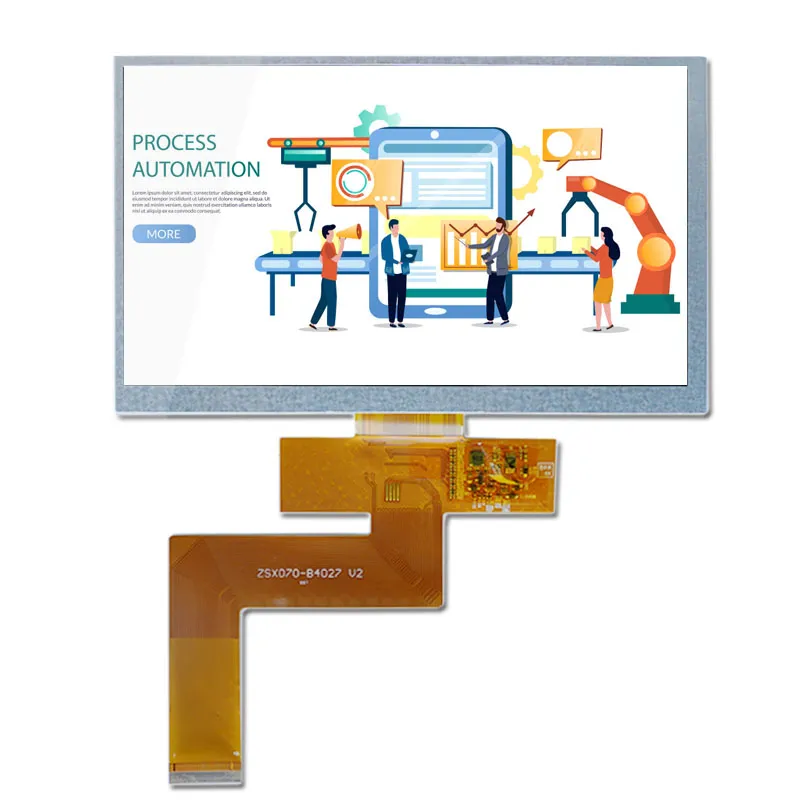

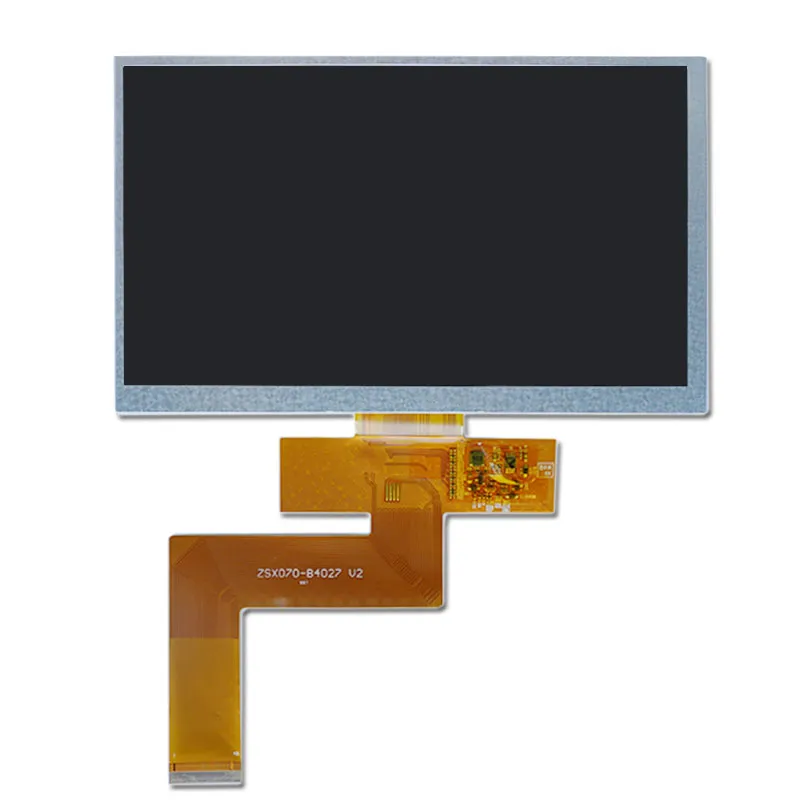

7 inch Custom LCD Panels, offering resolution 800*480 Pixels,  Serial RGB Interface, 40 pin FFC connection,  can custom touch screen, provide interactive display solutions

Richiesta di prezzi a volume







    Descrizione

    7" Custom LCD Panels Features

    This 7 inch custom lcd panels with a resolution 800x480 pixels, making it suitable for a wide range of applications in consumer electronics and industrial environments. It has an active area of 154.08mm x 85.92mm and compact overall dimensions of 164.9mm x 100mm x 5.7mm, allowing for easy integration into various device designs.



    Application for 7" TFT Screen

    The 7 TFT-LCD display module is particularly well-suited for embedded systems and various applications. In medical devices, its clarity and reliability make it ideal for diagnostic equipment and patient monitoring systems, where accurate information presentation is crucial for patient care. For point-of-sale systems, it offers a user-friendly interface that streamlines transactions and enhances customer experiences. Additionally, the display can be integrated into smart home control panels, allowing users to manage systems like lighting, security, and HVAC settings through an interactive interface. It is also suitable for educational tools, such as tablets and interactive whiteboards, enabling engaging and interactive learning experiences for students in classrooms.

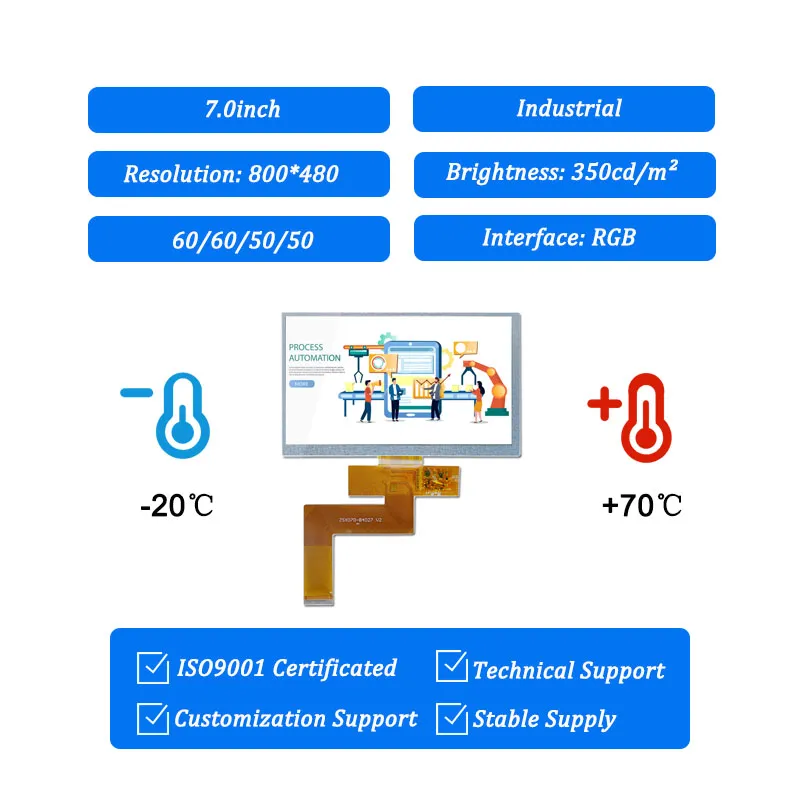

    7.0" TFT-LCD Product Specifications

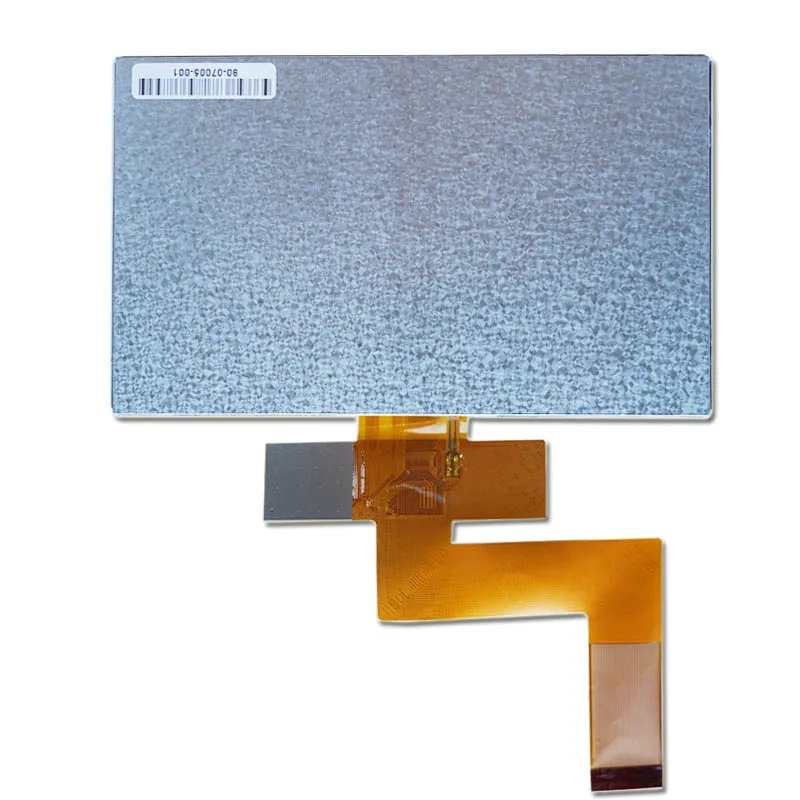

    Numero di modello  90-07005-001
    Dimensione 7.0
    Risoluzione 800*480
    Dimensione del contorno 164.9*100*5.7
    Area attiva 154.08*85.92
    Luminosità (cd/m²) 350
    Interfaccia RGB
    Visualizza la direzione 6 O"clock
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Senza
    Rapporto di contrasto 500:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    7.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    7-Inch 800 × 480 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 7-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
