8.8 Inch 1600x2560 MIPI TFT LCD Display With In‑Cell Capacitive Touch Scree

COD: DS20367
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-10℃~50℃

Luminosità (cd/m²):

400

Supporto per touchscreen:

Tipo di display:

8.8" IPS In‑Cell touch TFT LCD module, 1600×2560 resolution, 400nits brightness, MIPI interface, wide viewing angle, RoHS compliant. Support OEM ODM customization for industrial and smart device projects.

Richiesta di prezzi a volume







    Descrizione

    8.8 inch tft lcd display Key Features

    This 8.8‑inch IPS TFT‑LCD module is built‑in with in‑cell capacitive touch, featuring ultra‑high 1600×2560 resolution and 16.7M rich colors. Equipped with dual‑channel MIPI high‑speed interface, 400nits typical brightness and 1500:1 contrast ratio with full‑angle viewing performance. It delivers solid reliability for industrial equipment and smart terminal applications. RoHS compliant, OEM & ODM customizations are supported.

    Core Advantages

    1.✅ 8.8‑inch bar‑shaped IPS full‑view module with integrated In‑Cell capacitive tou
    2.✅ Ultra‑high resolution 1600(RGB)×2560
    3.✅ Dual‑channel MIPI interface
    4.✅ RoHS Compliance

    Technical Specifications

    Numero di modello JLT088MN19196P61‑32D01‑01Y‑B
    Dimensione  8.8 inch
    Risoluzione 1600(RGB)*2560
    Dimensione del contorno 125.96 ×205.04 ×4.13(Typ.)
    Area attiva 118.46(H) ×189.54(V)
    Luminosità (cd/m²) 400
    Interfaccia MIPI
    Visualizza la direzione IPS
    Temperatura di esercizio -10~55
    Temperatura di stoccaggio -20~60
    Durata del LED 30000
    Supporto per touchscreen Incell capacitive touch screen
    Rapporto di contrasto 1500:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    8.8" TFT Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    8.8-Inch 1600 × 2560 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

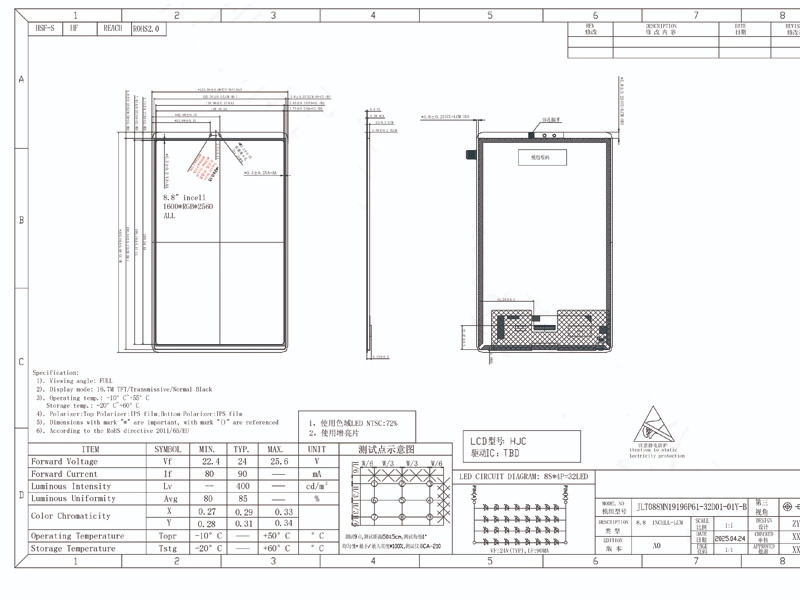

    Use the 8.8-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 1600 × 2560 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -10℃~50℃

    Luminosità (cd/m²):

    400

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
