9 inch 800*480 RGB LCD TN Panel

COD: DS20074
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

9 inch LCD TN Panel  800*480 Pixels  Serial RGBI Interface Customized touch screen  Provide total tft display solutions

Richiesta di prezzi a volume







    Descrizione

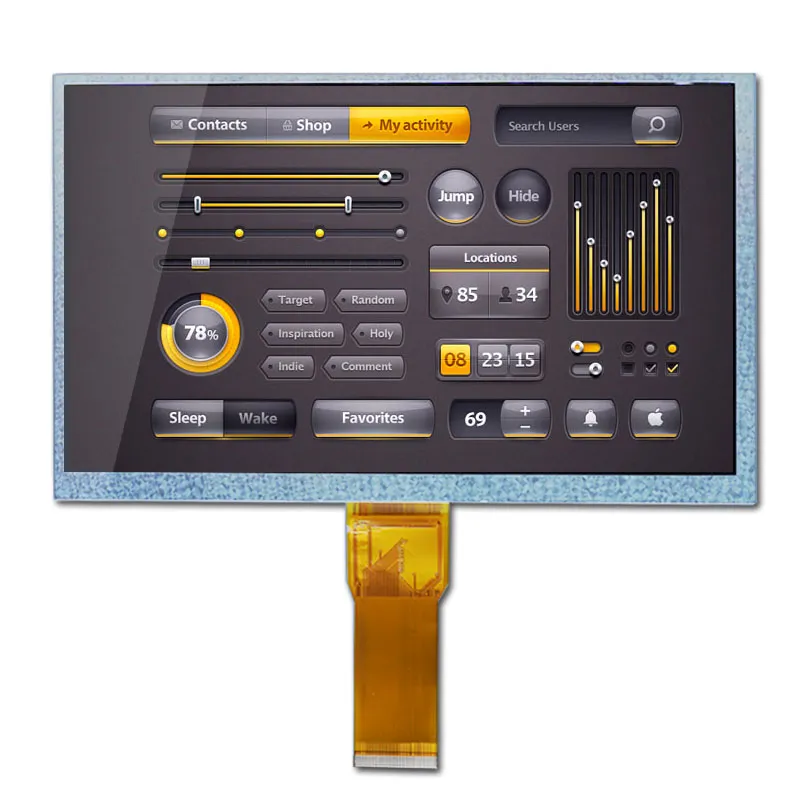

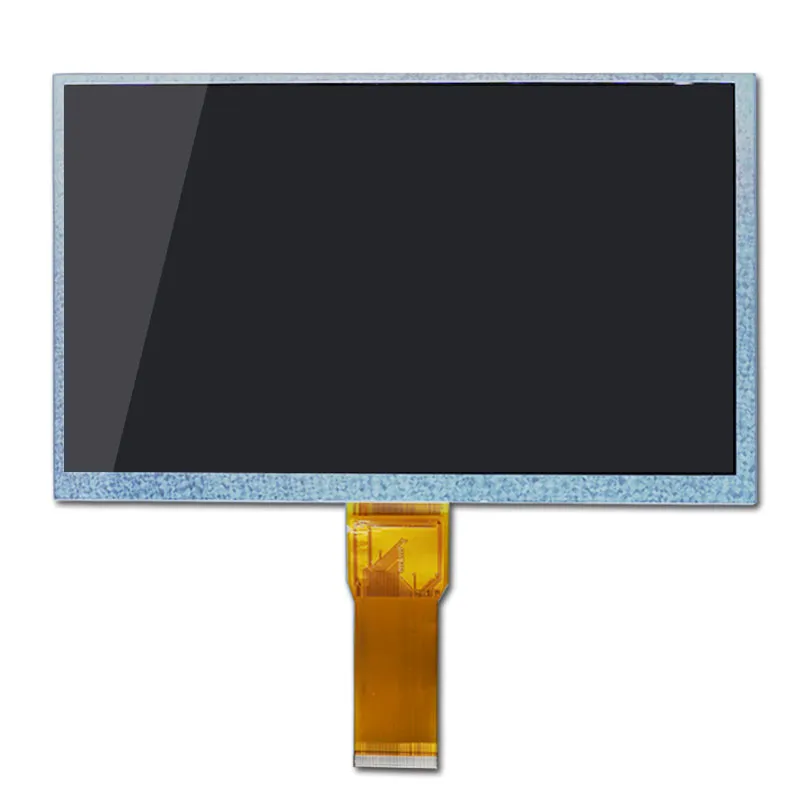

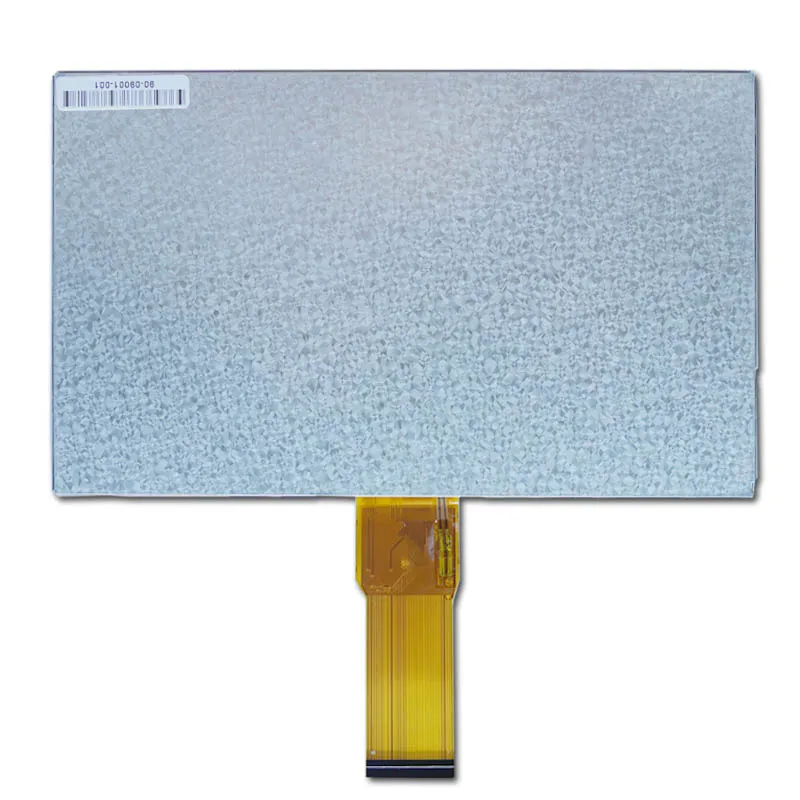

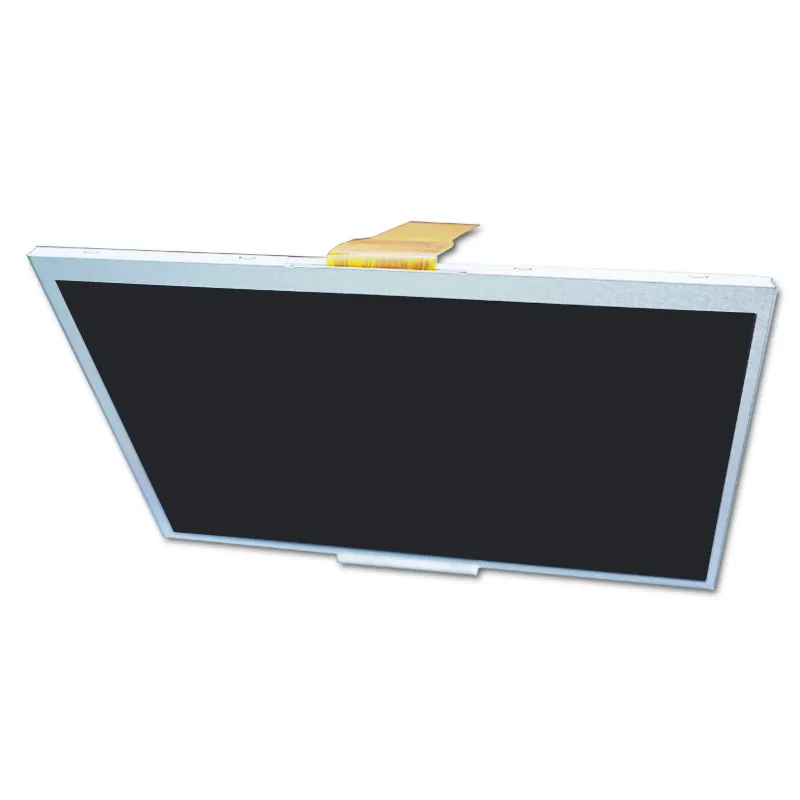

    9" TN LCD Panel Features

    The 9 inch LCD TN Panel features a 50-pin RGB interface that facilitates smooth and fast communication with host devices, allowing for seamless integration. Its 20,000-hour LED lifetime ensures long-lasting backlighting, minimizing the need for frequent replacements. With an active area of 198mm x 111.696mm, the display maximizes usable screen space, making it ideal for content-rich applications. Additionally, the module is designed to operate reliably within a temperature range of -20°C to 70°C, making it suitable for both indoor and semi-outdoor environments.



    Wide Application for 9" LCD Panel

    The 9 inch TFT-LCD display is designed for low power consumption through the use of energy-efficient LED backlighting, adaptive brightness control, and optimized power usage. These features make it an ideal choice for applications where energy efficiency and long operational life are essential, such as portable electronics and industrial devices.

    9.0" TFT-LCD Product Specifications

    Numero di modello  90-09001-BH1
    Dimensione 9.0
    Risoluzione 800*480
    Dimensione del contorno 210.7*126.4*5.3
    Area attiva 198*111.696
    Luminosità (cd/m²) 350
    Interfaccia RGB
    Visualizza la direzione 6 O"clock
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Senza
    Rapporto di contrasto 500:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    9.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    9-Inch 800 × 480 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 9-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
