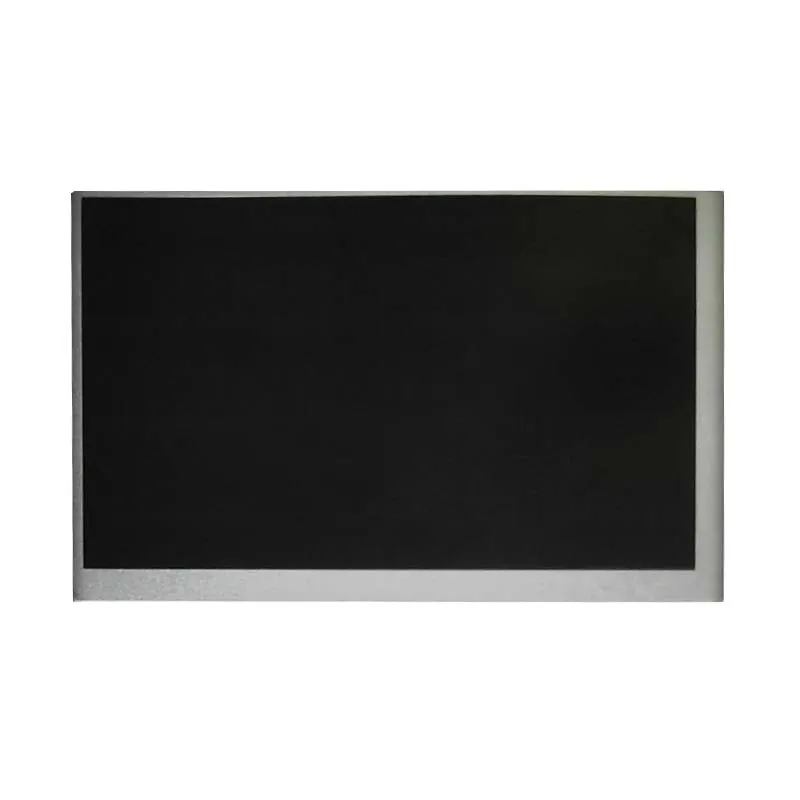

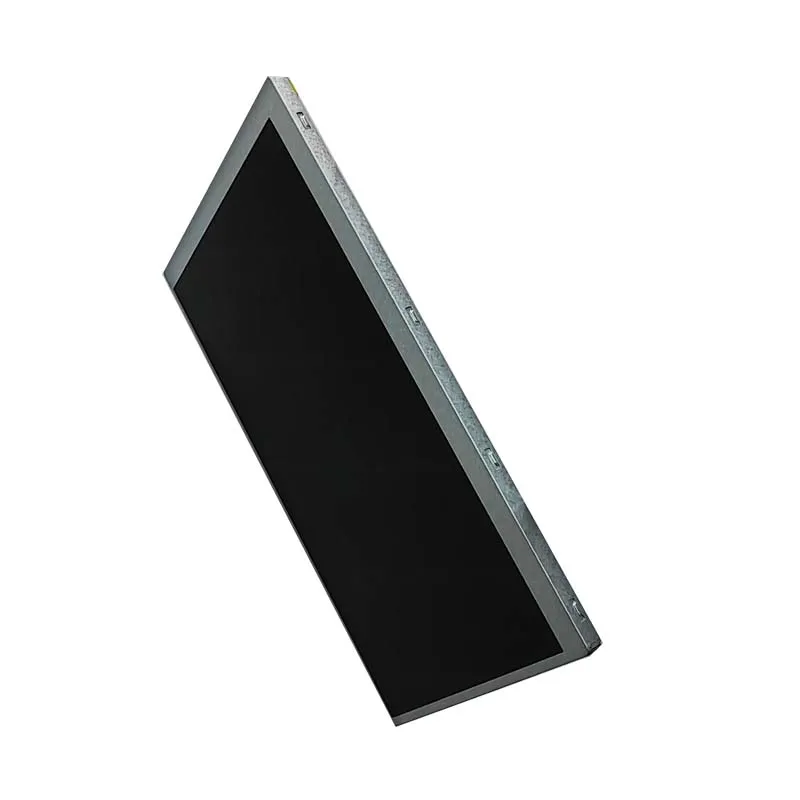

Innolux G070Y2-T02 7 inch Ultra-Slim TTL LCD Panel - 800×480 Resolution, 500cd/m² Brightness

COD: DS50226
Dimensioni:

Numero di modello

G070Y2-T02

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-35℃~85℃

Supporto per touchscreen:

Tipo di display:

Resources:

Innolux G070Y2-T02 7 inch Ultra-Thin TTL LCD for Harsh Environments. 500cd/m² Brightness, Multi-Voltage Support, -30°C~85°C Range.

Richiesta di prezzi a volume







    Descrizione

    G070Y2-T02 General Desription

    The Innolux G070Y2-T02 is a 7-inch TN LCD panel optimized for compact and power-efficient applications. Featuring an ultra-slim profile (6.83mm thickness) and 800×480 resolution, it delivers sharp visuals with 500 cd/m² brightness and 600:1 contrast ratio. The TTL interface ensures fast signal transmission, while multi-voltage support (3.3/10/19/-6.8V) enhances compatibility with diverse embedded systems. Designed for harsh environments, it operates reliably from -30°C to 85°C and offers a 50,000-hour LED lifespan. Its 70/70/60/60 viewing angle and rugged construction make it ideal for space-constrained, high-performance scenarios where durability and low power consumption (3.3V primary) are critical.



    Application & Performanc

    This display is engineered for industrial HMI, portable medical devices, automotive dashboards, and IoT terminals. The slim design suits handheld diagnostic tools, smart meters, and control panels in tight spaces. High brightness ensures readability in outdoor POS systems or construction equipment, while the wide temperature range supports operation in arctic logistics or desert environments. The TTL interface minimizes latency for real-time data display in robotics and automation. With shock-resistant specs and storage tolerance from -40°C to 95°C, it withstands extreme conditions in aerospace testing, marine navigation, and agricultural machinery.

    7.0" Product Specifications

    Diagonal Size 7.0 inch
    Pixel Number 800×480
    Luminance 500
    Module Size 165×104×6.83
    Area attiva 152.4×91.44
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/60/60
    Interfaccia TTL
    Rapporto di contrasto 600:1
    Temperatura di esercizio -30~85℃
    Temperatura di stoccaggio -40~95℃
    Durata del LED 50000
    Supporto per touchscreen Senza
    Alimentazione 3.3/10/19/-6.8V
    Tipo di display Color TFT

    Innolux LCD Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    Innolux G070Y2-T02 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G070Y2-T02?

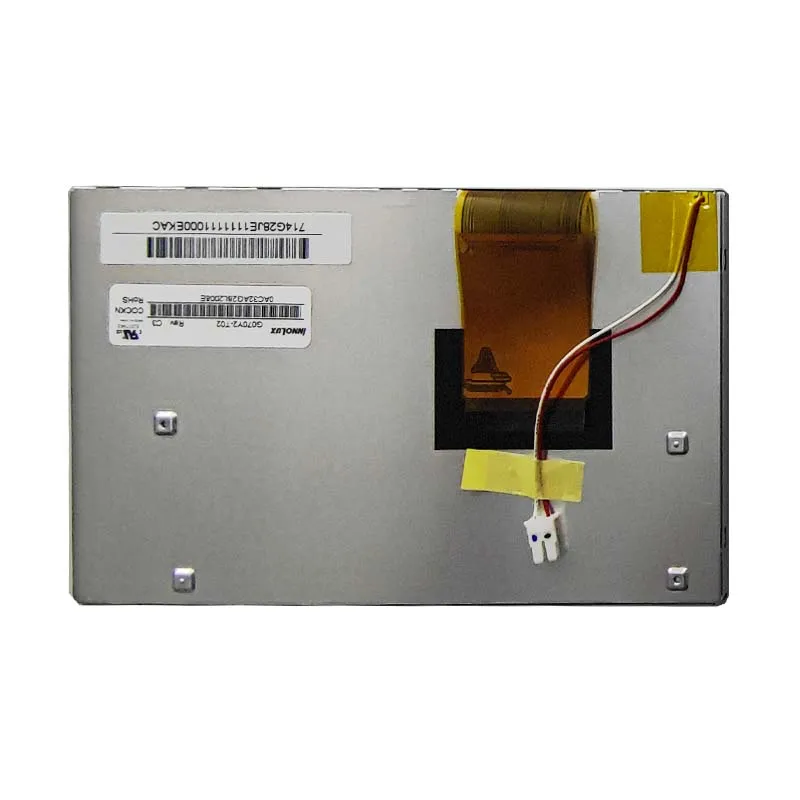

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing TTL cable and controller with the Innolux G070Y2-T02?

    For the listed TTL interface, match signal levels, timing and every connector pin before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux G070Y2-T02?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux G070Y2-T02 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G070Y2-T02

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -35℃~85℃

    Supporto per touchscreen:

    Tipo di display:
