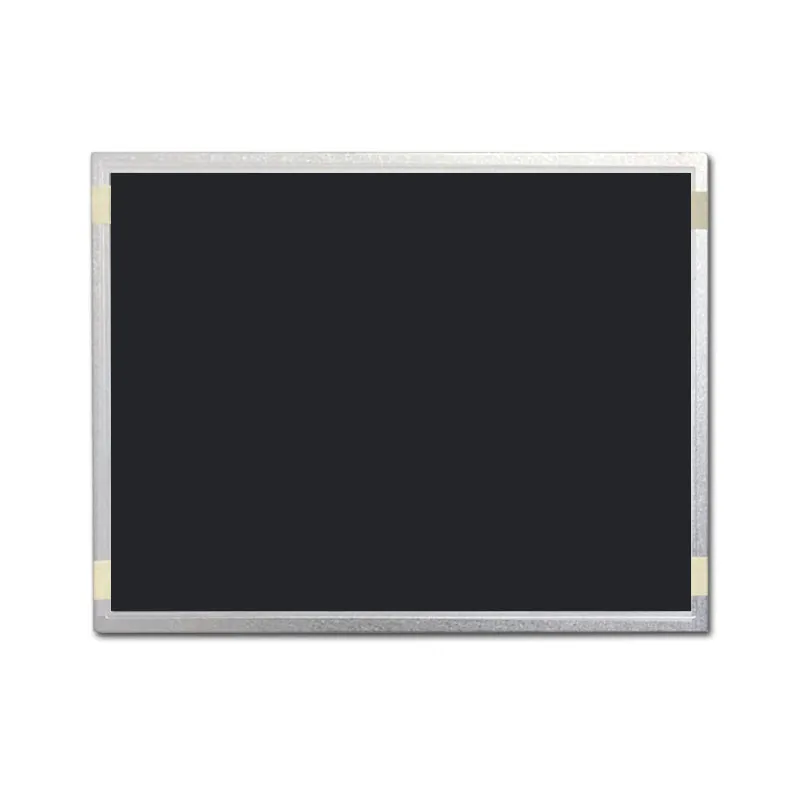

Innolux G150XNE-L03 15" Rugged Screen - 1024x768, 300nits, -30~70°C, LVDS

COD: DS50201
Dimensioni:

Numero di modello

G150XNE-L03

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

300

Supporto per touchscreen:

Tipo di display:

Resources:

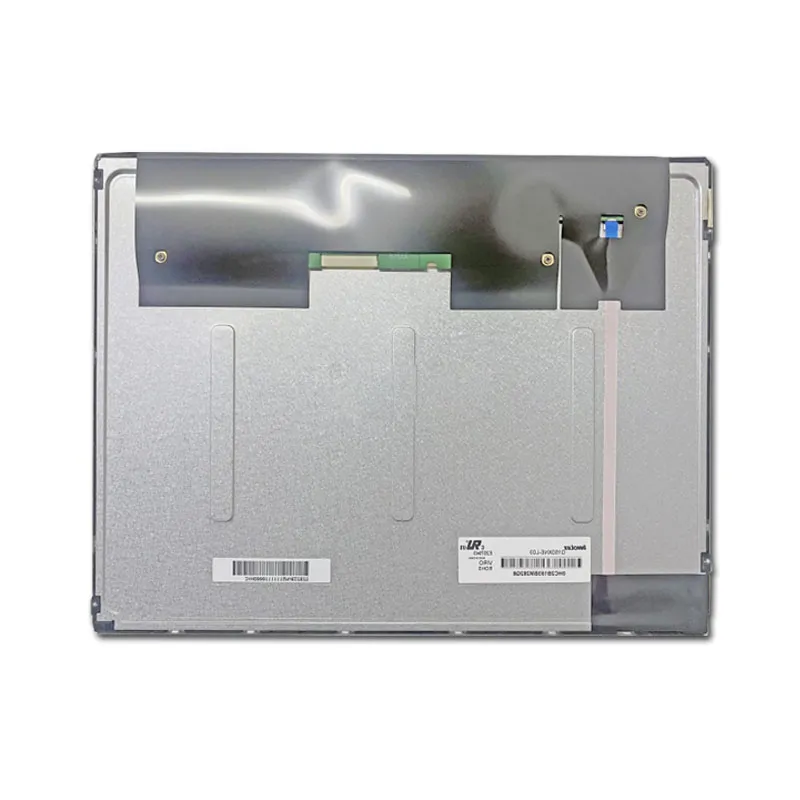

Industrial-Grade Reliability! Innolux G150XNE-L03: 15" IPS, 1024x768, 300nits, -30°C~70°C, 70K Hrs, LVDS

Richiesta di prezzi a volume







    Descrizione

    Innolux G150XNE-L03 General Description

    Innolux G150XNE-L03 – a 15-inch IPS industrial display designed for demanding environments and seamless integration. With 1024x768 resolution and 300nits brightness, this panel ensures sharp visuals and 178° wide viewing angles, ideal for control systems, medical devices, and outdoor equipment.
    Engineered for extreme conditions, it operates flawlessly in -30°C to 70°C temperatures and delivers an industry-leading 70,000-hour lifespan (2.5x longer than standard displays). The LVDS interface guarantees stable signal transmission for industrial PCs, embedded systems, and legacy hardware, while IPS technology maintains color consistency under harsh lighting.
    Key Advantages:
    ✅ Rugged Performance: Shock/vibration-resistant design for mining, agriculture, and factory automation.
    ✅ Extended Durability: 70K-hour lifespan minimizes downtime in 24/7 operations.
    ✅ Adaptive Brightness: 300nits with optional anti-glare coating for readability in variable lighting.
    ✅ Legacy Compatibility: LVDS support ensures plug-and-play integration with existing systems.



    G150XNE-L03 Rugged Screen Application

    Industrial HMIs and control panels
    Medical diagnostic equipment displays
    Fleet management and transportation systems
    Energy/power grid monitoring terminals
    Customization options include enhanced sunlight readability, resistive touchscreens, and EMI shielding for specialized needs.

    15" TFT-LCD Product Specifications

    Numero di modello G150XNE-L03
    Dimensione 15.0
    Risoluzione 1024(RGB)×768
    Dimensione del contorno 326.5×253.5×9.6
    Area attiva 304.128×228.096
    Luminosità (cd/m²) 300
    Interfaccia LVDS
    Visualizza la direzione IPS
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~70
    Durata del LED 70000
    Supporto per touchscreen Senza
    Rapporto di contrasto 2000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    15" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    Innolux G150XNE-L03 15-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G150XNE-L03?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G150XNE-L03?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G150XNE-L03 compare with the AUO G150XTN06.4?

    Both catalog listings show 15 inches, 1024 × 768 and LVDS. The catalog lists −20 °C to +70 °C for the Innolux panel and −30 °C to +85 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G150XTN06.4

    Is the Innolux G150XNE-L03 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G150XNE-L03

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    300

    Supporto per touchscreen:

    Tipo di display:
