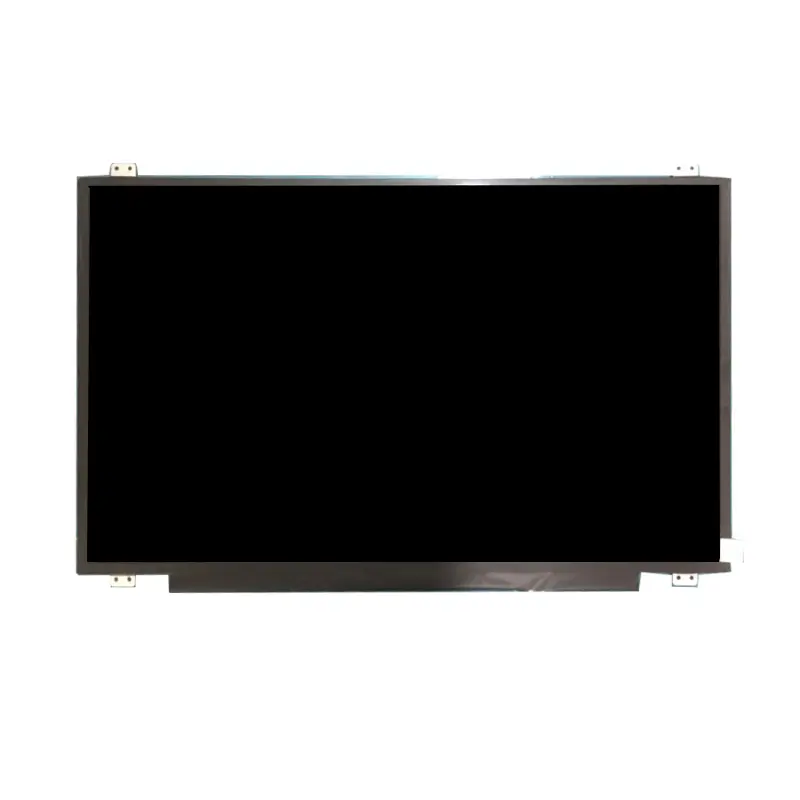

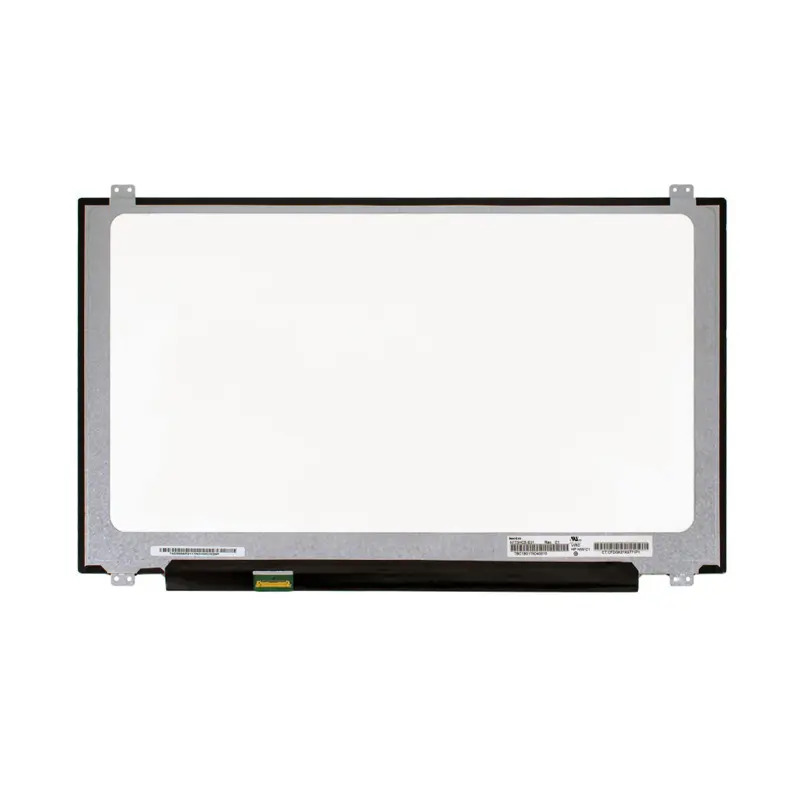

Innolux N173HCE-E31 17.3-inch FHD IPS Industrial LCD Display with 300cd/m² Brightness, eDP Interface

COD: DS50276
Dimensioni:

Numero di modello

N173HCE-E31

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-0℃~50℃

Supporto per touchscreen:

Tipo di display:

Innolux n173hce-e31 High-Brightness IPS Display for Demanding Environments" – Engineered with 300cd/m² brightness and 700:1 contrast, this 17.3-inch FHD screen thrives in industrial and outdoor settings.

Richiesta di prezzi a volume







    Descrizione

    N173HCE-E31 General Desription

    The Innolux N173HCE-E31 is a 17.3-inch Full HD (1920×1080) LCD display designed for industrial and professional use. Featuring IPS technology, it delivers consistent 89/89/89/89 viewing angles and a brightness of 300cd/m², ensuring clarity in high-light environments. The eDP interface guarantees stable signal transmission, while its slim 4mm profile and 381.888×214.812mm active area optimize space efficiency. With a contrast ratio of 700:1 and a wide operating temperature range (-0°C to 50°C), this display excels in reliability. Its 15,000-hour LED lifespan and industrial-grade construction make it ideal for demanding applications.



    Application & Performanc

    The N173HCE-E31 is engineered for rugged environments, including factory automation, medical devices, outdoor kiosks, and transportation systems. Its high brightness and IPS panel ensure readability under direct sunlight or harsh lighting. The extended temperature tolerance (-20°C to 60°C storage) suits extreme climates, while the eDP interface supports seamless integration with industrial PCs. Perfect for control panels, diagnostic equipment, and public information displays, it combines durability with vivid color accuracy. The ultra-thin bezel design and low power consumption (3.3V supply) further enhance its adaptability for compact and energy-efficient setups.

    17.3" Product Specifications

    Diagonal Size 17.3 inch
    Pixel Number 1920×1080
    Luminance 300
    Module Size 399.5×250.51×4
    Area attiva 381.888×214.812
    Viewing Direction IPS
    View Angle(U/D/R/L) 89/89/89/89
    Interfaccia eDP
    Rapporto di contrasto 700 : 1
    Temperatura di esercizio -0 ~ 50 °C
    Temperatura di stoccaggio -20 ~ 60 °C
    Durata del LED 15000
    Supporto per touchscreen Senza
    Alimentazione 3.3V
    Tipo di display Color TFT

    Innolux LCD Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    Innolux N173HCE-E31 17.3-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux N173HCE-E31?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 17.3-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing eDP cable and controller with the Innolux N173HCE-E31?

    For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux N173HCE-E31?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux N173HCE-E31 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    N173HCE-E31

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -0℃~50℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
