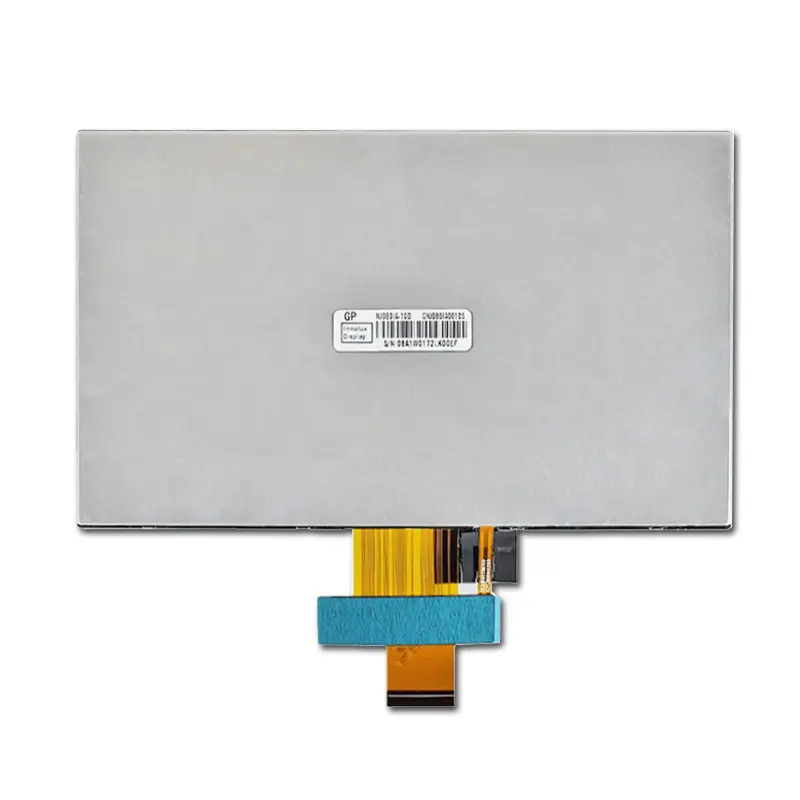

Innolux NJ080IA-10D 8 inch TFT Screen 1024×600 IPS

COD: DS50279
Dimensioni:

Numero di modello

J080IA-10D

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

Tipo di display:

Innolux NJ080IA-10D-8 inch lcd display, 1024×600, -20~70℃,IPS LCD panel for industrial, vehicle, medical, commercial electrical device

Richiesta di prezzi a volume







    Descrizione

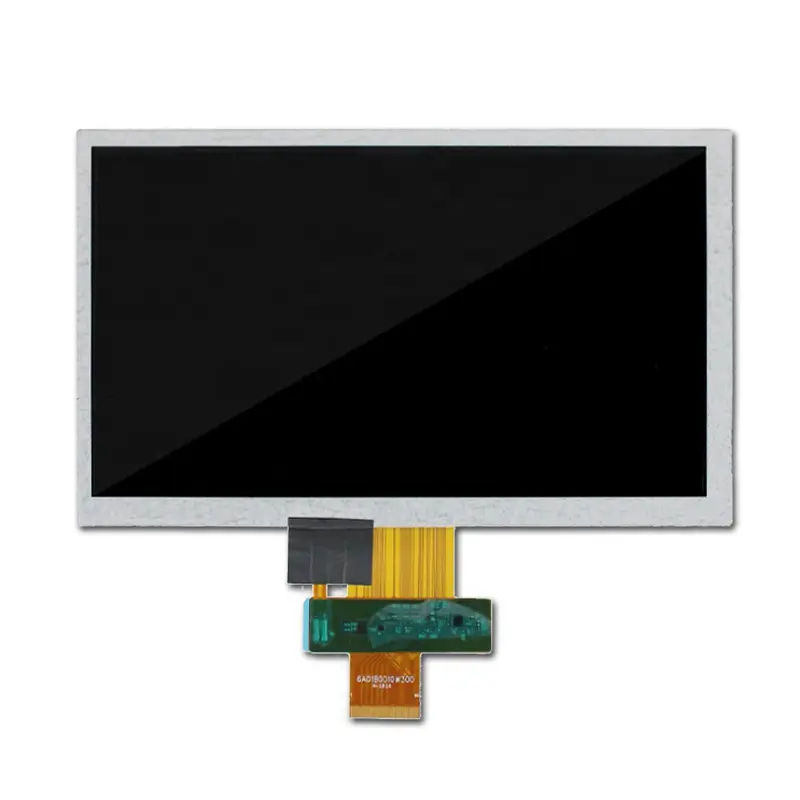

    Innolux NJ080IA-10D General Desription

    The Innolux NJ080IA-10D is an 8.0 inch a  Si TFT LCD module with an antiglare surface. It features a WSVGA resolution of 1024×600 (148PPI) in an RGB vertical stripe pixel format, with an active area of 176.64×99.36mm and an outline size of 192.8×116.9×6.7mm, Boasting a 500 cd/m² typical brightness and 1000:1 contrast ratio , it offers 85° wide - angle viewing in all directions (CR≥10) in AAS, normally black, transmissive mode. With a 25ms response time, it supports 16.7 million colors (70% NTSC) and is backlit by a 3S9P WLED with a 20,000 - hour lifespan, driverless. Operating at 60Hz, it also supports higher refresh rates via MEMC. Connecting through an 8 - bit, 1 - channel LVDS interface with a 40 - pin FPC, it requires 3.3V (DVDD), 13V (AVDD), 24V (VGH), and - 5.6V (VGL) inputs. Designed for automotive displays, it operates between - 20°C and 70°C and stores between - 30°C and 80°C.



    Why choose us?

    1)Innolux NJ080IA-10D  original package. Quality guarantee, products in stock
    2)Compared with the original manufacturer, we offer more flexible minimum order quantities. Whether you need just 1 unit for testing or require small-batch trial production, we can fulfill your order.
    3)Whether you're purchasing retail items or in small batches, we provide stockpiling prices. Of course, the larger the quantity you order, the more favorable the price will be.

    8" Product Specifications

    Diagonal Size  8 inch
    Pixel Number 1024×600
    Luminance 500
    Module Size 192.8×116.9×6.7
    Area attiva 176.64×99.36
    Viewing Direction IPS
    View Angle(U/D/R/L) 85/85/85/85
    Interfaccia LVDS
    Rapporto di contrasto 1000 : 1
    Temperatura di esercizio -20 ~ 70 °C
    Temperatura di stoccaggio -30 ~ 80 °C
    Durata del LED 20000
    Supporto per touchscreen Senza
    Alimentazione 3.3V
    Tipo di display Color TFT

    Innolux NJ080IA-10D Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    Innolux NJ080IA-10D 8-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux NJ080IA-10D?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux NJ080IA-10D?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux NJ080IA-10D?

    Use 1024 × 600 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux NJ080IA-10D still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    J080IA-10D

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
