The UT - MD043050V.2 TFT Driver Board RGB VGA AV (CVBS) features multiple interfaces for versatile signal input and output, enabling easy connection to various devices, and offers advantages like high - quality image display, low power consumption, and stable performance.

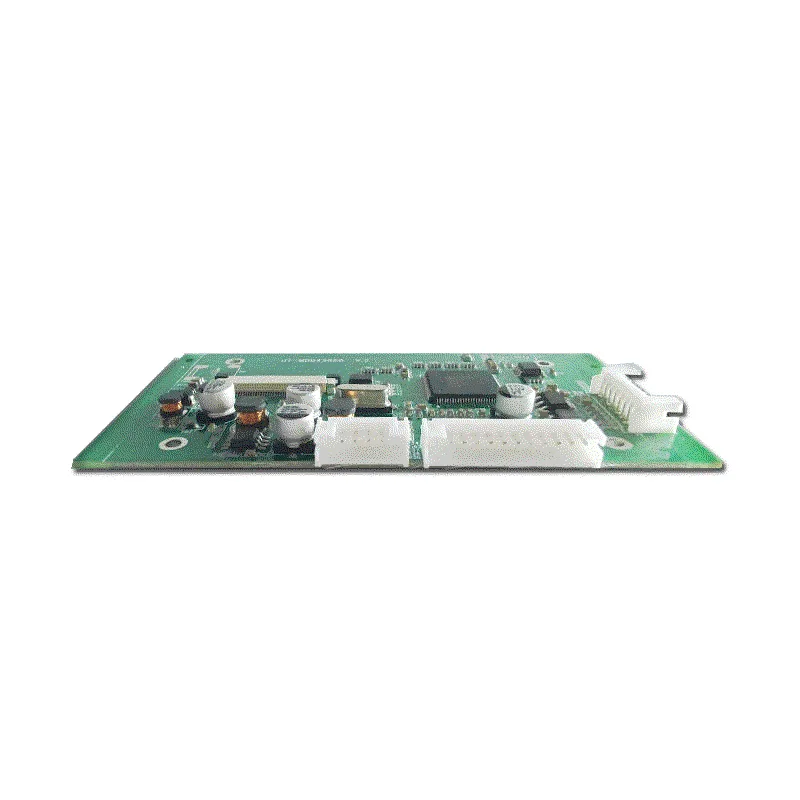

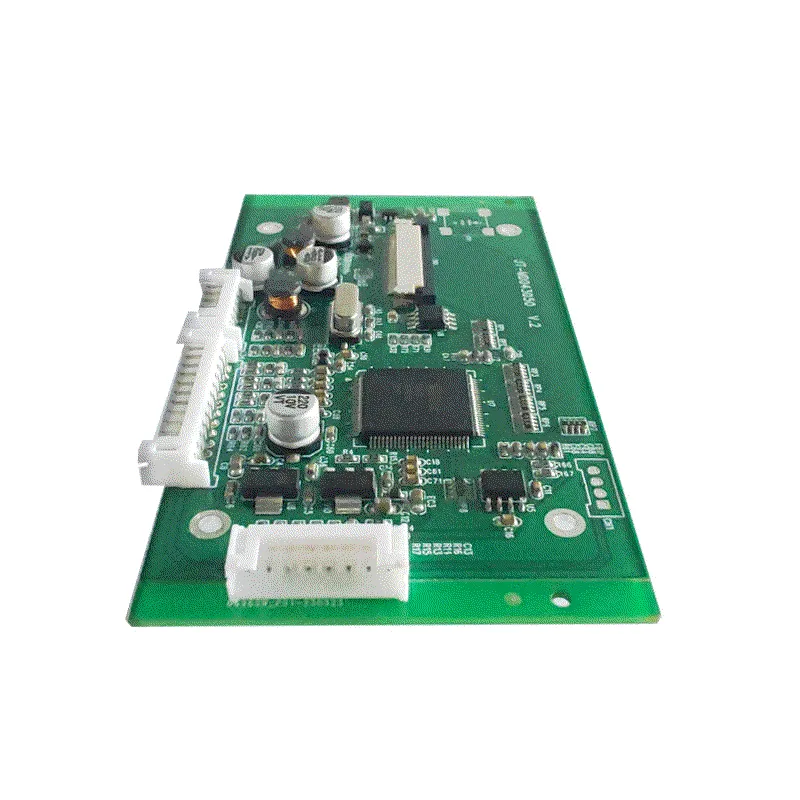

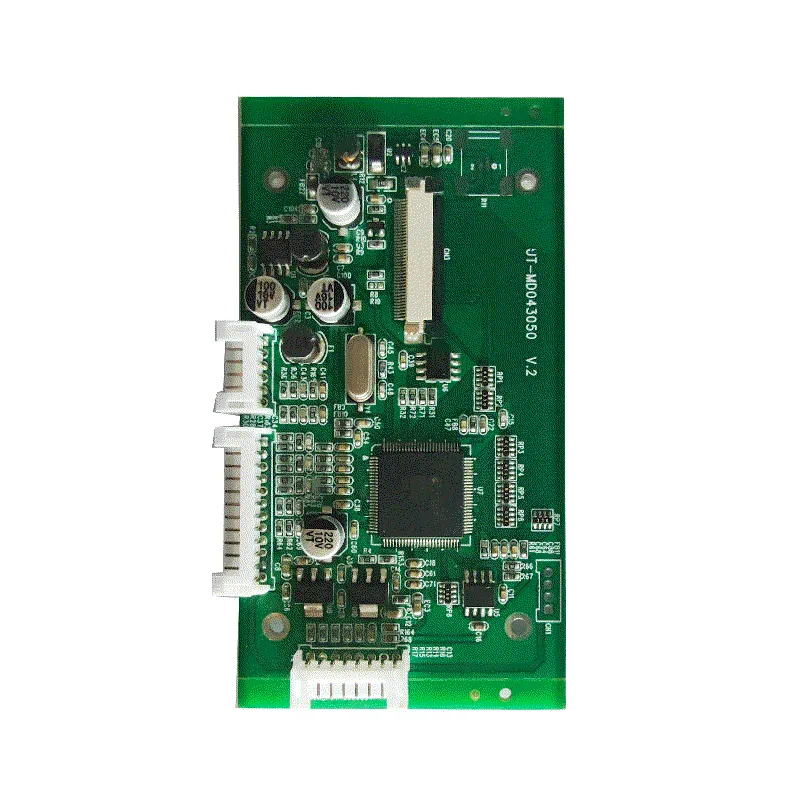

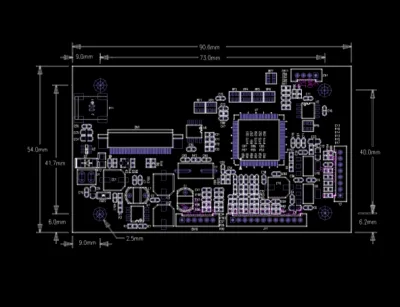

UT - MD043050V.2 TFT Driver Board RGB VGA AV (CVBS)
The UT - MD043050V.2 TFT Driver Board RGB VGA AV (CVBS) features multiple interfaces for versatile signal input and output, enabling easy connection to various devices, and offers advantages like high - quality image display, low power consumption, and stable performance, which is suitable for applications in consumer electronics, industrial control, and medical equipment that require different video interface connections and high - quality visual displays.
✅Scope of Application
Assembly of AT043TN24 V.1, AT043TN25 V.2, and AT050TN43 V.1 for 4.3 - inch and 5 - inch LCD displays with resolutions of 480*272 and 800*480, and their display drivers
✅Product Function Description
1 Supports HDMI, VGA, and CVBS video signal input.
2 The power input is DC +12V.
3 Features multi - function OSD operation.
4 Optional remote control function is available.
5 Auto - power - off when no signal is detected.
✅ Signal Input Standards
1 HDMI: (Universal version 1.2).
2 VGA: Supports resolutions of 800×480, 800×600, 1024×600, 1024×768, 1280×800 (refresh rate 60 - 75Hz).
3 CVBS: 1.0Vp - p 75Ω.
Interface Definition
CN3 (FPC Socket Definition) 40PIN/ 0.5mm
Pin No.
Function
Pin No.
Function
Pin No.
Function
Pin No.
Function
1
VLED-
11
R6
21
B0
31
DISP
2
VLED+
12
R7
22
B1
32
NC
3
GND
13
G0
23
B2
33
NC
4
VDD
14
G1
24
B3
34
DE
5
R0
15
G2
25
B4
35
NC
6
R1
16
G3
26
B5
36
GND
7
R2
17
G4
27
B6
37
NC
8
R3
18
G5
28
B7
38
NC
9
R4
19
G6
29
GND
39
NC
10
R5
20
G7
30
CLK
40
NC
Operating Power Supply Requirements (AT043TN24 V.1)
Can this controller board drive my existing LCD panel?
Listed source inputs include VGA. Listed panel outputs include RGB. Check both ends independently against the source and LCD documentation. Send the complete LCD part number and connector photos. Check the panel supply and pinout, backlight power and enable or dimming signals before applying power.
Will this board support the resolution and refresh rate my source needs?
Treat 800 × 480 as the listed maximum supported resolution. Check that the board firmware actually offers your panel’s exact timing and refresh. Check whether the source mode is accepted and whether the LCD will be driven at its native mode. Include the exact source and target mode in your request.
Should I use this board or order a controller already configured for my LCD?
Use the full controller part number and revision from the unit label and the corresponding drawing. Compare firmware availability, cable and backlight changes, mounting space and time to validate your panel. A matched board and cable can be easier to reproduce when the same LCD revision will be used in production.

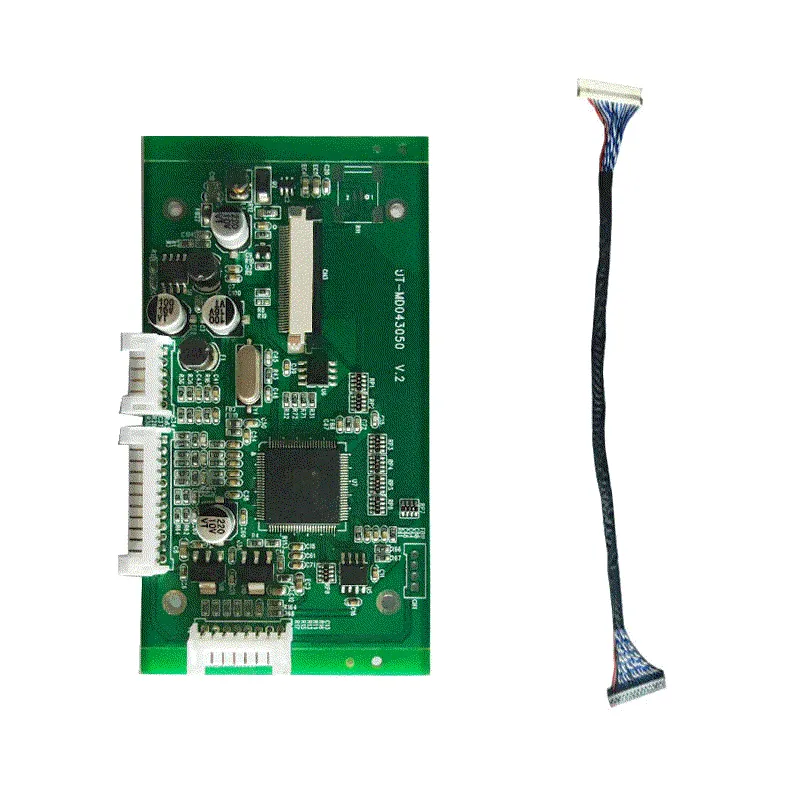

Can the board be configured with a matched cable or panel firmware?
Send the complete panel label and datasheet, source input, panel connector and backlight details. We can review an available board and cable combination and confirm what firmware configuration is required.
What determines pricing and lead time for an LCD controller and cable set?
Include the full LCD model, input/output timing, cable requirement, sample quantity and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
Informazioni aggiuntive
Maximum supported resolution
800*480
Model Source
VGA AV(cvbs)
Output Interface
RGB
