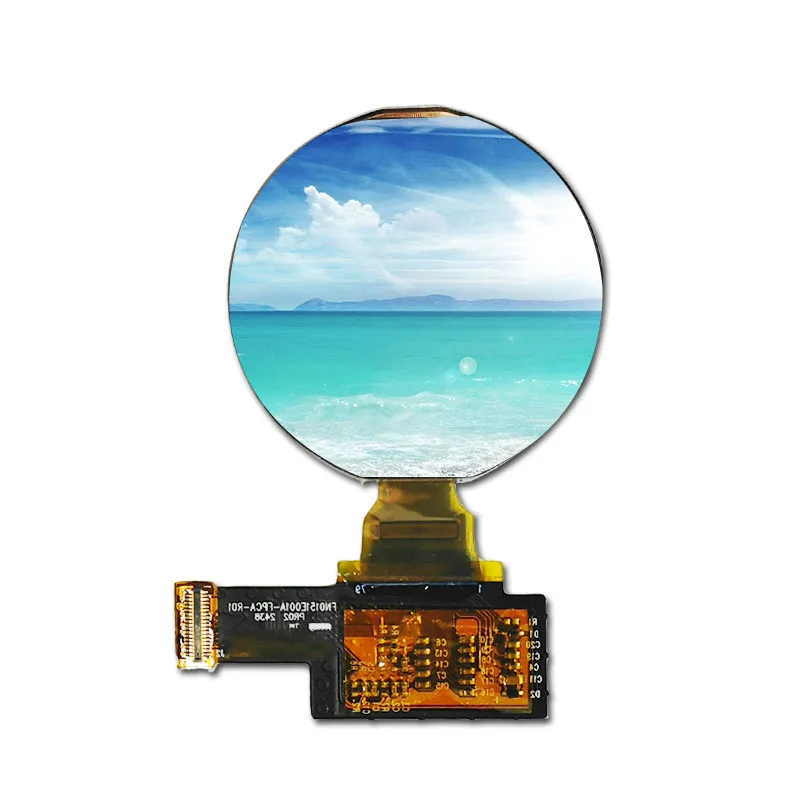

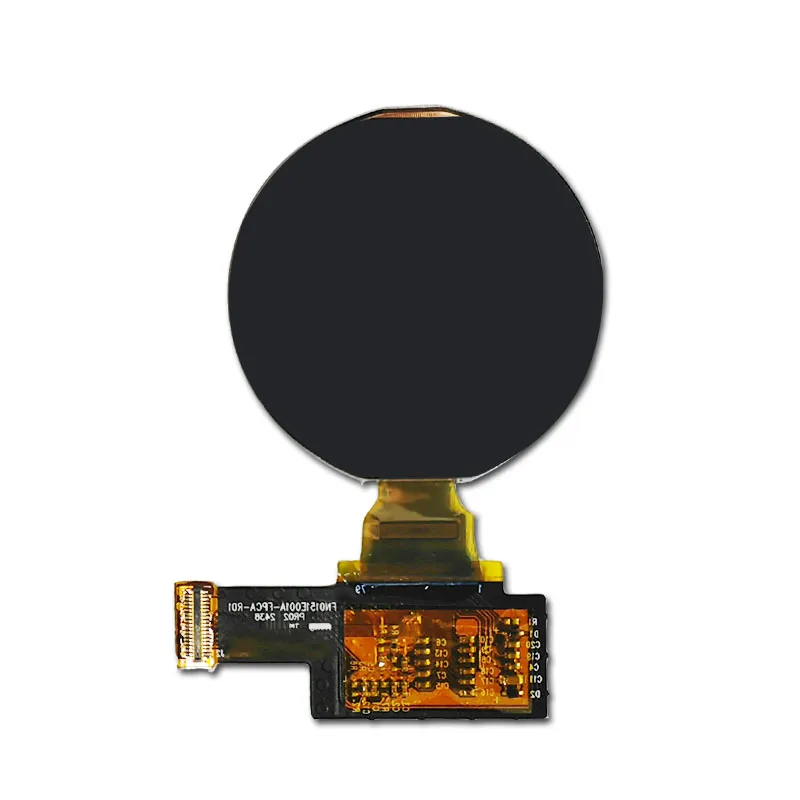

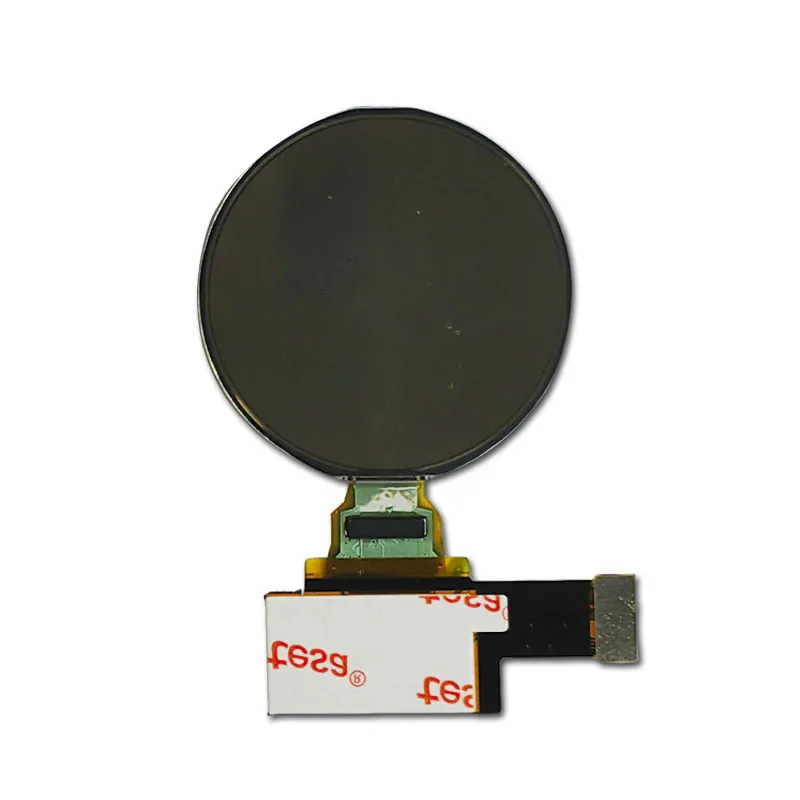

1.504 inch Color OLED display 466x466 Round Oled

Artikelnummer: DS10010
Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

600

Touchscreen-Unterstützung:

Anzeige Typ:

Größe:

Auflösung:

Schnittstelle:

, ,

Resources:

1.504 inch Color OLED display  Offering Resolution 466*466 with Round Shape Optional MIPI&SPI  Interface 600 nits High Brightness LCD  Industrial Application

Preisanfrage für Volumen







    Beschreibung

    1.504" Amoled Displays Features

    The Color OLED display utilizes AMOLED technology, delivering superior color reproduction and contrast to enhance the visual experience. With a typical luminance of 600 cd/m², it remains visible under various lighting conditions. The display supports both MIPI and SPI interfaces, providing flexibility for different system configurations. Its wide viewing angles allow for all-direction visibility, making it ideal for applications where multiple users need to see the screen simultaneously. Additionally, its compact dimensions, measuring only 0.82 mm thick, facilitate integration into sleek and lightweight designs. Operating at a standard voltage of 3.3V, it ensures compatibility with a wide range of electronic devices.



    1.504" Amoled Display Application

    This AMOLED display module is perfect for a variety of applications, including wearable devices like smartwatches, fitness trackers, and health monitoring devices that demand high-quality displays in a compact form factor. It is also well-suited for portable electronics such as smartphones, handheld gaming devices, and portable media players, where space and power efficiency are critical. Additionally, the module can be utilized in IoT devices, providing a compact display for user interaction in various Internet of Things applications. Furthermore, it integrates seamlessly into consumer electronics, including digital cameras, remote controls, and other gadgets, enhancing the user experience with its high-resolution capabilities.

    1.504" Amoled Display Product Specifications

    LCD Size(inch) 1.504(Diagonal)
    Number of Pixels 466*466
    Pixel Pitch(um) 81.99*81.99
    Outline Dimension(mm) 40.71 ×40.81 ×0.82
    Active Area(mm) 38.207 ×38.207
    Display type AMOLED
    Schnittstelle SPI/MI PI
    Ansicht Richtung ALLE
    Power Supply(v) 3.3
    Luminance(cd/m²) 600
    Drive IC CH13613-SSS32
    - -
    - -
    - -
    - -

    1.504" Amoled Custom Solutions

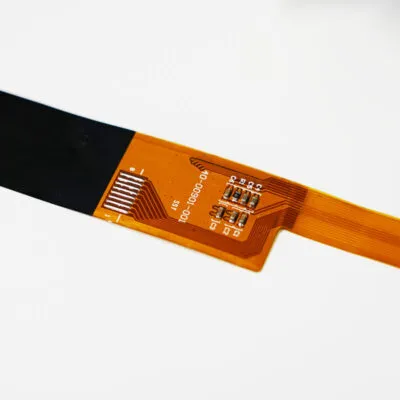

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

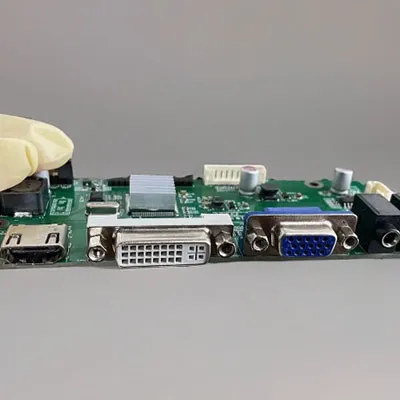

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

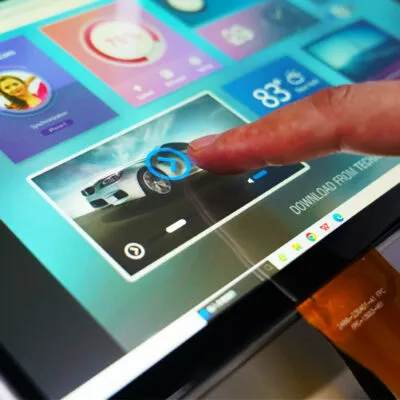

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

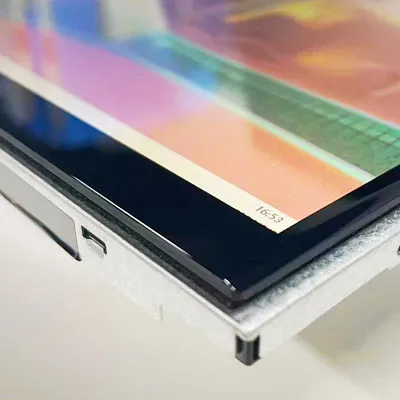

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    1.504-Inch 466 × 466 Round AMOLED Display FAQ

    Can I drive this 466 × 466 round AMOLED with an ESP32-S3 or STM32?

    Send us the exact board and its available display bus. The linked Rev. A specification documents SPI and MIPI for the CH13613-SSS32 driver. Confirm the pinout, logic levels, power rails and initialization before laying out your PCB. If your board requires QSPI, ask us to confirm support for the revision being quoted.

    Round AMOLED module specification, Rev. A

    Will the round AMOLED fit behind my bezel without clipping the dial labels?

    The drawing lists a 40.71 × 40.81 × 0.82 mm module outline without cover glass. Compare the visible circle, rear clearance and flex exit with your enclosure. Check the dial labels and edge icons on a sample fitted with the intended bezel and cover.

    Can I add touch or customize the cover glass and flex cable?

    The catalog configuration comes without touch. Send us the cover profile, thickness, print or finish, flex length and exit direction, and the host touch interface if needed. We can review a cover-only configuration and a separate touch assembly for your design.

    How much does a custom round AMOLED sample cost, and how long does it take?

    Share your drawing, sample quantity, expected production volume and target date. We can review the cover-only option and any touch or flex changes separately. The quote can show one-time engineering or tooling charges, sample cost, production MOQ, and separate lead times for samples and production.

    Custom cover and touch sampling process

    Will the round AMOLED stay readable behind my cover in bright light?

    The module is rated at 600 cd/m² typical. Check small text and icons on a finished sample under your expected lighting and viewing angles. For battery-powered products, measure current with your actual bright and dark layouts, including icons that stay on for long periods.

    Zusätzliche Informationen

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    600

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Größe:

    Auflösung:

    Schnittstelle:

    , ,

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
