10.1 inch LVDS 1280*800 LCD TFT Displays

Artikelnummer: DS20077
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

350

Touchscreen-Unterstützung:

Anzeige Typ:

10.1 inch tft lcd display panel  1280*800 Pixels  Serial LVDS Interface  Customized touch screen Provide total tft solutions

Preisanfrage für Volumen







    Beschreibung

    10.1" TFT Display Panel Features

    This 10.1 inch LCD TFT Displays, model 90-10116-IH1, offers a high resolution of 1280x800 pixels, delivering clear and sharp visuals. The active area of 216.96 mm x 135.6 mm provides ample screen space, while the slim outline dimensions of 229.46 mm x 149.1 mm x 2.5 mm make it suitable for compact designs. With wide viewing angles of 85° from all directions (RLUD), it ensures excellent visibility without color distortion, making it ideal for various professional and industrial applications.



    10.1" LCD Panel with High Resolution

    The 10.10 inch TFT display panel incorporates IPS (In-Plane Switching) technology, which is known for its superior visual performance. IPS technology offers wide viewing angles of 85° from all directions (RLUD) without compromising color accuracy or image clarity. This makes the display ideal for applications where the screen may be viewed from various angles, such as in medical devices, automotive dashboards, industrial control panels, and consumer electronics.

    10.1" TFT-LCD Product Specifications

    Modellnummer  90-10116-IH1
    Größe 10.1
    Auflösung 1280*800

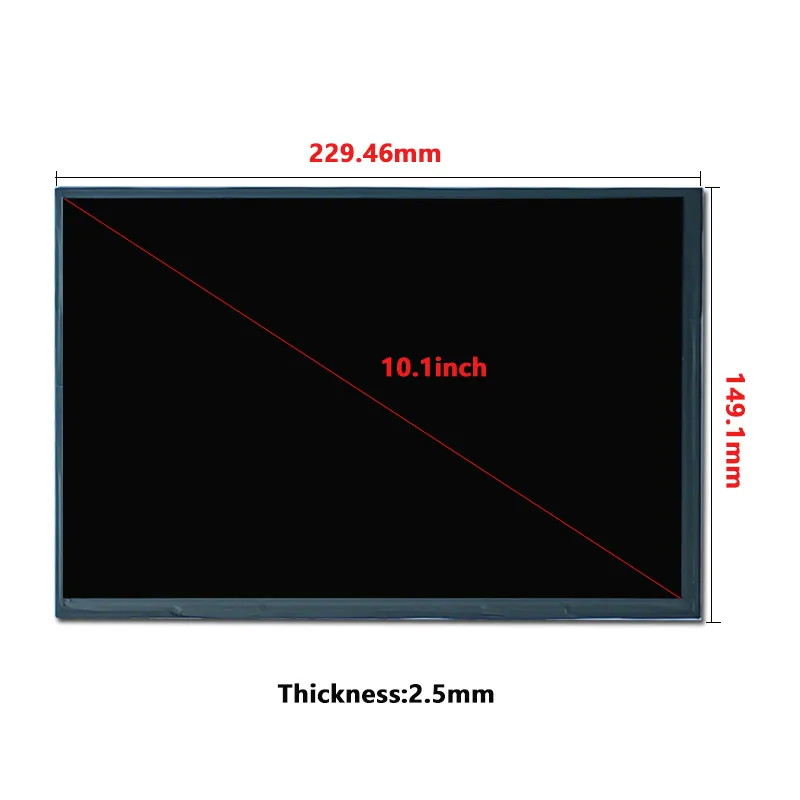

    Umriss Dimension 229.46*149.1*2.5
    Aktiver Bereich 216.96*135.6
    Helligkeit(cd/m²) 350
    Schnittstelle LVDS
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 800:1
    Stromversorgung 3.3V
    Anzeige Typ Character LCD

    10.1" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    10.1-Inch 1280 × 800 LVDS TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 10.1-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1280 × 800 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    350

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
