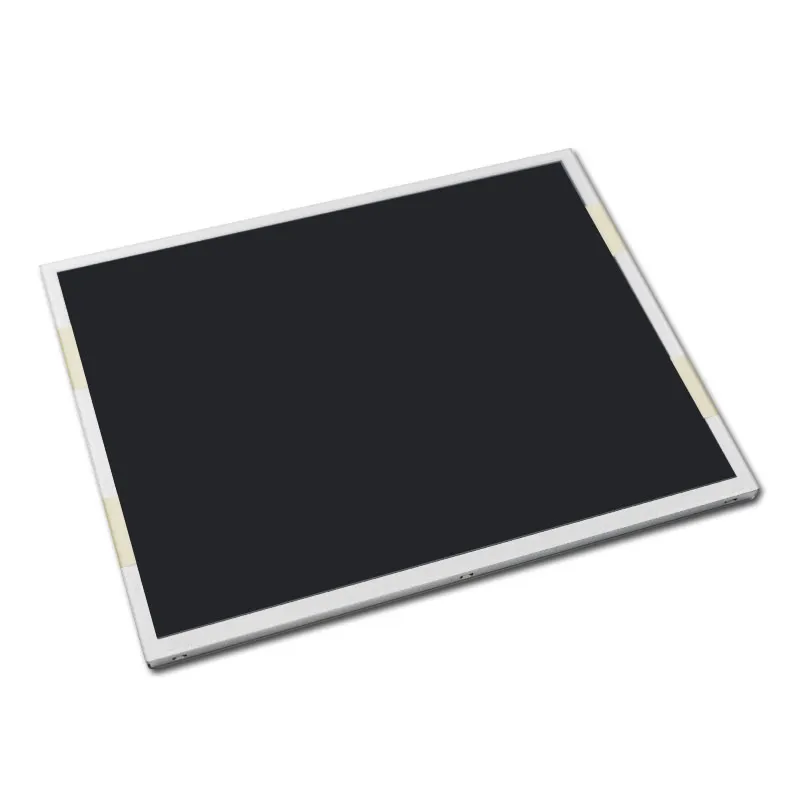

15.6 inch G156HAN02.1 AUO IPS LCD Display 1920*1080 Luminance 500cd/m²

Artikelnummer: DS50034
Größe:

Modellnummer

G156HAN02.1

Auflösung:

Schnittstelle:

Helligkeit (cd/m²):

500

Betriebstemperatur:

-20℃~70℃

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

G156HAN02.1 AUO IPS LCD Display  offering Resolution 1920*1080  Brightness 500cd/m²  Operating Temperature from -20~70℃ Interface LVDS 30 pin  Stable supply  Original A grade quality

Preisanfrage für Volumen







    Beschreibung

    AUO G156HAN02.1 Key Features

    The AUO G156HAN02.1 IPS LCD Display is a high-quality visual solution designed for a variety of applications, featuring a resolution of 1920 x 1080 pixels that delivers exceptional Full HD clarity and vibrant colors. With a brightness level of 500 cd/m², this display ensures excellent visibility in diverse lighting conditions, making it ideal for both indoor and outdoor environments. It operates efficiently within a wide temperature range of -20 to 70°C, ensuring reliable performance in challenging settings. The display utilizes a 30-pin LVDS interface, facilitating seamless integration into various systems and enhancing its versatility across multiple applications. As an original A-grade quality product with a stable supply, the G156HAN02.1 is perfect for industrial automation, medical devices, and digital signage, providing durability and long-lasting performance.



    G156HAN02.1 Application

    The AUO G156HAN02.1 IPS LCD Display is versatile and well-suited for various applications across multiple industries. Its high resolution of 1920 x 1080 pixels and brightness of 500 cd/m² make it ideal for digital signage, where clear and vibrant visuals are essential for engaging audiences in retail environments and public displays. In industrial settings, it can be integrated into control systems and human-machine interfaces (HMIs), providing operators with reliable and accurate visual feedback. The display's wide operating temperature range of -20 to 70°C ensures dependable performance in harsh environments, making it suitable for outdoor applications and transportation displays. Additionally, its 30-pin LVDS interface allows for easy integration into consumer electronics, medical devices, and other electronic systems, ensuring durability and consistent performance in applications that require high-quality display solutions.

    15.6" TFT-LCD Product Specifications

    Modellnummer G156HAN02.1
    Größe 15.6
    Auflösung 1920*1080
    Umriss Dimension 363.8*215.9*9.3
    Aktiver Bereich 344.16*193.59
    Helligkeit(cd/m²) 500
    Schnittstelle LVDS
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -20~70
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    15.6" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G156HAN02.1 15.6-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G156HAN02.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G156HAN02.1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G156HAN02.1 compare with the Innolux G156HCE-L01?

    Both catalog listings show 15.6 inches, 1920 × 1080 and LVDS. The catalog lists −20 °C to +70 °C for the AUO panel and −30 °C to +85 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G156HCE-L01

    Is the AUO G156HAN02.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
