Description

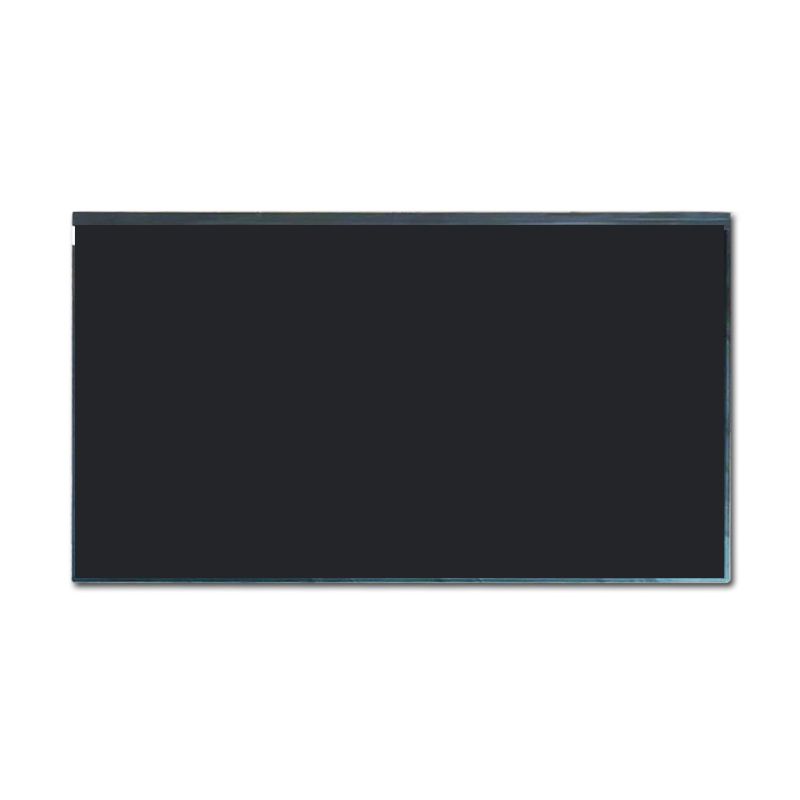

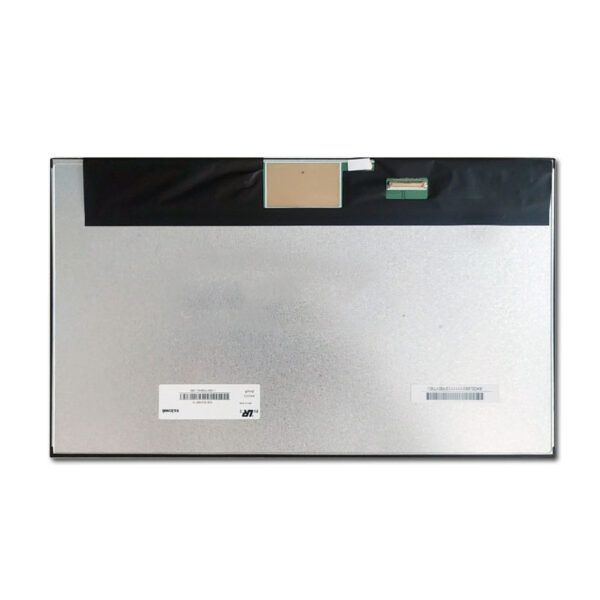

Innolux G156HCE-L01 General Description
The Innolux G156HCE-L01 is a 15.6-inch FHD IPS industrial display engineered for high-performance applications requiring crystal-clear visuals and extreme reliability. Featuring 1920×1080 resolution and 450nits brightness, this panel delivers stunning detail and 178° wide viewing angles, perfect for critical tasks in harsh environments.
Built to excel in the most challenging conditions, it operates seamlessly across an expanded temperature range of -30°C to 85°C and offers a robust 50,000-hour lifespan – ideal for 24/7 industrial and outdoor use. The LVDS interface ensures stable, low-noise signal transmission for seamless integration with industrial PCs, embedded systems, and legacy equipment.
Key Features:
✅ High-Definition Clarity: Full HD resolution for precision monitoring in medical imaging or control rooms.
✅ Sunlight Readiness: 450nits brightness with optional anti-reflective coating for outdoor/kiosk use.
✅ Thermal Resilience: Withstands extreme cold/heat for oil/gas, military, or desert deployments.
✅ IPS Consistency: True color accuracy across wide angles, even in fluctuating temperatures.
G156HCE-L01 FHD IPS Panel Application
Factory automation HMIs & robotic control panels
Aviation/railway onboard diagnostic systems
Solar farm monitoring or smart grid terminals
High-brightness digital signage & outdoor kiosks
Customize with capacitive touch, IP65 sealing, or EMI shielding to meet stringent industry standards.
15.6″ TFT-LCD Product Specifications
| Model Number | G156HCE-L01 |
|---|---|
| Size | 15.6 |
| Resolution | 1920(RGB)×1080 |
| Outline Dimension | 363.8×215.98×9.6 |
| Active Area | 344.16×193.59 |
| Brightness(cd/m²) | 450 |
| Interface | LVDS |
| View Direction | IPS |
| Operating Temperature | -30~85 |
| Storage Temperature | -40~90 |
| LED Lifetime | 50000 |
| Touchscreen Support | Without |
| Contrast Ratio | 800:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
15.6″ TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
