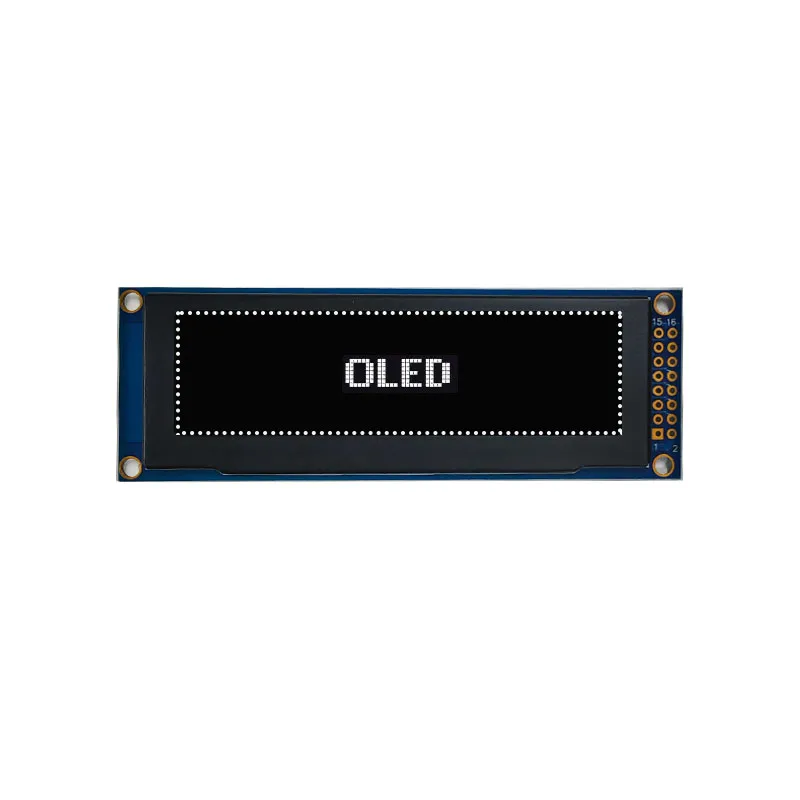

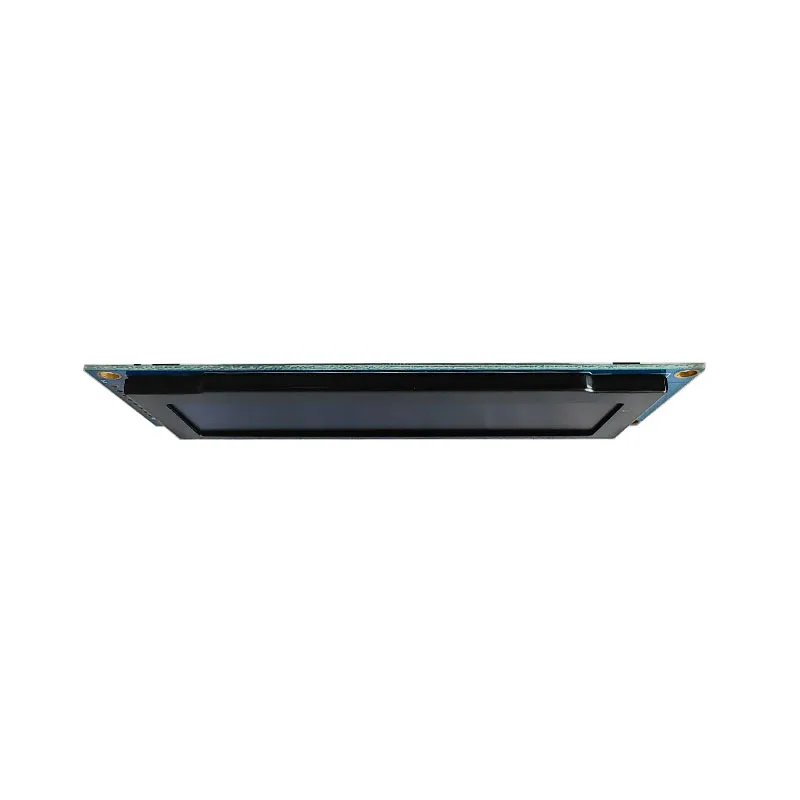

3.2 inch 256*64 Pmoled Display Module with PCB Board SSD1322

Artikelnummer: DS10048
Größe:

Auflösung:

Schnittstelle:

,

Betriebstemperatur:

-0℃~40℃

Helligkeit (cd/m²):

200

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

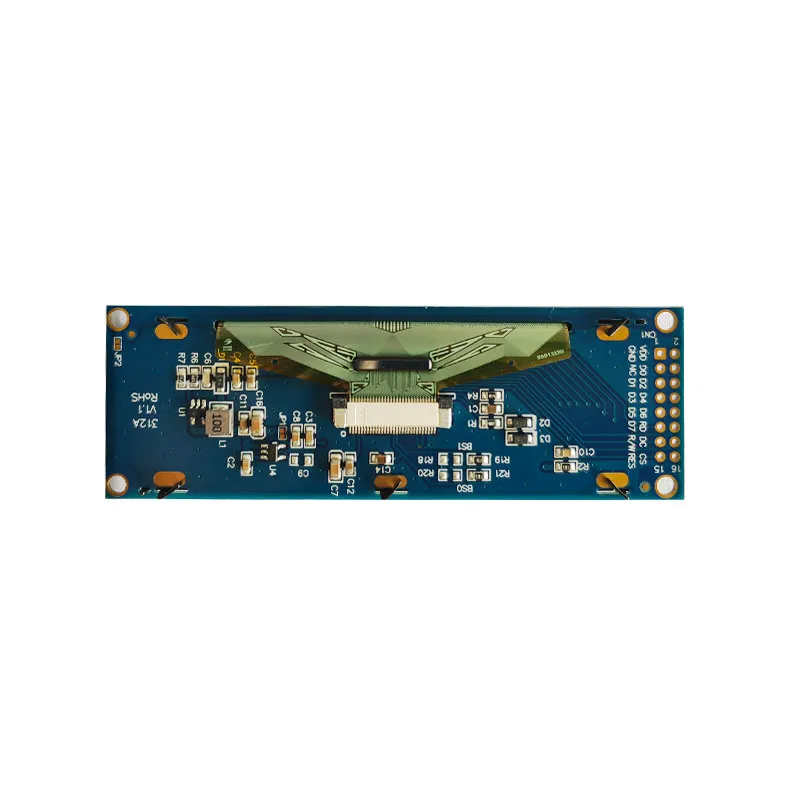

Pmoled Display Module Passive Matrix Oled with light color Yellow&Blue 3.2 inch monochrome 256x64 oled display module with a PCB board SSD1322 Controller IC 8-Bit 68XX/80XX Parallel 、SPI interface Four screw holes are designed on the PCB

Preisanfrage für Volumen







    Beschreibung

    3.2" Arduino Pmoled Display Module Features

    The 3.2 inch Pmoled Display Module is a high-quality display solution designed for a variety of applications requiring vibrant visuals and reliable performance. Featuring a resolution of 256 x 64 pixels, this passive matrix OLED display showcases graphics in striking yellow and blue, making it an excellent choice for projects that demand clear and engaging outputs.



    3.2" Arduino Pmoled Display Module Application

    The 3.2 inch Pmoled Display Module is ideal for a variety of applications, including consumer electronics such as remote controls and smart home systems that require visually engaging interfaces. It is also suitable for embedded systems, particularly IoT devices that demand reliable and clear visual outputs. Additionally, we can utilize this display in industrial controls to provide critical information in control panels and monitoring systems. Furthermore, it serves as an excellent choice for DIY projects, allowing hobbyists and makers to enhance their creations with a high-quality display.

    3.2" Arduino Oled Display Product Specifications

    Panel Size(inch) 3.2(Diagonal)
    Display Mode Passive Matrix—OLED&Yellow/Blue
    Schnittstelle 8-Bit 68XX/80XX Parallel ,SPI
    Drive Duty 1/64
    Driver IC SSD1322
    Shell 0.5T
    Outline Drawing 100.5(W)x33.5(H)x6.3Max(T)
    View Area 78.78(W)x21.18(H)
    Aktiver Bereich 76.78(W)x19.18(H)
    Lattice 256dots x 64dots
    Pixel Pitch 0.30(W)x0.30(H)
    Pixel Size 0.28(W)x0.28(H)
    - -
    - -
    - -

    2.23" Arduino Oled Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    3.2-Inch 256 × 64 SPI PMOLED Display Module FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 256 × 64 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. For the listed PMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    ,

    Betriebstemperatur:

    -0℃~40℃

    Helligkeit (cd/m²):

    200

    Touchscreen-Unterstützung:

    Anzeige Typ:
