3.95 inch Square High Resolution LCD Display 720*720 MIPI

Artikelnummer: DS20050
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

300

Touchscreen-Unterstützung:

Anzeige Typ:

3.95 inch Square LCD Panel  320*320 Pixels  Serial MCU Interface  40 pin FFC connection  Customized touch screen

Preisanfrage für Volumen







    Beschreibung

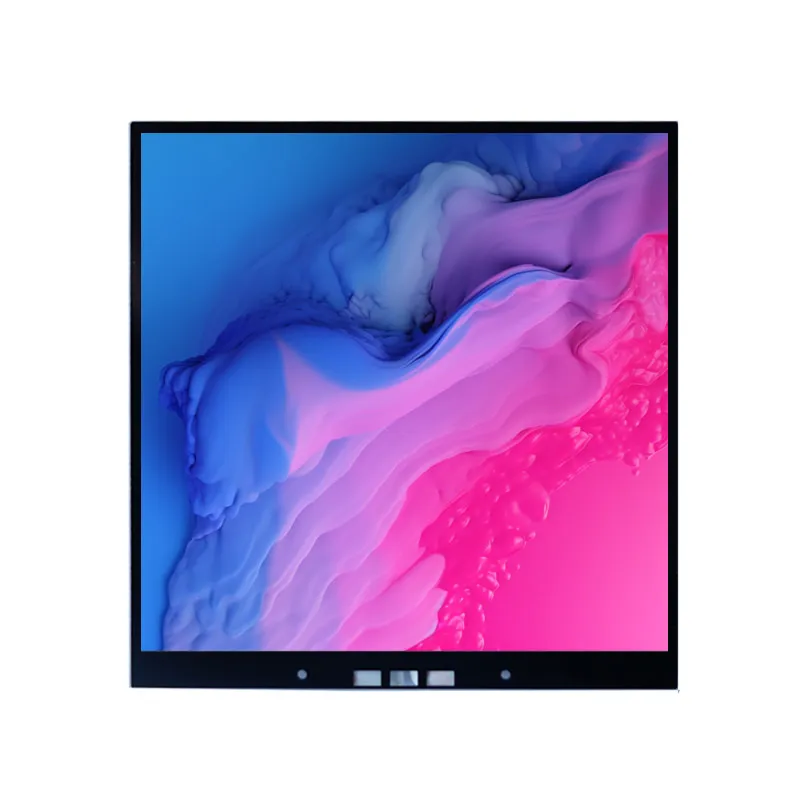

    3.95" Square LCD Panel Features

    The 3.95 inch High Resolution LCD Display features a resolution of 720x720 pixels, making it ideal for applications that require high-quality and detailed imagery, backlight rated for 30,000 hours, enhancing longevity, while a contrast ratio of 1200 improves clarity and vibrancy. Operating efficiently within a temperature range of -30°C to 80°C and utilizing a 40-pin MIPI interface, this display module is versatile and suitable for a wide range of applications.



    3.95" Square LCD Panel with Wide Temperature

    The 3.95-inch TFT display module is designed to withstand harsh environmental conditions, ensuring it remains operational and visually clear in extreme temperatures, from freezing outdoor settings to high heat in industrial applications. Its ability to operate within a wide temperature range helps maintain consistent brightness, contrast, and color accuracy, which is crucial for applications like navigation systems and public transport display panels. Additionally, the use of high-quality materials that can endure thermal stress contributes to an extended lifespan for the display, reducing maintenance and replacement costs over time.

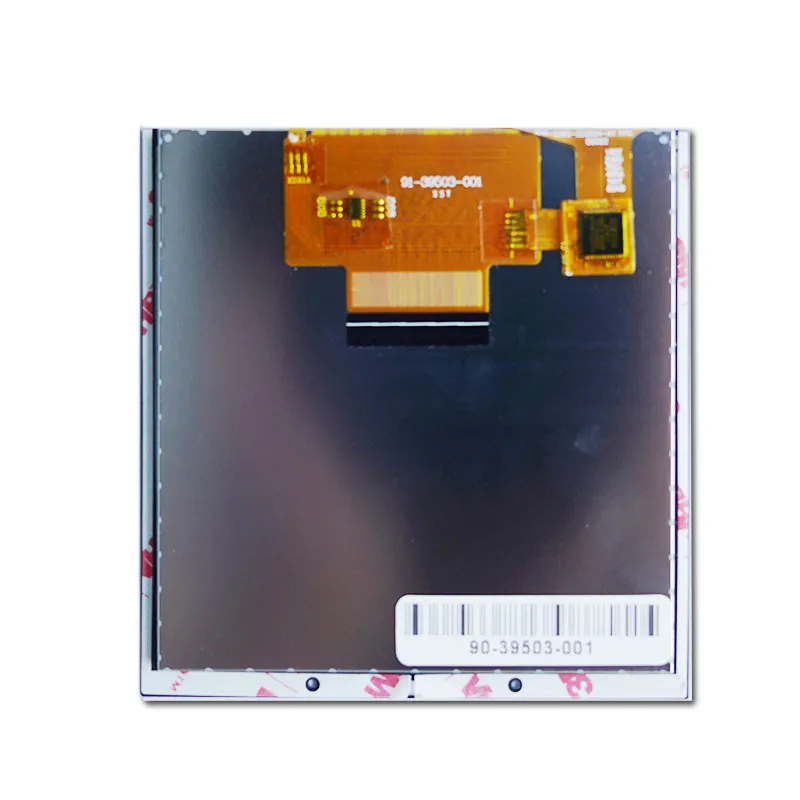

    3.95" TFT-LCD Product Specifications

    Modellnummer  90-39503-001
    Größe 3.95
    Auflösung 720*720
    Umriss Dimension 74.83*78.89*1.95
    Aktiver Bereich 71.93*71.93
    Helligkeit(cd/m²) 300
    Schnittstelle MIPI
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 30000
    Touchscreen-Unterstützung Witout
    Kontrastverhältnis 1200:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    3.95" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    3.95-Inch MIPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.95-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    300

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
