37,6-Zoll-Stretch-Monitor Bildschirmauflösung 1920*540 DC/HDMI /Audio/RJ45/USB*2

Artikelnummer: DS30015
Größe:

Auflösung:

Schnittstelle:

, , , ,

Helligkeit (cd/m²):

400

Betriebstemperatur:

-0℃~50℃

37.6 inch Stretched Monitor Display, offering resolution 1920*540, Aspect Ratio 32:9,Brightness 400cd/m2, Interface with DC/HDMI /Audio/RJ45/USB*2, Optional Android motherboard

Preisanfrage für Volumen







    Beschreibung

    37.6 inch Stretched monitor display main features:

    • 178° ultra-wide viewing angle, 1000:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 400cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

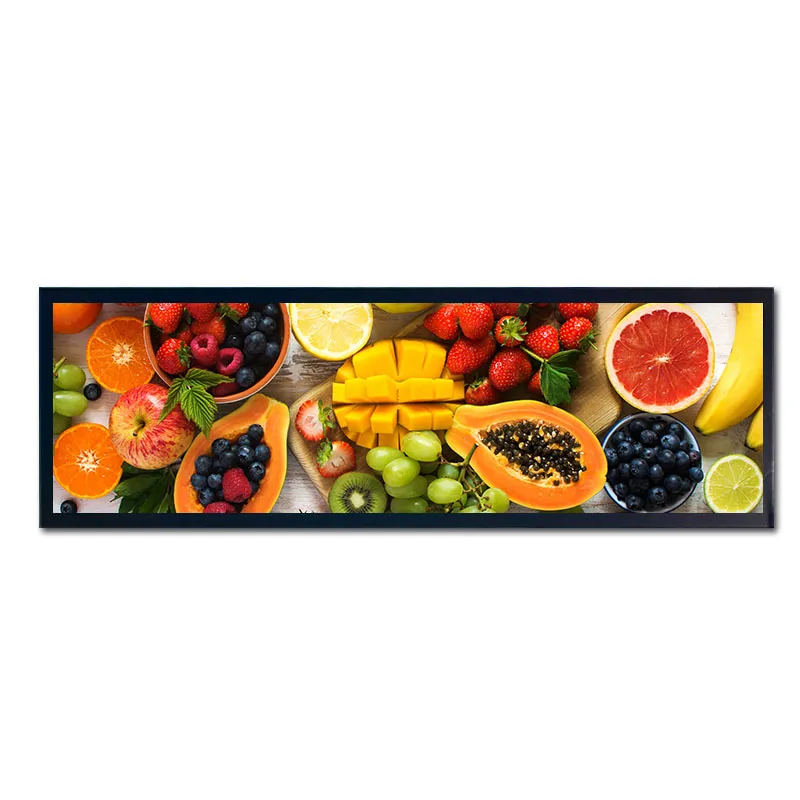

    37.6 inch Stretched Monitor Display



    37.6 inch Stretched monitor display Specification

    LCD Display Screen Size 37.6 inch
    Aktiver Bereich 919.3**258.5(mm)
    Outline 950*289.5*56(mm)
    Screen Type a-Si TFT-LCD
    Pixel Zahl 1920*540
    Aspect Ratio 32:9
    Luminance 400 cd/m2
    Kontrastverhältnis 1000:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Color Depth 16.7M   68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.4788*0.4788(mm)
    Mainboard CPU A40
    Ram 1GB DDR4
    Flash 8GB
    O/S Andriod7.1
    Schnittstelle DC/HDMI /Audio/RJ45/USB*2/
    Machine Appearance and Structure Sheet metal
    Color Black (customizable)
    Peripheral WIFI/Speaker*2
    Power supply AC100~230V
    Power consumption ≦40W
    Betriebstemperatur 0℃~50℃
    Lagertemperatur -20℃~60℃
    Installation method Wall hanging

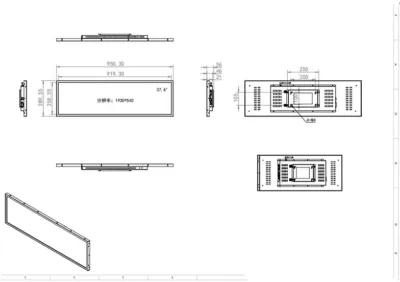

    Drawing and photo 37.6 inch bar lcd monitors

    37.6-Inch 1920 × 540 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 37.6-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 540 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
