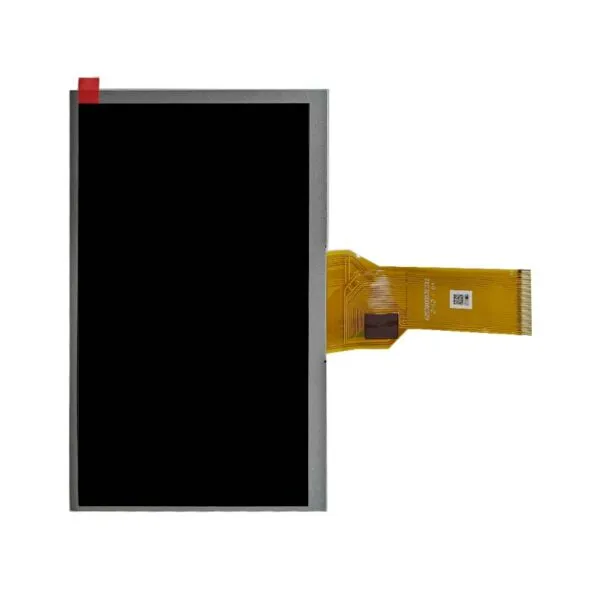

AT070TN94 7 inch LCD Display – 400cd/m² Brightness, Wide-Temp Operation (-30°C~85°C)

Artikelnummer: DS50213
Größe:

Modellnummer

T070TN94

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~ 85℃

Helligkeit (cd/m²):

400

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

Innolux AT070TN94 7" Sunlight-Readable LCD: 400cd/m² Brightness, -30°C~85°C Endurance for Industrial Automation & Outdoor Tech.

Preisanfrage für Volumen







    Beschreibung

    AT070TN94 General Desription

    The Innolux AT070TN94 is a 7-inch TFT LCD designed for demanding applications, featuring 800×480 resolution and 400cd/m² high brightness for clear visibility under direct sunlight. With a TN panel offering 500:1 contrast ratio and a compact outline (164.9×100×6mm), it integrates seamlessly into space-constrained systems. Its industrial-grade design supports operation from -30°C to 85°C, ensuring reliability in extreme conditions. The RGB interface delivers stable signal transmission, while a low-power design (3.3V~16V) reduces energy consumption. Backed by 20,000-hour LED lifespan, this display is built for long-term deployment in automation, transportation, or outdoor digital signage without touchscreen distractions.



    Application & Performanc

    Engineered for rugged environments, the AT070TN94 excels in industrial control panels, heavy machinery HMI, and outdoor kiosks where temperature fluctuations and dust exposure are common. Its 70/70/50/70 viewing angles ensure readability from multiple positions in vehicle dashboards or medical monitoring devices. The anti-glare surface and 400cd/m² brightness combat sunlight interference in agricultural equipment or construction-site displays. With vibration resistance and wide voltage compatibility (3.3~16V), it reliably powers logistics tracking systems, factory automation, and HVAC controllers. The 6mm slim profile allows integration into portable field instruments or compact IoT terminals requiring durable visual feedback.

    7.0" Product Specifications

    Diagonale Größe 7.0"
    Pixel Zahl 800×480
    Luminance 400
    Module Size 164.9×100×6
    Aktiver Bereich 154.08×85.92
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/50/70
    Schnittstelle RGB
    Kontrastverhältnis 500:1
    Betriebstemperatur -30~85℃
    Lagertemperatur -30~85℃
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3/10.4/16.0/-7.0V
    Anzeige Typ Color TFT

    Innolux LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux AT070TN94 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux AT070TN94?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux AT070TN94?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux AT070TN94?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux AT070TN94 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    T070TN94

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~ 85℃

    Helligkeit (cd/m²):

    400

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
