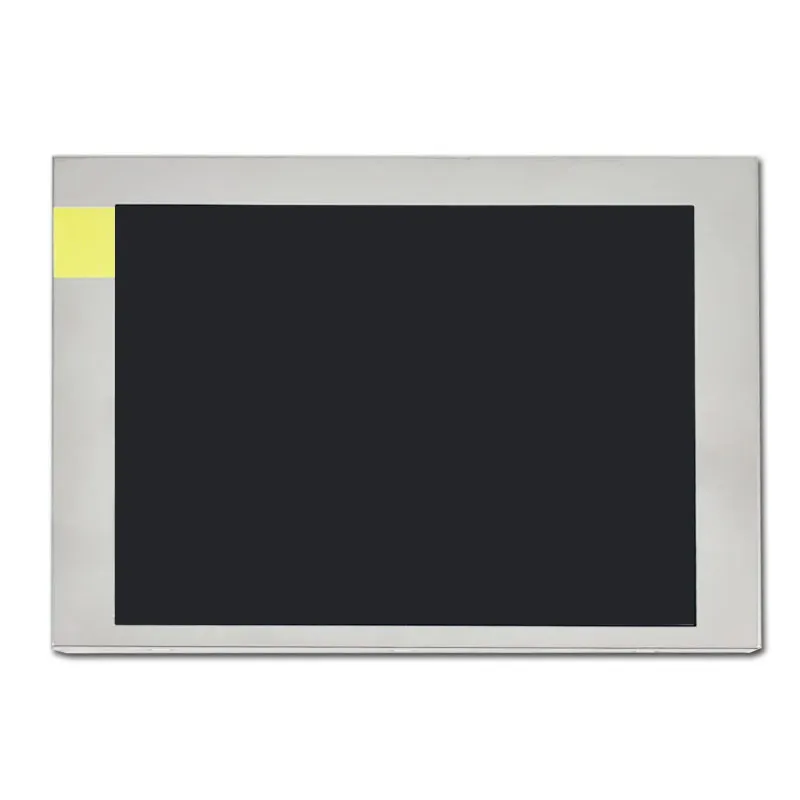

AUO G057VN01 V220 5.7" IPS Panel 700nits -30~85℃ 70K Hrs CMOS Interface

Artikelnummer: DS50109
Größe:

Modellnummer

G057VN01 V220

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~ 85℃

Helligkeit (cd/m²):

700

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

AUO G057VN01 V220: Military-grade 5.7" IPS display with 700nits brightness, 640×480 resolution. 70,000hrs lifespan, CMOS interface for extreme environments (-30~85℃).

Preisanfrage für Volumen







    Beschreibung

    G057VN01 V220 Key Features:

    The AUO G057VN01 V220 IPS panel redefines industrial display endurance with revolutionary 70,000-hour lifespan - 3.5× longer than standard IPS panels. Engineered for mission-critical visibility:
    ◆ 700nits High-Luminance with optical bonding option
    ◆ Full Quad-89° Viewing Angles (U/D/L/R)
    ◆ CMOS digital interface with EMI/RFI immunity
    ◆ -30°C~85°C Operational Range (MIL-STD-202H certified)



    Advanced Performance:

    • 640×480 resolution @ 500:1 contrast ratio
    • 16.7M color depth with 10-bit gamma correction
    • 15ms response time for dynamic imaging
    • Anti-glare+Anti-Reflection composite treatment
    Certified Solutions for:
    ✓ Armored vehicle dashboards ✓ Arctic oilfield monitoring
    ✓ Satellite ground stations ✓ Nuclear power HMI systems
    Compliance: IP69K pressure wash-proof (optional), EN 45545-2 fire safety, REACH/ROHS compliant. Supports custom PWM dimming (0-100%) and touch integration.

    G057VN01 V220 Product Specifications

    Modellnummer G057VN01 V220
    Größe 5.7
    Auflösung 640*480
    Umriss Dimension 144×104.6×12.8
    Aktiver Bereich 115.2×86.4
    Helligkeit(cd/m²) 700
    Schnittstelle CMOS
    Ansicht Richtung IPS
    Betriebstemperatur -30~85
    Lagertemperatur -30~85
    LED-Lebensdauer 70000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    5.7" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G057VN01 V220 5.7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G057VN01 V220?

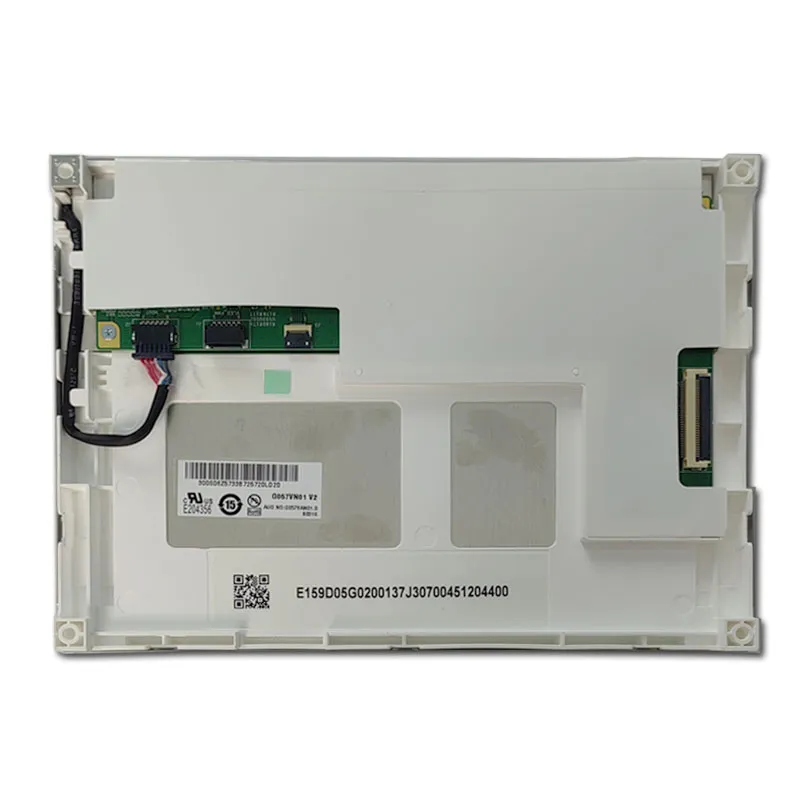

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5.7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing cable and controller with the AUO G057VN01 V220?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G057VN01 V220?

    Use 640 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G057VN01 V220 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G057VN01 V220

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~ 85℃

    Helligkeit (cd/m²):

    700

    Touchscreen-Unterstützung:

    Anzeige Typ:
